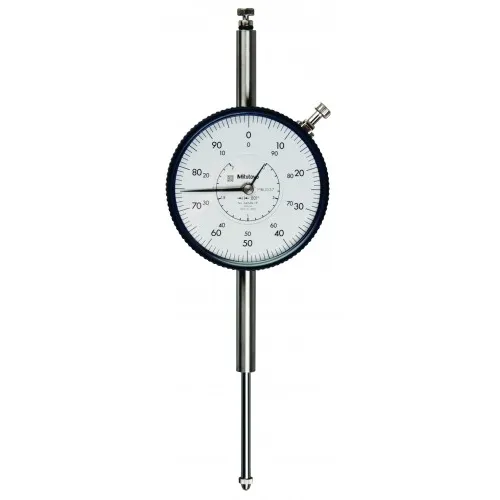

Mitutoyo 3424A-19 Series 3 Large Face Dial Indicator with Lug, 2", SAE

Part Number : 3424A-19

Brand :
Mitutoyo

This dial indicator has a large dial face. It comes with limit pins and an outer frame clamp.

View all

KWD 61.330

Quantity
Description
Specifications
Related products

Description

Mitutoyo 3424A-19 Offers?Easily monitor the readings of select pieces of Mitutoyo equipment (sold separately) with the Mitutoyo 3424S-19 Series 3 Large Face Dial Indicator with Lug. Measuring 3.07" (78 mm) in diameter, the dial allows for easy, error-free reading. Plus, this dial indicator comes with an outer frame clamp and limit pins for streamlined setup. Use it in a variety of applications. Conforms to ANSI and AGD standards. Lug type.FeaturesYields precise measurements to the nearest 0.001"Large, 3.07" (78 mm) diameter dial for easy readingStem diameter: 0.38" (9.7 mm)Durable construction stands up against extended useConforms to ANSI and AGD standardsComes with outer frame clamp and limit pins for added functionality4 to 48 UNF threadDesigned with lugForce: 3 N or less

Specifications

Supported Measurement Unit(s)
in
Measurement Range
2" per 0.1" revolution
Accuracy
0.001" first 2.5 revolutions; 0.003" overall
Dial Reading
±0 to 100
Dial Color
White
Graduation Measurements
Inches
Approvals
ANSI; AGD
Product Length
3.07" (78 mm) dial diameter
