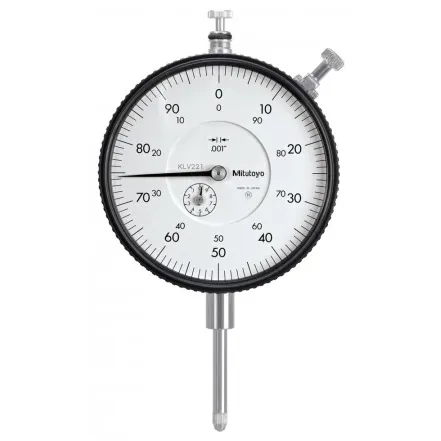

Mitutoyo 3416A Series 3 Large Face Dial Indicator, 0 to 1", imperial

Part Number : 3416A

Brand :
Mitutoyo

Accurate and easy-to-read, this dial indicator features a high-strength steel stem and spindle and a jeweled bearing for wear resistance and low friction movements. In addition, this indicator features imperial units and a measuring range of 0 to 1" for a wide range of applications.

View all

KWD 39.330

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 3416A OffersFeaturesOffered with lug back for mounting purposesBezel diameter: 3.07" (78 mm)Includes rotating bezelRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityThe crystal has a scratch and glare-resistant coating for clearer readings and better durabilityManufactured to meet ANSI/AGD standardsThe absence of a through screw hole helps protect the indicator against water and oil permeationThe outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of tools

Downloads

3416A.pdf

pdf
Download

Specifications

Range
0 to 1"
Units
Inches
Stem Diameter
⅜"
Thread Type
4 to 48 UNF
Graduation
0001"
Range Revolution
0.1"
Dial Reading
0 to 100±
Back Type
Lug back
Accuracy
±0.002" Revolution: ±0.001"
Measuring Force
1.8 N or less
ANSI/AGD Type
Yes
