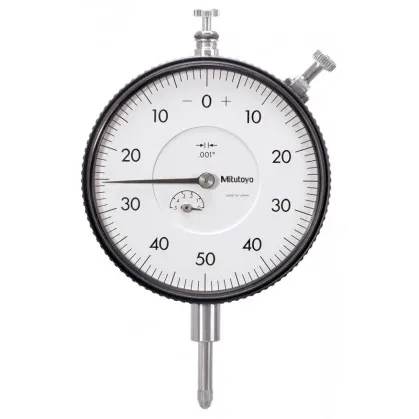

Mitutoyo 3415AB Series 3 Large Face Dial Indicator with flat back, 0 to 0.5", inch

Part Number : 3415AB

Brand :
Mitutoyo

Measure surface variations from 0 to 0.5", this dial indicator combines excellent accuracy and reliability with a large, easy-to-read dial face. In addition, the stem design provides a long clamping range for use in various applications, and the absence of a through screw hole helps protect against water and oil permeation.

View all

KWD 33.290

Quantity
Description
Specifications
Related products

Description

Mitutoyo 3415AB OffersFeaturesOffered with a flat back for mounting purposesThe bezel diameter is 3" (78 mm)A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeIncludes rotating bezelRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceThe contact point is carbide tipped for lasting accuracy, durabilityCrystal is glare-free with a scratch-resistant coatingManufactured to meet ANSI/AGD standardsApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Range
0 to 0.5"
Accuracy
±0.001"
Graduation
0.001"
Measuring Force
1.8 N or less
Revolution
Range: 0.1" Accuracy: ±0.001"
Dial Reading
50-0-50
Units
Inch
Thread Type
4-48 UNF
Back Type
Flat back
Stem Diameter
3/8" (9.5 mm)
Bezel Diameter
3" (78 mm)
