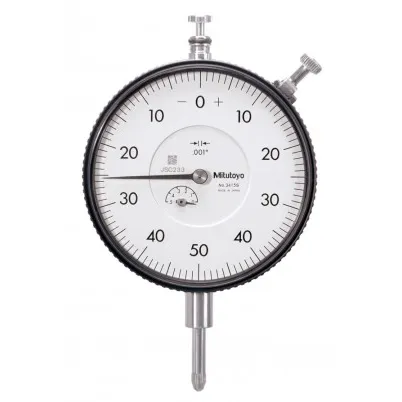

Mitutoyo 3415A Series 3 Large Face Dial Indicator with lug back, 0.5", ⅜"

Part Number : 3415A

Brand :
Mitutoyo

Measure surface variations with great accuracy displayed on an easy-to-read large dial face with this large face and long stroke dial indicator. In addition, this indicator offers excellent accuracy and reliability and features a lug back and a 0 to 0.5" range.

View all

KWD 34.660

Quantity
Description
Specifications
Related products

Description

Mitutoyo 3415A OffersWork with a long clamping range with this indicators stem design that suits many applications. In addition, this indicators crystal has a scratch and glare-resistant coating for clear readings and better durability.FeaturesLug back for mounting purposesA revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeUnique shock-proof mechanism which protects against shock from sudden spindle retractionRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityCrystal is glare-free with a scratch-resistant coatingManufactured to meet ANSI/AGD and ISO/JIS standardsThe absence of a through screw hole helps protect the indicator against water and oil permeationThe spindle and stem are constructed of hardened, high-strength steelApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Units
Inch
Range
0 to 0.5" Revolution: 0.1"
Graduation
0.001"
Thread Type
4-48 UNF
Dial Reading
0-50-0
Back Type
Lug back
Accuracy
±0.001"
Measuring Force
1.8 or lessN
Stem
0.375"/9.52 mm
Contact Point
Carbide tipped, thread: 4-48UNF
Technology
Mechanical
Weight
0.57 lbs (259 g)
