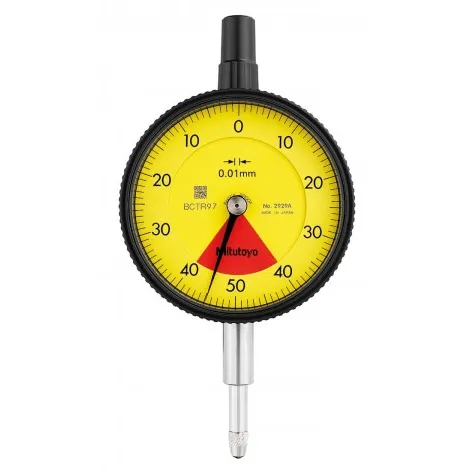

Mitutoyo 2929A Series 2 Metric Standard One-Revolution Dial Indicator with lug back, 0.8 mm

Part Number : 2929A

Brand :
Mitutoyo

Eliminate miscounting errors on an easy-to-read scale with this metric standard one-revolution dial indicator with a lug back that offers complete measurement with one hand sweep and features a 0 to 0.8 mm range. In addition, this indicator's stem and spindle are constructed of hardened steel for better durability.

View all
Quantity
Description
Specifications
Related products

Description

Mitutoyo 2929A OffersWork with trouble-free stem clamping and a long clamping range with this indicator's revolutionary offset spindle bushing design. In addition, this indicator is ideal for determining if a spindle range is within or outside a tolerance and has a glare-free crystal that features a scratch-resistant coating for clear readings and better durability.FeaturesLug back for mounting purposesUnique shock-proof mechanism protects against shock from sudden spindle retractionIncludes green limit markers for quick, easy tolerance judgmentsThumb screw bezel lock is easy-to-use for zeroingRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityIndicator has improved resistance to shop-floor contaminants such as water and dustIndicator is about 40% lighter than a conventional dial indicatorCrystal is glare-free with a scratch-resistant coatingManufactured to meet ISO/JIS standardsEliminate the possibility of reading errors due to miscounting multiple revolutionsApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Units
Metric
Digital/Analog
Analog
Range
0 to 0.8 mm
Graduation
0.01 mm
Spindle Stroke
1 mm
Dial Reading
40-0-40
Back Type
Lug back
Accuracy
±0.009 mm
Measuring Force
2.0 or lessN
MPE
Any 1/10 revolution: 5 μm Measuring range: 7 μm H (Hysteresis): 3 μm R (Repeatability): 3 μm
Stem
8 mm
Contact Point
Yes
Shockproof
Yes
ISO/JIS Type
Yes
Technology
Mechanical
Dimensions
4.42 x 1.5" (112.4 x 38.1 mm) Bezel diameter: 2.24" (57 mm)
Weight
0.32 lbs (145 g)
