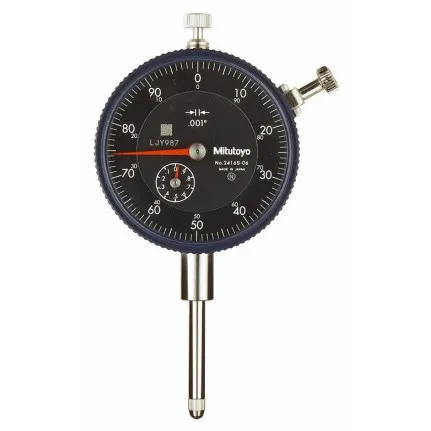

Mitutoyo 2416A Standard Type Dial Indicator, 0 to 1", lug back

Part Number : 2416A

Brand :
Mitutoyo

Offers simplicity, accuracy, and durability for any application, this dial indicator conforms to ANSI/AGD Standards and features a range of 0 to 1". In addition, the stem and spindle are made of hardened, high-strength steel, and the crystal has a scratch and glare-resistant coating for clearer readings and better durability.

View all

KWD 27.260

Quantity
Description
Specifications
Related products

Description

Mitutoyo 2416A OffersPerforms with excellent accuracy and reliability, this indicator is ideal for a wide range of applications. Features secured adhesion between the frame and crystal, along with an O-ring that protects it against water and oil permeation via the front face. Features A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range Unique shock-proof mechanism protects against shock from sudden spindle retraction Includes limit markers for quick, easy tolerance judgments Rack gear is machine ground for tighter fit, increased accuracy Greater rigidity in the bearing plate reduces retracing error by up to 20% 4-Screw mounting increases impact resistance for better, longer accuracy No through screw hole on the frame provides better dust resistance Contact point is carbide tipped for lasting accuracy, durability Crystal is glare-free with a scratch-resistant coating Manufactured to meet ANSI/AGD standards Applications General manufacturing Aerospace Automotive Defense Electronics Energy Plastics and rubber

Specifications

Range
0 to 1"
Graduation
0.001"
Revolution
Range: 0.1" Accuracy: ±0.001"
Accuracy
±0.002"
Measuring Force
1.8 N or less
Dial Reading
0 to 100
Back Type
Lug back
Units
Inch
Stem Diameter
0.375"
Conforms
ANSI/AGD Standards
