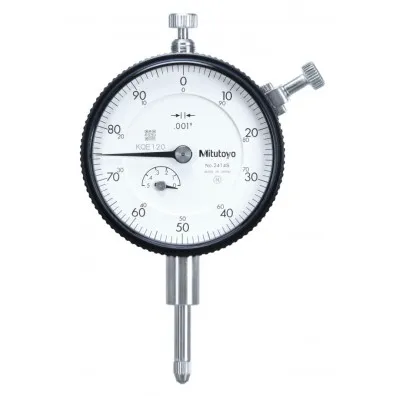

Mitutoyo 2414A Series 2 Inch Standard-Type Dial Indicator with lug back, 0.5", 0.001"

Part Number : 2414A

Brand :
Mitutoyo

Performs with simplicity, excellent accuracy, and reliability, this inch standard-type dial indicator with lug back features a 0.5" maximum range and 0.001" graduation. In addition, this indicator features a unique shock-proof mechanism that protects against shock from sudden spindle retraction.

View all

KWD 25.310

Quantity
Description
Specifications
Related products

Description

Mitutoyo 2414A OffersFeaturesOffered with lug back for mounting purposesA revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeUnique shock-proof mechanism protects against shock from sudden spindle retractionSecured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front faceRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%4-Screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityCrystal is glare-free with a scratch-resistant coatingManufactured to meet ANSI/AGD standardsNo through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetrationApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Units
Inch
Range
0 to 0.5" Revolution: 0.1"
Digital/Analog
Analog
Graduation
0.001"
Dial Reading
0 to 100
Back Type
Lug back
Accuracy
±0.001"
Measuring Force
1.8 or lessN
Error of Indication One Revolution
±0.001"
Type
ANSI/AGD standard
Stem
0.375"/9.52 mm
Contact Point
Carbide tipped, thread: 4-48UNF
Continuous Dial
Yes
Dimensions
4.05 x 1.44" (103 x 36.7 mm)
Weight
0.36 lbs (164 g)
