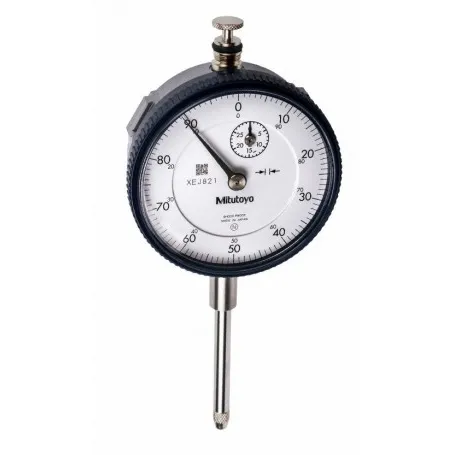

Mitutoyo 2109A-10 Series 2 Dial Indicator, 0 to 1 mm, metric

Part Number : 2109A-10

Brand :
Mitutoyo

Accurate and durable, this dial indicator features a high-strength steel stem and spindle and a jeweled bearing for wear resistance and low friction movements. In addition, this indicator features metric units and a measuring range of 0 to 1 mm for a wide range of applications.

View all

KWD 46.140

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 2109A-10 OffersFeaturesOffered with lug back for mounting purposesA revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeUnique shock-proof mechanism protects against shock from sudden spindle retractionRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityThe crystal has a scratch and glare-resistant coating for clearer readings and better durabilityThe outer clamp and optional lifting lever can be attached to either side and can be easily installed or removed without the use of toolsSecured adhesion between the frame and crystal, along with the use of an O-ring, protects the indicator against water and oil permeation via the front faceManufactured to meet ISO/JIS standards

Downloads

2109A-10.pdf

pdf
Download

Specifications

Range
0 to 1 mm
Units
Metric
Graduation
0.001 mm
Range Revolution
0.2 mm
Dial Reading
0 to 100 to 0
Accuracy
±0.005 mm
Back Type
Lug back
Measuring Force
1.5 N or less
Stem Diameter
8 mm
Shockproof
Yes
Jeweled Bearing
Yes
ISO/JIS Type
Yes
