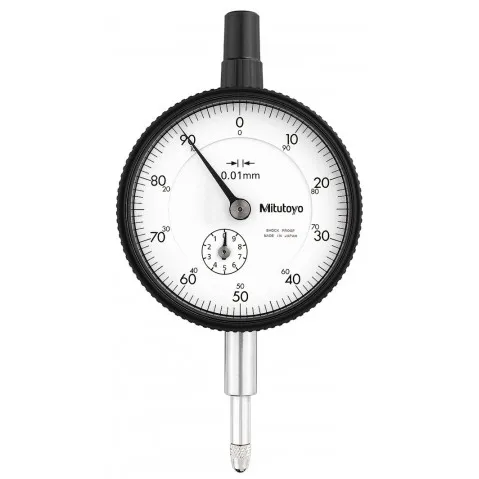

Mitutoyo 2056A-01 Series 2 Metric ANSI/AGD Type Dial Indicator with lug back, 25 mm, 0.01 mm

Part Number : 2056A-01

Brand :
Mitutoyo

Accurate and reliable, this indicator offers simplicity and durability for any application, conforms to ANSI/AGD standards, and features a maximum range of 25 mm. In addition, the stem and spindle are of hardened, high-strength steel, and the crystal has a scratch and glare-resistant coating for legable readings.

View all

KWD 36.950

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 2056A-01 OffersFeaturesA revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityCrystal is glare-free with a scratch-resistant coatingManufactured to meet ANSI/AGD standardsApplicationsGeneral manufacturingAerospaceAutomotiveDefenseElectronicsEnergyPlastics and rubber

Downloads

2056A-01.pdf

pdf
Download

Specifications

Range
0 to 25 mm
Accuracy
±0.025 mm
Graduation
0.01 mm
Revolution
Range: 1 mm Accuracy: 0.01 mm
Measuring Force
2.5 N or less
Dial Reading
0-100
Back Type
Lug back
Technology
Mechanical
Units
Metric
Conformity
Meets ANSI/AGD standards
Stem Diameter
Ø0.375" (Ø9.525 mm)
Dimensions
4.5 x 1.4 x Ø2.2" (114.9 x 36.7 x Ø57 mm)
