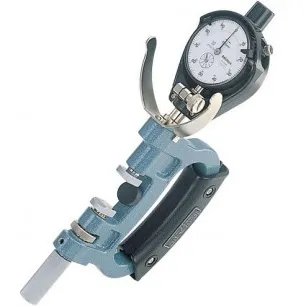

Mitutoyo 201-162 Snap Gauge, 0.0001" Dial, 11 to 12"

Part Number : 201-162

Brand :
Mitutoyo

This snap gauge has 2 chamfered anvil edges to make insertion easy. It's designed to provide rapid results.

View all

KWD 180.660

Quantity
Description
Specifications
Related products

Description

Mitutoyo 201-162 Offers?Use this Mitutoyo 201-162 Snap Gauge to keep machining processes running smoothly. It rapidly inspects cylinders and shafts, and it's easy to insert due to the chamfered front anvil edges.FeaturesQuickly judges the GO/NG of diameters of cylinders and shaftsWide, flat carbide anvil designChamfered anvil edges for easy insertionDial indicator includedApplications Machining Processes

Specifications

Range
11 to 12" (279.4 to 304.8 mm)
Anvil Retracting Stroke
0.078" (2 mm)
Anvil Positioning Range
1" (25 mm)
Anvil Flatness
0.00004" (1 μm)
Anvil Size
0.53 x 0.47" (13.5 x 12 mm)
Parallelism
0.00025" or less (6.35μm or less)
Measuring Force
15 N±3 N
Dial Indicator
0.0001" reading
