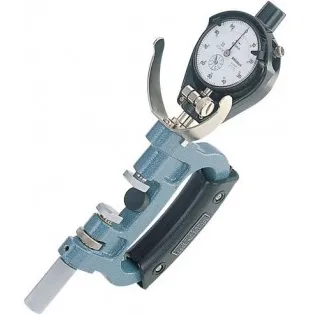

Mitutoyo 201-158 Snap Gauge, 0.0001" Dial, 7 to 8"

Part Number : 201-158

Brand :
Mitutoyo

This snap gauge has 2 chamfered anvil edges to make insertion easy. It's designed to provide rapid results.

View all

KWD 148.150

Quantity
Description
Specifications
Related products

Description

Mitutoyo 201-158 Offers?Use this Mitutoyo 201-158 Snap Gauge to keep machining processes running smoothly. It rapidly inspects cylinders and shafts, and it's easy to insert due to the chamfered front anvil edges.FeaturesQuickly judges the GO/NG of diameters of cylinders and shaftsWide, flat carbide anvil designChamfered anvil edges for easy insertionApplications Machining Processes

Specifications

Range
7 to 8" (177.8 to 203.2 mm)
Anvil Retracting Stroke
0.078" (2 mm)
Anvil Positioning Range
1" (25 mm)
Anvil Flatness
0.00004" (1 μm)
Anvil Size
0.53 x 0.47" (13.5 x 12 mm)
Parallelism
0.00025" or less (6.35μm or less)
Measuring Force
15 N±3 N
