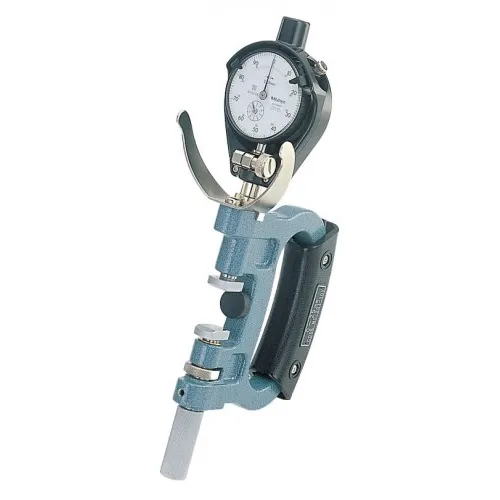

Mitutoyo 201-151 Dial Snap Gauge, 0 to 1"

Part Number : 201-151

Brand :
Mitutoyo

Perform quick Go/No-Go judgments of cylinder and shaft diameters during the machining process with this dial snap gauge that features a 0 to 1" range. In addition, this gauge's frame and spindle are made of hardened steel that resists flexing and temperature fluctuations for more accurate, repeatable results.

View all

KWD 99.290

Quantity
Description
Specifications
Downloads
Related products

Description

Mitutoyo 201-151 OffersFeaturesAnvil surfaces are made of carbide for better durabilityBoth front edges of anvil are chamfered for easy insertionFrame is powder coatedDesigned for quick go/no-go judgment of diameters of cylinders and shafts in machining processesThe hand grip allows for solid, secure handling of the gauge while in useApplicationsMachining process

Downloads

201-151.pdf

pdf
Download

Specifications

Unit
Inch
Range
0 to 1"
Parallelism
0.00025" or less
Anvil
Retracting stroke: 0.078" Positioning range: 1" Flatness: 0.00004"
Remarks
For indicator with 0.37" (9.52 mm) stem
Repeatability
2 μm
Flatness
1 μm
Measuring Face
Carbide-tipped, micro-lap finish 0.53 x 0.47" (13.5 x 12 mm)
Measuring Force
12 to 18 N
Stem Diameter
⅜" (9.52 mm)
Weight
1.5 lbs (680 g)
