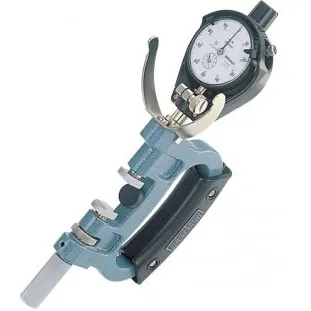

Mitutoyo 201-110 Snap Gauge, 0.001 mm Dial, 225 to 250 mm

Part Number : 201-110

Brand :
Mitutoyo

This snap gauge has 2 chamfered anvil edges to make insertion easy. It's designed to provide rapid results.

View all

KWD 160.620

Quantity
Description
Specifications
Related products

Description

Mitutoyo 201-110 Offers?Use this Mitutoyo 201-110 Dial Snap Gauge to keep machining processes running smoothly. It rapidly inspects cylinders and shafts, and it's easy to insert due to the chamfered front anvil edges.FeaturesQuickly judges the GO/NG of diameters of cylinders and shaftsWide, flat carbide anvil designChamfered anvil edges for easy insertionDial indicator includedApplications Machining Processes

Specifications

Range
8.86 to 9.84" (225 to 250 mm)
Anvil Retracting Stroke
0.078" (2 mm)
Anvil Positioning Range
1" (25 mm)
Anvil Flatness
0.00004" (1 μm)
Anvil Size
0.53 x 0.47" (13.5 x 12 mm)
Parallelism
0.0002" or less (5μm or less)
Measuring Force
15 N±3 N
Dial Indicator
0.001 mm reading
