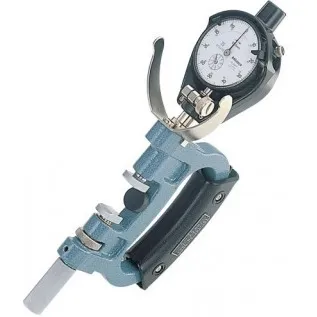

Mitutoyo 201-108 Snap Gauge, 0.001 mm Dial, 175 to 200 mm

Part Number : 201-108

Brand :
Mitutoyo

This snap gauge has 2 chamfered anvil edges to make insertion easy. It's designed to provide rapid results.

View all

KWD 143.870

Quantity
Description
Specifications
Related products

Description

Mitutoyo 201-108 Offers?Use this Mitutoyo 201-108 Snap Gauge to keep machining processes running smoothly. It rapidly inspects cylinders and shafts, and it's easy to insert due to the chamfered front anvil edges.FeaturesQuickly judges the GO/NG of diameters of cylinders and shaftsWide, flat carbide anvil designChamfered anvil edges for easy insertionDial indicator includedApplications Machining Processes

Specifications

Range
6.89 to 7.87" (175 to 200 mm)
Anvil Retracting Stroke
0.078" (2 mm)
Anvil Positioning Range
1" (25 mm)
Anvil Flatness
0.00004" (1 μm)
Anvil Size
0.53 x 0.47" (13.5 x 12 mm)
Parallelism
0.0002" or less (5μm or less)
Measuring Force
15 N±3 N
Dial Indicator
0.001 mm reading
