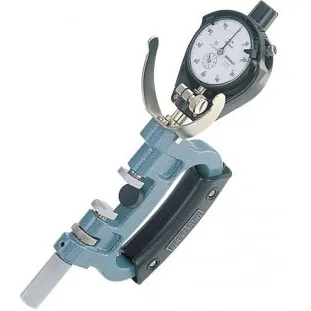

Mitutoyo 201-106 Snap Gauge, 0.001 mm Dial, 125 to 150 mm

Part Number : 201-106

Brand :
Mitutoyo

This snap gauge has 2 chamfered anvil edges to make insertion easy. It's designed to provide rapid results.

View all

KWD 131.020

Quantity
Description
Specifications
Related products

Description

Mitutoyo 201-106 Offers?Use this Mitutoyo 201-106 Snap Gauge to keep machining processes running smoothly. It rapidly inspects cylinders and shafts, and it's easy to insert due to the chamfered front anvil edges.FeaturesQuickly judges the GO/NG of diameters of cylinders and shaftsWide, flat carbide anvil designChamfered anvil edges for easy insertionDial indicator includedApplications Machining Processes

Specifications

Range
4.92 to 5.9" (125 to 150 mm)
Anvil Retracting Stroke
0.078" (2 mm)
Anvil Positioning Range
1" (25 mm)
Anvil Flatness
0.00004" (1 μm)
Anvil Size
0.53 x 0.47" (13.5 x 12 mm)
Parallelism
0.0002" or less (5μm or less)
Measuring Force
15 N±3 N
Dial Indicator
0.001 mm reading
