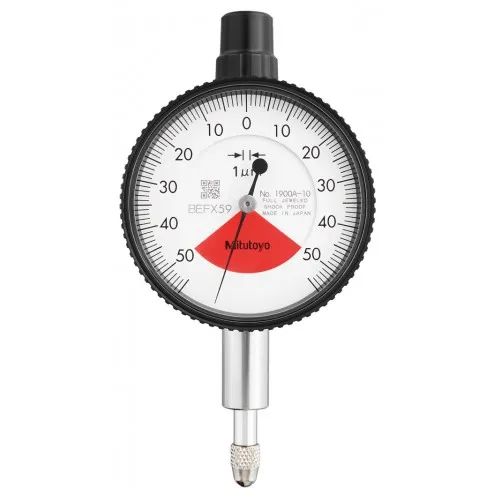

Mitutoyo 1900A-10 Series 1 Compact One Revolution Dial Indicator with lug back, 0 to 0.1 mm, metric

Part Number : 1900A-10

Brand :
Mitutoyo

Conforming to ISO/JIS standards, this compact, single-revolution dial indicator features a measurement range of 0 to 0.1 mm and complete measurement with the sweep of the hand, eliminating miscounting errors. In addition, this dial indicator is ideal for determining if a spindle range is within or outside a tolerance.

View all

KWD 41.080

Quantity
Description
Specifications
Related products

Description

Mitutoyo 1900A-10 OffersFeaturesOffered with a lug back for mounting purposesThe unique shock-proof mechanism protects against shock from sudden spindle retractionThe thumb screw bezel lock is easy-to-use for zeroingRack gear is machine ground for a tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceThe contact point is carbide tipped for lasting accuracy, durabilityThe indicator is anti-magnetic for better accuracy around metalsThe glare-free crystal has a scratch-resistant coating for clearer readings and better durabilityThe compact design allows for use in tighter, restricted spacesThe jeweled bearing provides great wear resistance and low friction movements for smooth, precise operationsA revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping rangeManufactured to meet ISO/JIS standardsApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Range
0 to 0.1 mm
Accuracy
±0.005 mm
Graduation
0.001 mm
Measuring Force
1.5 N or less
Spindle Stroke
0.14 mm
Dial Reading
50-0-50
Units
Metric
Thread Type
M2.5 x 0.45
Back Type
Lug back
Jeweled Bearing
Yes
Shockproof
Yes
Stem Diameter
8 mm
