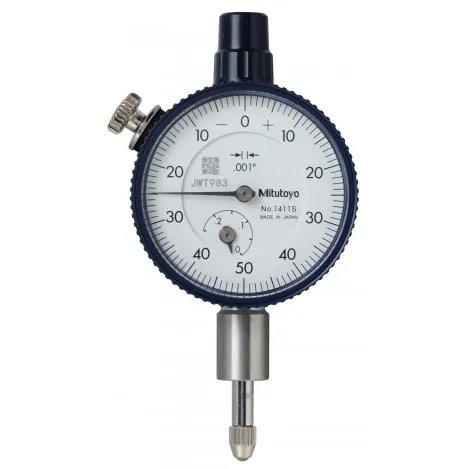

Mitutoyo 1411A Series 1 Dial Indicator with lug back, 0.25", 0.001"

Part Number : 1411A

Brand :
Mitutoyo

Ideal for comparison measurement on applications with limited space, this compact, multi-revolution dial indicator features a lug back, a 0 to 0.25" range, and a 0.001" graduation. In addition, this indicator has a jeweled bearing that provides wear resistance and low-friction movements for smooth and precise operations.

View all

KWD 26.670

Quantity
Description
Specifications
Related products

Description

Mitutoyo 1411A OffersFor better durability, this dial indicator's stem and spdingle are constructted of hardened steel. Work with clear readings and better durability with this indicator's glare-free crystal with a scratch-resistant coating. In addition, this indicator features a revolutionary offset spindle bushing design for trouble-free stem clamping with a long clamping range.FeaturesFlat back for mounting purposesThumb screw bezel lock is easy-to-use for zeroingRack gear is machine ground for tighter fit, increased accuracyGreater rigidity in the bearing plate reduces retracing error by up to 20%Four-screw mounting increases impact resistance for better, longer accuracyNo through screw hole on the frame provides better dust resistanceContact point is carbide tipped for lasting accuracy, durabilityThe indicator is anti-magnetic for better accuracy around metalsCrystal is glare-free with a scratch-resistant coatingManufactured to meet ANSI/AGD standardsIdeal for use in applications where space is limitedApplicationsAerospaceAutomotiveDefenseElectronicsEnergyGeneral manufacturingPlastics and rubber

Specifications

Units
Inch
Range
0 to 0.25" Revolution: 0.1"
Graduation
0.001"
Dial Reading
0-50-0
Back Type
Lug back
Accuracy Revolution
±0.001"
Measuring Force
1.4 or lessN
ANSI/AGD Type
Yes
Stem
0.375"/9.52 mm
Contact Point
Carbide tipped, thread: 4-48UNF
Balanced and Continuous Dial
Yes
Technology
Mechanical
Dimensions
3.15 x 1.32" (80.1 X 33.5 mm) Stem diameter: 0.375" (9.52 mm)
Weight
0.2 lbs (90 g)
