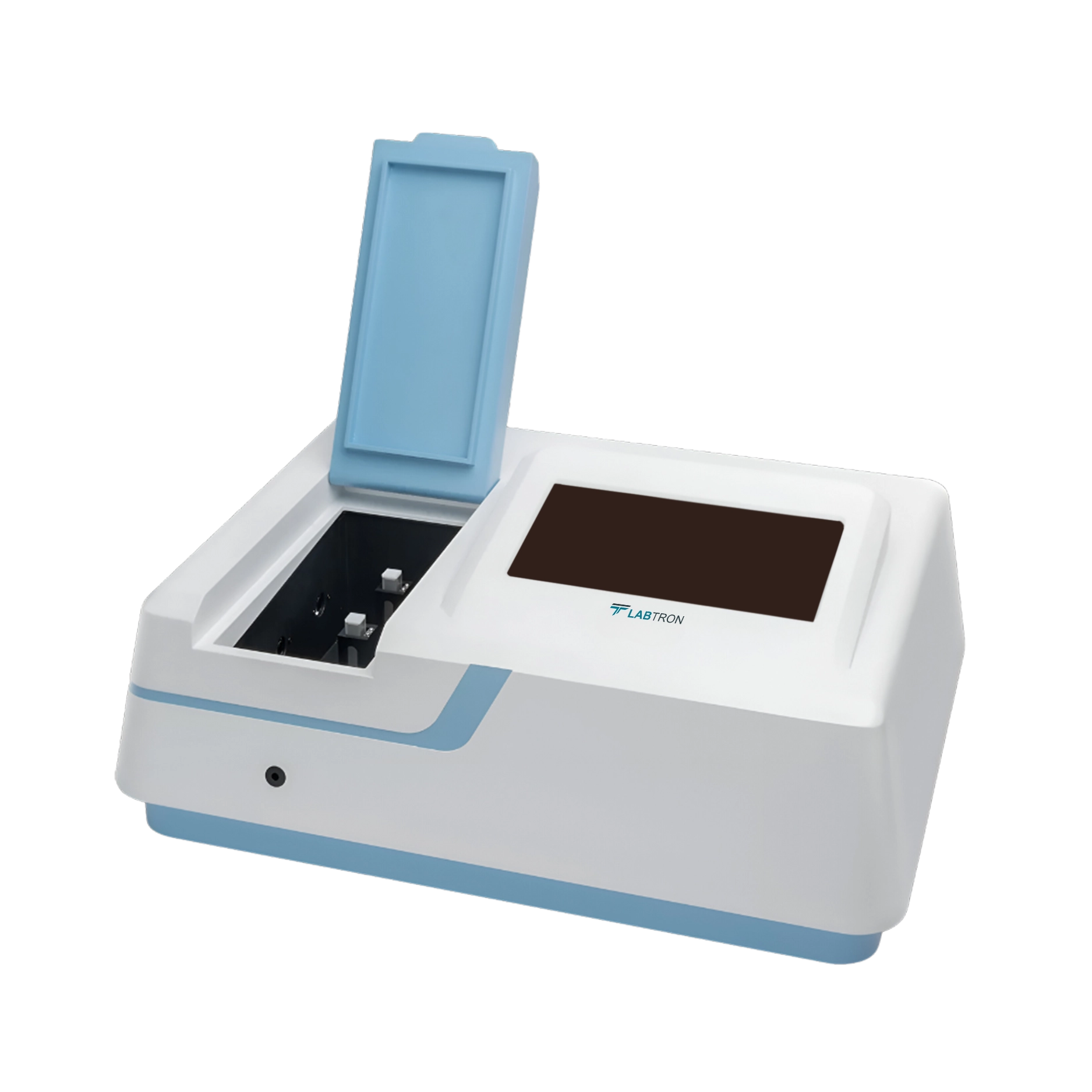

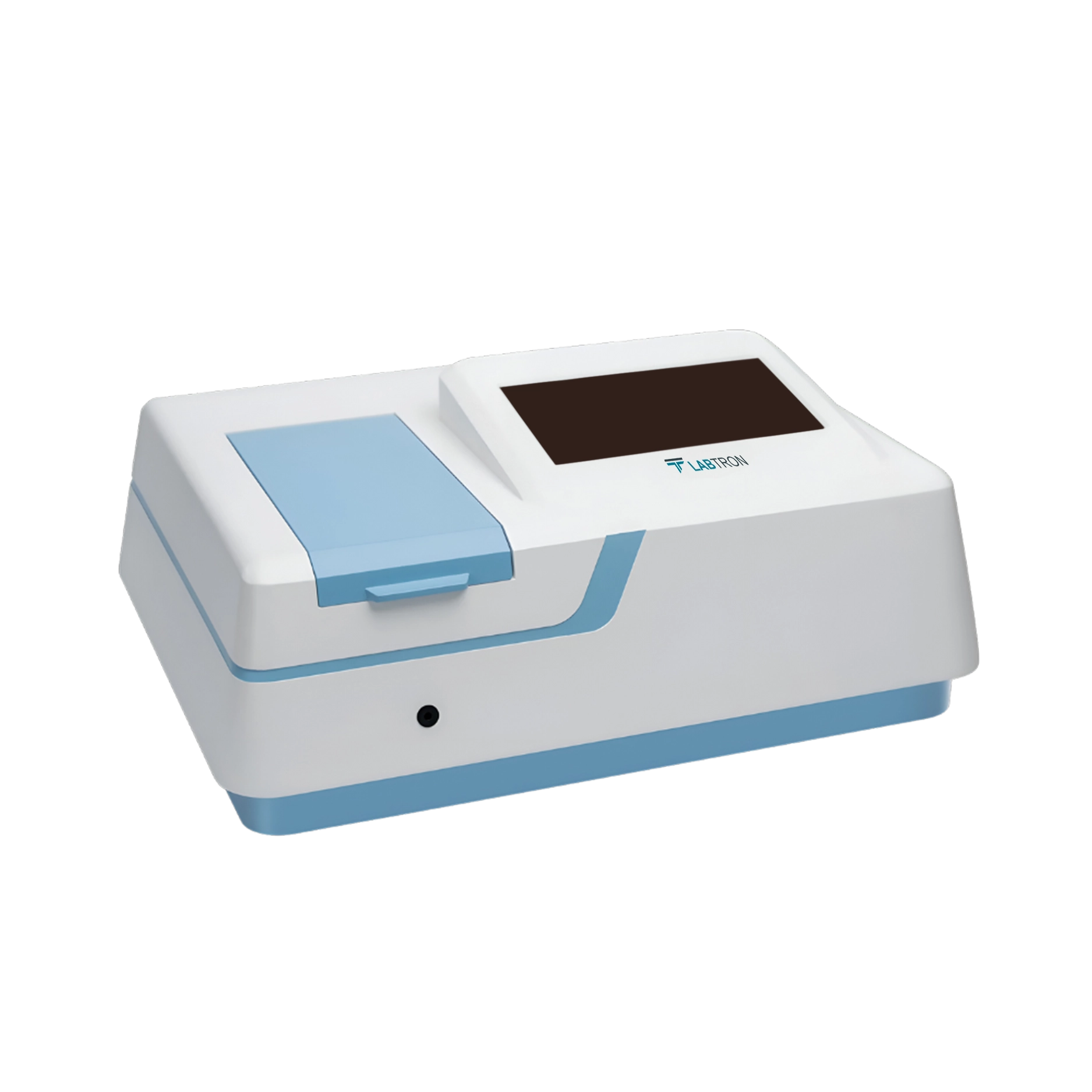

Labtron Double Beam UV-Vis Spectrophotometer with 190–1100 nm Range, 10.1" Display, Deuterium & Tungsten Lamps, Silicon Photodiode Detector, USB/RS232 Output, AC 220V/110V, LUS-B30

Part Number : LUS-B30

Brand :
Labtron

Labtron Double Beam UV-Visible Spectrophotometer LUS-B30 equipped with 190 to1100 nm wavelength range for precise spectral analysis across multiple applications. Its advanced digital display enhances real-time data monitoring and simplifies user operation efficiently. Integrate photometric linearity correction ensures reliable absorption measurement with minimal deviation. The sophisticated scanning mode provides rapid full-spectrum analysis with high-speed data acquisition. Optimizes light path that minimizes reflection losses and enhances detection sensitivity.

View all

KWD 2,360.000

Quantity
Description
Specifications
Downloads
Related products

Description

The LUS-B30 Double Beam UV-Vis Spectrophotometer from Labtron UK is a high-performance optical analysis instrument designed for precise and reliable measurements across a broad spectral range of 190–1100 nm. Featuring a 2 nm spectral bandwidth and ±0.1 nm wavelength accuracy, this spectrophotometer is ideal for a wide range of laboratory applications. It comes equipped with a 10.1" high-resolution display, advanced Deuterium and Tungsten lamps, and a Silicon Photodiode detector, ensuring stable and accurate readings. The instrument supports USB/RS232 output for seamless data transfer and includes a manual 4-cell holder (10 mm) for flexible sample handling. Designed for convenience and compatibility, it operates with AC 220V/110V, making it suitable for diverse lab environments. The LUS-B30 is the perfect solution for qualitative and quantitative analysis in research, clinical, pharmaceutical, and industrial laboratories.

Key Features

• Advanced optical detection technology

• User-friendly touch screen interface

• Fast and accurate measurements

• High-resolution spectral data output

• Automatic wavelength calibration function

Application

Our Dual Beam UV-Visible Spectrophotometer LUS-B30 ensures precise absorbance measurement, spectral scanning, and quantitative analysis, making it ideal for biochemistry, pharmaceuticals, material science, and environmental research applications.

Downloads

LUS-B30 Datasheet.pdf

pdf
Download

LUS-B30 Manual.pdf

pdf
Download

Specifications

Optical System
Double Beam, Grating 1200 lines/mm
Wavelength Range
190nm to 1100 nm
Spectral bandwidth
2 nm
Wavelength Accuracy
± 0.1 nm at 656.1 nm, ± 0.3 nm at all
Wavelength Repeatability
Less than or equal to 0.1 nm
Photometric Accuracy
0.2%T (0 to 100%T), ±0.002A (0 to 0.5A), ±0.004A (0.5 to 1A)
Photometric Repeatability
Less than or equal to 0.15%T (0 to 100%T), 0.001A (0 to 0.5A), 0.002A (0.5 to 1A)
Photometric Range
0 to 200%T, -0.3 to 3.4A, 0 to 9999C (0 to 9999F)
Stray Light
Less than or equal to 0.03%T at 220 nm, 360 nm
Stability
±0.0003A/h at 500 nm
Baseline Flatness
±0.001A
Noise
0.0005A at 500 nm
Work Mode
T, A, C, E
Scanning Speed
Hi, Med, Low (Max 3000 nm/min)
Wavelength Setting
Auto
Display
10.1 inch
Light source
Imported Deuterium & Tungsten lamp
Detector
Imported Silicon Photodiode
Cuvette Holder
10 mm manual 4-cell holder
Output
USB drive, USB host, RS232
Power Supply
AC 220V/50Hz or AC 110V/60Hz
Dimension (W×D×H)
810mm × 660mm × 390mm
Gross Weight
27 kg
