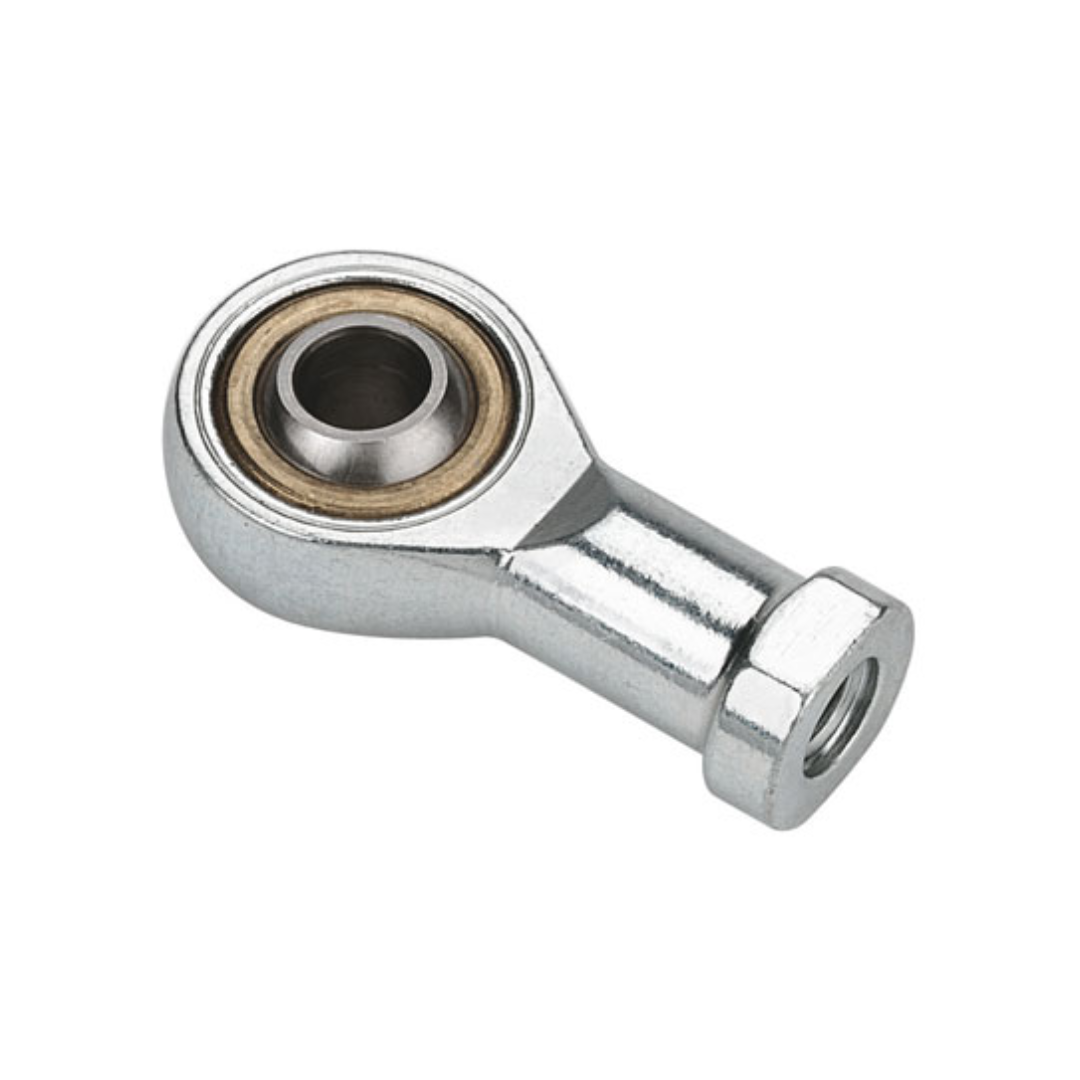

IMI Norgren UF Universal Piston Rod Eye Mounting For Cylinder with 50 mm/63 mm Bore, complying with DIN ISO 8139, Female Threaded made with Stainless Steel, KQM/8050/32

Part Number : KQM/8050/32

Brand :
IMI Norgren

Robust and standardized UF piston rod eye for pneumatic cylinders with 50 mm or 63 mm bore. Ensures secure alignment and mounting of cylinder rods, complying with DIN ISO 8139.

View all

KWD 37.400

Quantity
Description
Specifications
Downloads
Related products

Description

The IMI Norgren UF Universal Piston Rod Eye is a precision-engineered mounting accessory designed for pneumatic cylinders with 50 mm and 63 mm bores. Manufactured according to DIN ISO 8139 standards, it serves as a reliable fixing element that ensures the correct alignment of the piston rod with the cylinder housing. It plays a crucial role in mechanical assemblies by absorbing lateral forces and reducing misalignment. Made from high-quality materials, it is durable and ideal for industrial pneumatic applications where stability and alignment are essential. This component is part of a wide range of pneumatic accessories that enhance the efficiency and performance of cylinder systems.

Downloads

Datasheet IMI Norgen KQM-8050-32.pdf

pdf
Download

Specifications

Compatible Bore
50 mm / 63 mm
Thread (KK)
M16 x 1.5
Dimensions(LxBxH)
64 mm × 30 mm × 21 mm
Weight
0.33 kg
Standard
Meet the requirements of an ISO or DIN Standard
DIN ISO 8139
