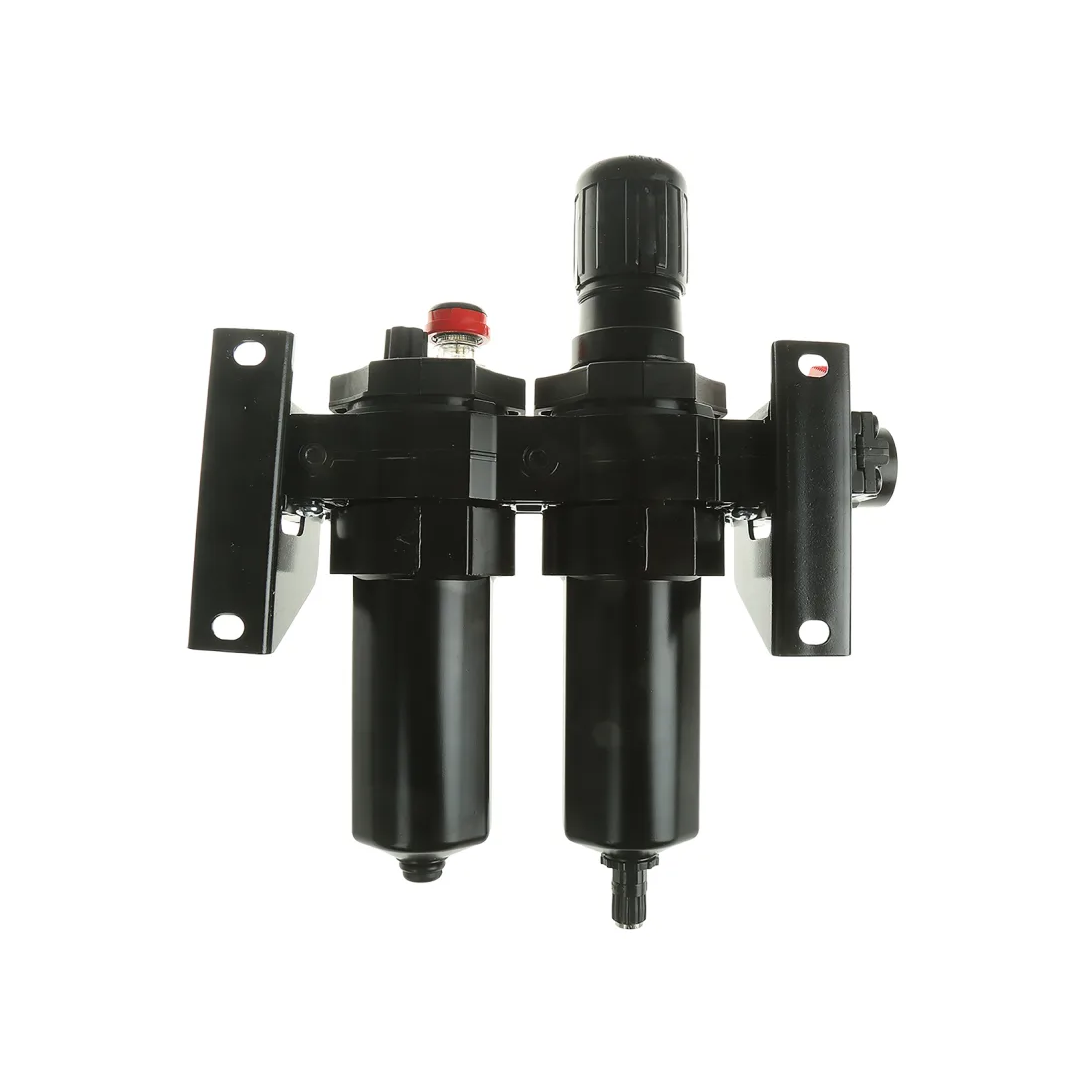

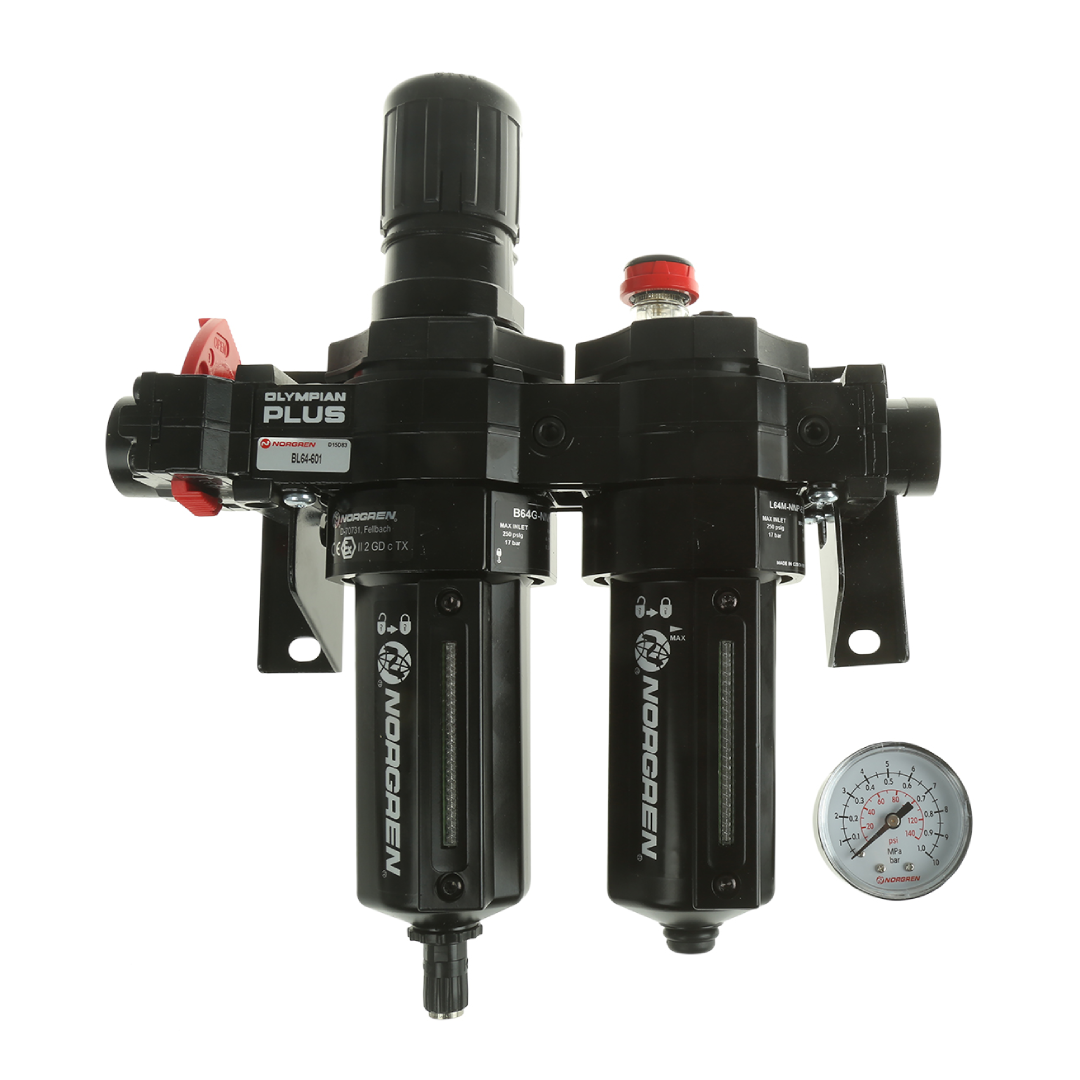

IMI Norgren Olympian Plus Filter Regulator Lubricator (FRL) Combination Air Processing Unit, G 3/4" Connection, Automatic drain, 40µm filter element with shut-off valve, pressure gauge and bracket, BL64-601

Part Number : BL64-601

Brand :
IMI Norgren

The IMI Norgren BL64-601 is a ready-to-install FRL unit with a G3/4 port, automatic drain, shut-off valve, and micro fog lubricator, ideal for efficient air processing in pneumatic systems. BL64 series filter, regulator and lubricator from Norgren, fitted with quick-release bayonet bowls, making the device easy to maintain. This Olympian design combination is ready to install into your pneumatic installations, eliminating the need for interconnecting unions and pipes as it is fully assembled and ready to fit.

View all

KWD 130.000

Quantity
Description
Specifications
Downloads
Related products

Description

The IMI Norgren BL64-601 model is a part of the BL64 series filter, regulator, and lubricator units, designed to provide reliable air processing in industrial pneumatic systems. This pre-assembled unit is engineered for quick and easy installation, featuring a G3/4 port size and bracket mounting for added convenience. It incorporates a high-performance 40µm polypropylene filter element and a micro fog lubricator with a 0.2-litre bowl, ensuring optimal air quality and effective lubrication. The BL64-601 comes with an automatic drain and includes a shut-off valve to enhance operational safety and ease of maintenance. Operating with a compressed air medium, it supports a pressure range of 0.3 to 10 bar, making it suitable for various industrial applications. The inclusion of quick-release bayonet bowls further simplifies maintenance, while the Olympian design eliminates the need for additional interconnecting unions or piping.

Key Features

• Complete air processing units that are pre-assembled and ready to install straight from the box

• The regulator has a micro fog lubricator to ensure the best lubrication

• 40m Polypropylene filter element

• Complete with gauge and brackets

• Manual or automatic drain

• The lubricator has a 0.2 litre bowl size

• Compressed air medium

• G3/4 port size

• Automatic drain

• Bracket mounting

• The model comes with a shut-off valve

• Pressure range of 0.3 - 10 bar

Downloads

Technical Data BL64 Series FRL.pdf

pdf
Download

Specifications

Medium
Compressed Air only
Element
40 μm
Bowl size (lubricator)
0.2 litre (7 fluid oz)
Body Material
Zinc Alloy
Maximum operating pressure:
17 bar (246 psi)
Drain
Automatic
Ambient temperature
-20° to +80°C
Pressure Range
0.3 - 10 bar
Port Size
G 3/4
Gauge ports
Rc 1/8
Relieving
Standard
Lubricator
Micro Fog
