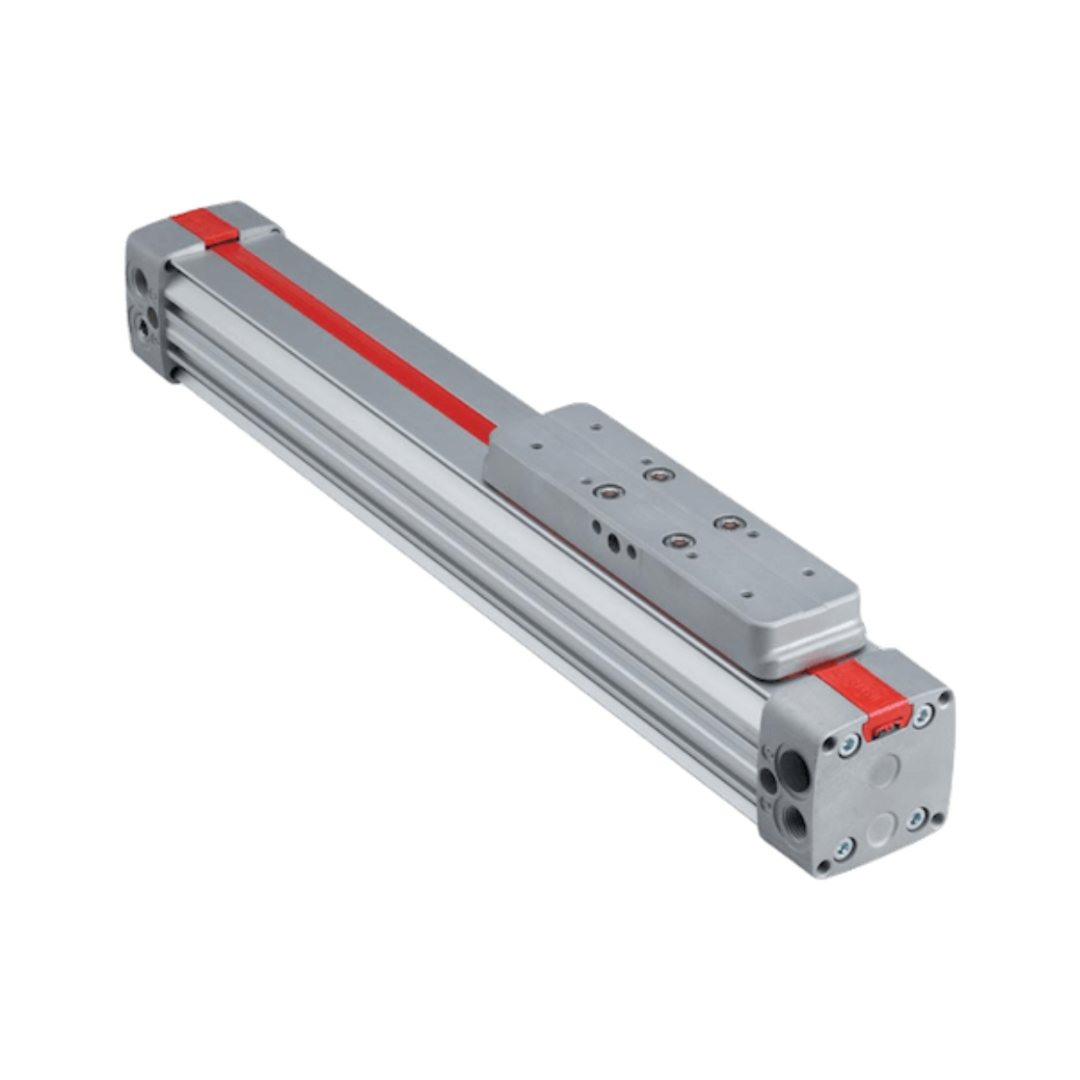

IMI Norgren Lintra Plus Series Rodless Pneumatic Cylinder, 63 mm bore, 4250 mm Stroke Length, Magnetically Coupled, Internal Guide, M/146063/M/4250

Part Number : M/146063/M/4250

Brand :
IMI Norgren

Rodless pneumatic cylinder with 63 mm bore and extended 4250 mm stroke, magnetically coupled and internally guided, for robust and flexible industrial applications.

View all

KWD 7,938.600


Quantity



Description
Specifications
Downloads
Related products

Description

This IMI Norgren Lintra Plus rodless pneumatic cylinder offers an extended stroke of 4250 mm with a 63 mm bore and an internal guide for precise motion control. The cylinder is magnetically coupled and operates with double-acting functionality, featuring adjustable cushioning and compatibility with compressed air systems. With a durable anodized aluminum barrel and high sealing efficiency using NBR and polyurethane components, this unit is designed for long-lasting, high-performance use in industrial automation environments.

Key Features

• Extended 4250 mm stroke for long-range applications

• 63 mm bore with magnetic coupling for smooth linear motion

• Internal guide and double-acting operation

• Adjustable cushioning and universal mounting grooves

• Durable anodized aluminum barrel construction

•Proven patented sealing system with dust protection

• Lightweight and corrosion-resistant design

Applications

• Industrial automation systems

• Packaging machinery

• Material handling units

• Long-stroke positioning applications

• OEM equipment with high linear motion demand

Downloads

Datasheet Lintra Rodless Cylinder.pdf

pdf

Brochure Lintra Rodlesss Cylinders.pdf

pdf

Specifications

Medium
Compressed air
Operating Temperature
-30 to 80 °C
Operating pressure
1 to 8 bar (15 to 116 psi)
Port Size
G1/2
Cylinder Diameter
63 mm
Stroke Length
4250 mm
Operation
The operating principle of the solenoid valve.
Double acting
Cushioning
Adjustable cushioning
Guiding System
Internal
Magnetic/Non-magnetic
Magnetic
Theoretical Force
1870 N
Materials - Barrel
Anodised aluminium
Materials - Piston Head Seals
Polyurethane
Materials - Seals
NBR
Dimensions - Height
105 mm
