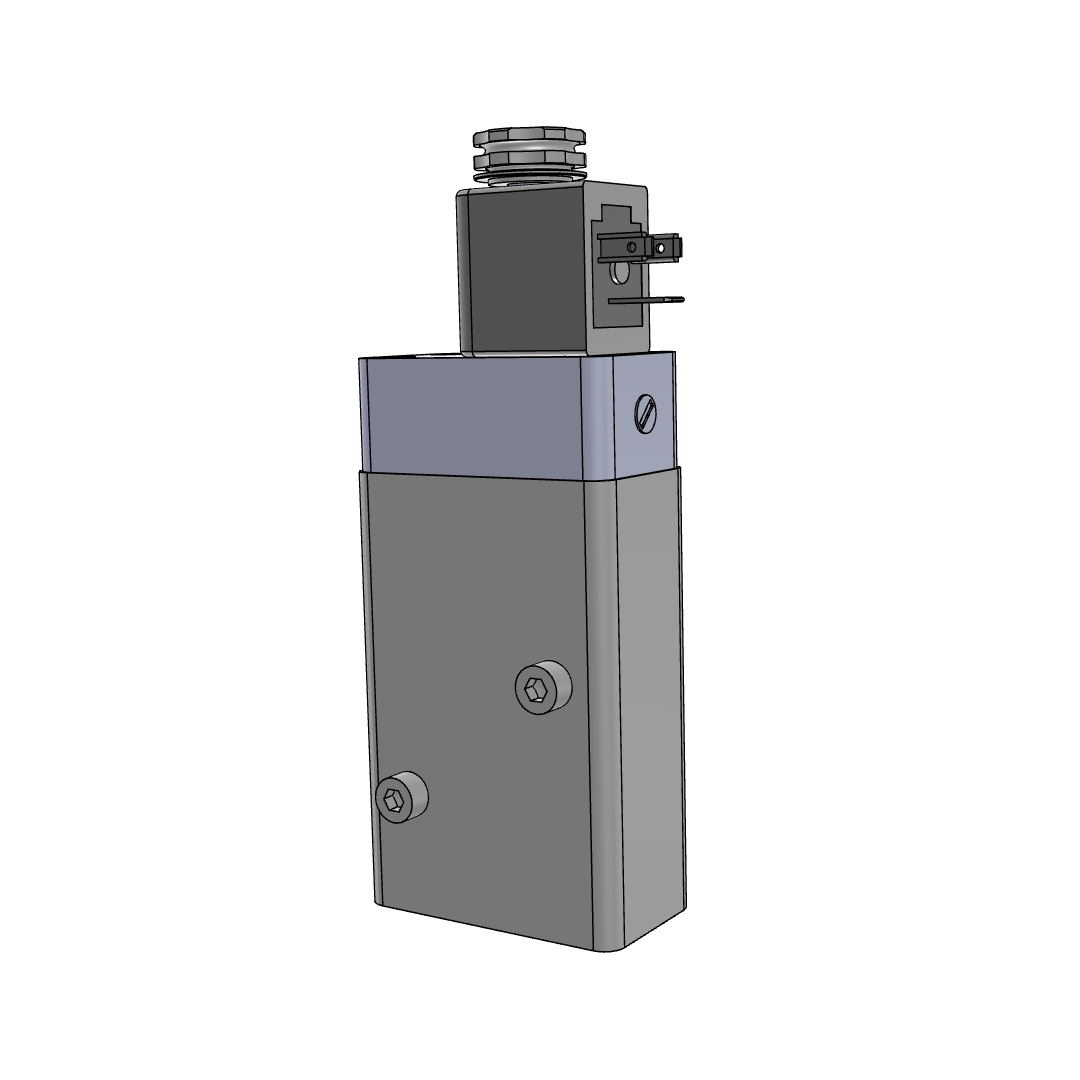

IMI Norgren 2623 Series Namur Interface Solenoid Valve, Port G1/4, Operation 5/2, Solenoid pilot / Air spring return, 2623077000000000

Part Number : 2623077000000000

Brand :
IMI Norgren

Compact and efficient, the 2623 Series Namur Interface Solenoid Valve offers a 5/2-way operation with solenoid pilot and air spring return, ensuring reliable control of pneumatic actuators. Designed with a robust aluminum body, it delivers high flow performance and long service life in demanding applications.

View all

KWD 60.000

Quantity
Description
Specifications
Downloads
Related products

Description

The 2623 Series Namur Interface Solenoid Valve by IMI Norgren is engineered for precision and durability in pneumatic automation systems. Featuring a 5/2-way function that can be converted to a 3/2-way, this indirect solenoid actuated spool valve is ideal for single or double-acting actuators. With a compact G1/4” NAMUR port configuration, it ensures seamless mounting and integration. Built with an aluminum body and NBR seals, it handles operating pressures from 2 to 8 bar and ambient temperatures ranging from -10°C to +50°C, making it suitable for harsh industrial environments. The T-spool design with soft sealing supports minimal leakage and low maintenance, while the interchangeable solenoid system—including Ex approved coils—enhances flexibility and safety. Delivering a flow coefficient (Kv) of 1.2 and a nominal orifice size of 6 mm, this valve is optimized for high flow rate applications where performance and reliability matter most.

Features

• High flow rate

• Simple T - spool design with soft sealing

• Highly reliable, long life, low maintenance

• Easily interchangeable solenoid system including Ex approved coils

Downloads

Datasheet IMI-2623077.pdf

pdf
Download

Specifications

Series
2623 NAMUR Valves
Medium
Compressed air
Operating Temperature
-10°C to +50°C
Operating pressure
2 to 8 bar (29 to 116 psi)
Port Size
G1/4 (NAMUR interface)
Actuation
Solenoid pilot / Air spring return
Valve Operation
5/2-way (Convertible to 3/2-way)
Flow
1325 l/min, 47 scfm
Nominal Orifice Size
6 mm
Flow Coefficient (Kv)
1.2
Materials - Body
Aluminium
Materials - Seals
NBR
Materials - Seat Seal
NBR
Certification - IP Rating
IP65 with connector (excluded)
Mounting position
Optional (preferably solenoid on top)
Dimensions - Height
30 mm
Dimensions - Length
143.5 mm
Dimensions - Width
55 mm
Weight
0.55 kg
