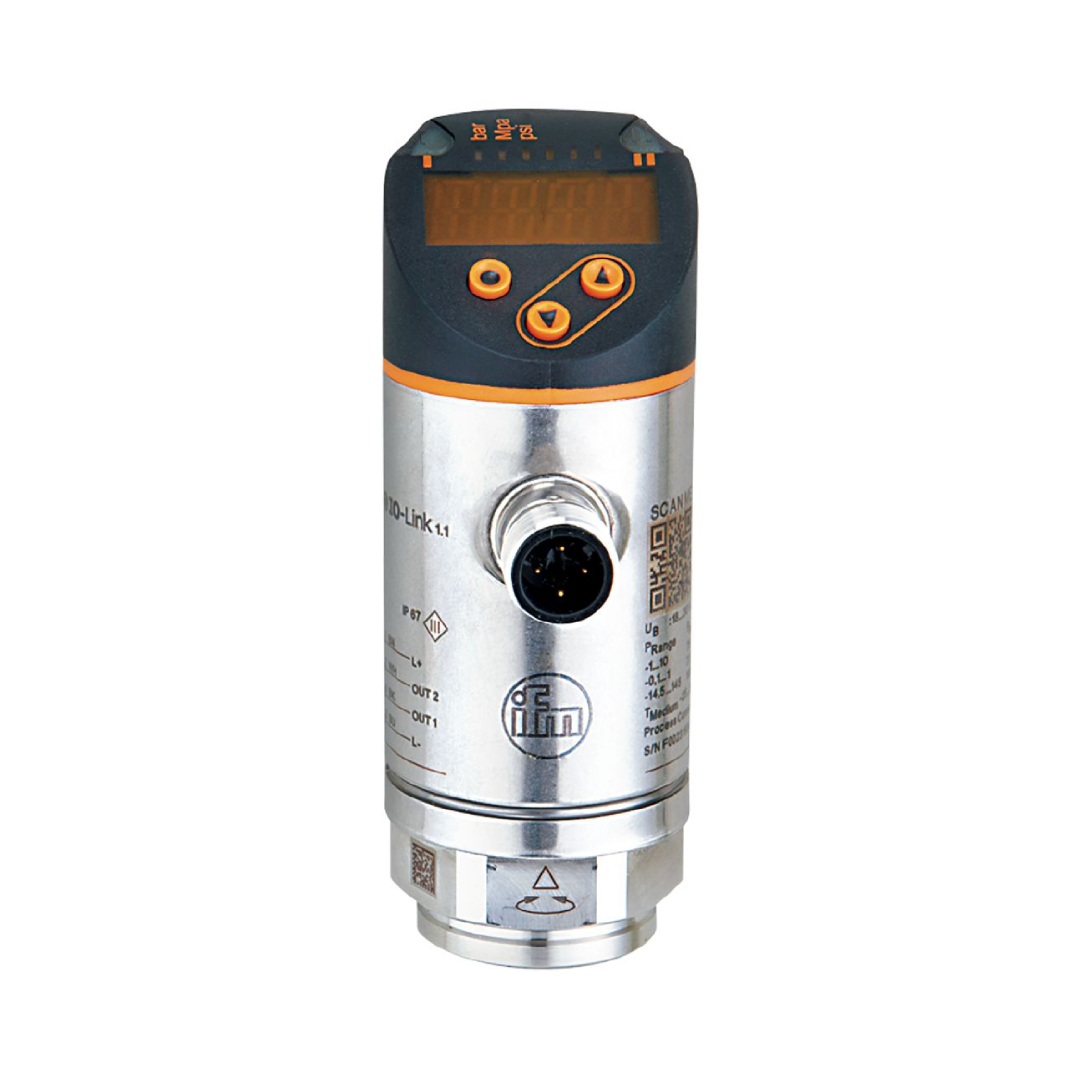

IFM Electronic Pressure Sensor with Digital Display, 0…100 Bar/0…1450 psi, G 1/4" Threaded Connection, Two Switching Signal PNP/NPN Output, IO-Link, Operating Voltage 18...30 DC, M12 Connector, 3-Wire, Gold-plated contacts, PN7092

Part Number : PN7092

Brand :
IFM Electronic

IFM electronic pressure sensor PN7092 is a robust and compact sensor with a red/green alphanumeric display, IO-Link communication, and two configurable switching outputs. It is engineered for harsh industrial environments and features a rotatable G 1/4" internal thread connection.

The PN7092 is an upgraded and enhanced replacement for the model PN5002.

View all

KWD 55.300

Quantity
Description
Specifications
Downloads
Related products

Description

The IFM PN7092 pressure sensor is a highly reliable and efficient electronic pressure monitoring device designed for demanding industrial applications. Equipped with a bright 4-digit alphanumeric red/green display, this sensor enables instant visual identification of the acceptable pressure range. It features two programmable switching outputs, one of which supports IO-Link communication for smart diagnostics and parameter setting. With a measuring range of 0–100 bar (0–1450 psi), and support for multiple units (bar, psi, MPa), it ensures high versatility in monitoring. The device’s rugged construction using stainless steel and PBT materials, along with ceramic and FKM for wetted parts, ensures high durability. Its M12 connector, IP-rated body, and rotatable process connection make installation flexible and straightforward. Operating reliably at extreme temperatures (-25 to 80°C), the PN7092 is ideal for long-term, high-accuracy pressure monitoring in critical systems.

Key Features

• Two switching outputs, one of them with IO-Link communication interface

• Red/green display for clear identification of the acceptable range

• The process connection can be rotated for optimum alignment

• With long-term stability thanks to high overload protection

• Robust design for use in harsh industrial environments

Applications

• Hydraulic and pneumatic systems

• Machine tools and CNC equipment

• Process automation lines

• Cooling and lubrication systems

• Packaging and filling machines

• Water and wastewater treatment

• Food and beverage processing

• Harsh industrial environments

Downloads

IFM Datasheet PN7092.pdf

pdf
Download

Operating instructions Electronic pressure sensor PN7xxx.pdf

pdf
Download

Specifications

Number of Digital Outputs
2
Measuring range
0...100 bar / 0...1450 psi / 0...10 MPa
Process Connection
threaded connection G 1/4 internal thread
System
gold-plated contacts
Measuring element
ceramic-capacitive pressure measuring cell
Application
for industrial applications
Media
Liquids
Medium Temperature
-25...80 °C
Min. Bursting Pressure
650 bar / 9400 psi / 65 MPa
Pressure rating
300 bar / 4350 psi / 30 MPa
Vacuum resistance
-1000 mbar / -0.1 MPa
Type of pressure
relative pressure
Operating Voltage
18...30 V DC (to SELV/PELV)
Current Consumption
< 35 mA
Min. Insulation Resistance
100 MΩ / 500 V DC
Protection Class
III
Reverse polarity protection
Yes
Power-on Delay Time
< 0.3 s
Integrated watchdog
Yes
Output Signal
switching signal / IO-Link (configurable)
Electrical design
PNP/NPN
Output Function
normally open / closed (configurable)
Max. Voltage Drop Switching Output DC
2.5 V
Permanent Current Rating of Switching Output DC
150 mA / 200 mA (-60 to +60°C) / 250 mA (-40°C)
Switching Frequency DC
< 170 Hz
Short-circuit protection
Yes
Overload Protection
Yes
Accuracy
Switch point accuracy < ±0.5 % of the span
Repeatability
< ±0.1 % (with temp. fluctuations < 10 K)
Long-Term Stability
< ±0.05 % (per 6 months)
Hysteresis Deviation
< ±0.25 %
Temperature Coefficient
< ±0.2 % of the span / 10 K (-0...80 °C)
Response Time
< 3 ms
Delay time programmable
0...50 s
Communication Interface
IO-Link
IO-Link Revision
1.1
Process data analog
1
Min. Process Cycle Time
2.3 ms
Protection
IP 65 / IP 67
Shock resistance
50 g (11 ms)
Vibration resistance
20 g (10...2000 Hz)
MTTF
260 years
Weight
272 g
Dimensions
Ø 34 mm / L = 90.7 mm
Housing material
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
Wetted parts material
stainless steel (1.4404 / 316L); ceramics; FKM
Display
3 x LED (bar, psi, MPa); 2 x LED (switching status); red/green alphanumeric 4-digit display
