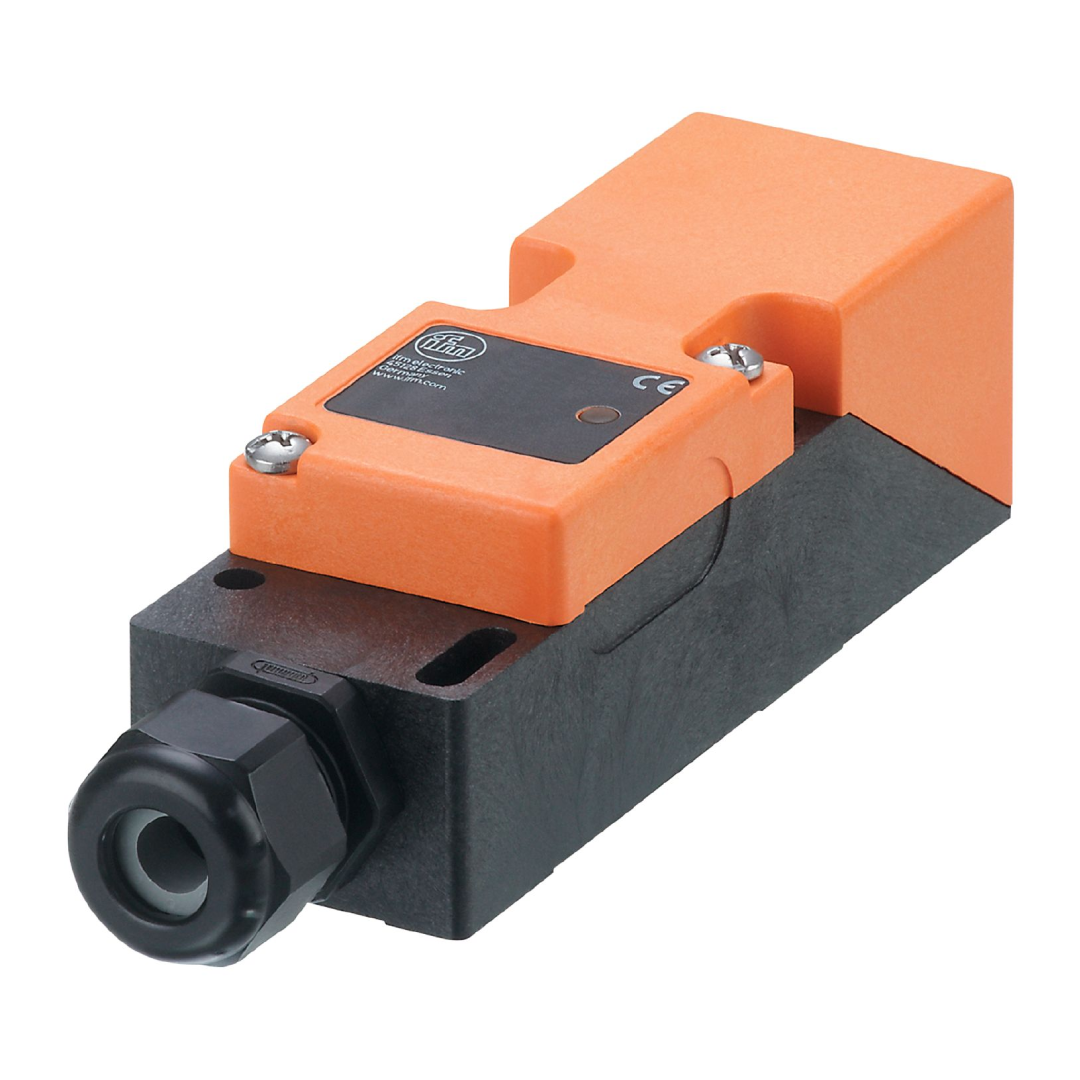

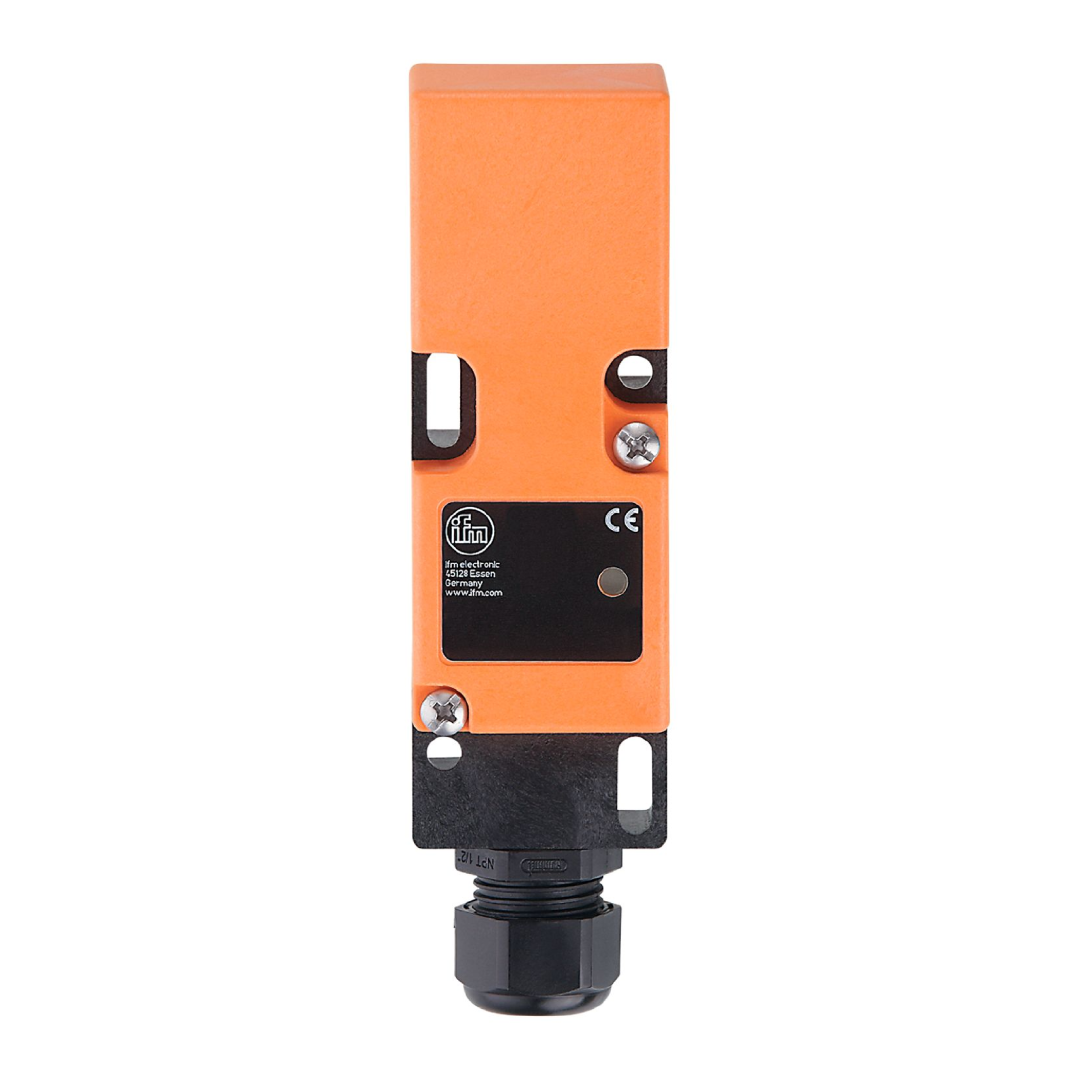

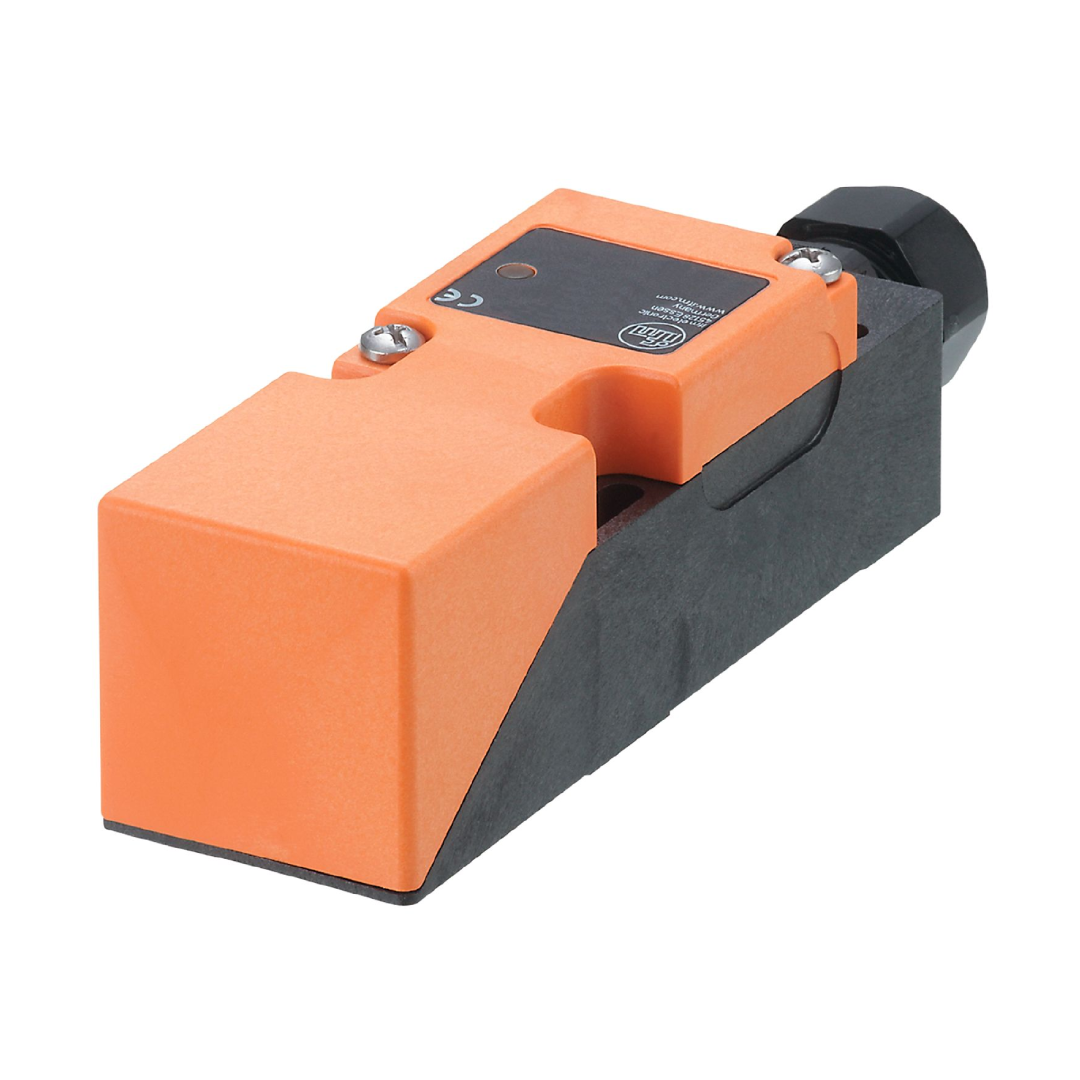

IFM Electronic Inductive Rectangular Proximity Sensor, 15 mm Detection, Normally Opened / Normally Closed, Operating Voltage 10 - 36 DC, IM5020 (IME3015BFPKG)

Part Number : IM5020 (IME3015BFPKG)

Brand :
IFM Electronic

The IFM IM5020 inductive sensor is designed for precision and durability in industrial environments. Its long sensing range, rugged housing, and programmable output make it ideal for conveying applications where reliability is key.

View all

KWD 25.500

Quantity
Description
Specifications
Downloads
Related products

Description

The IFM IM5020 (IME3015BFPKG) is a rectangular inductive sensor engineered for high-performance sensing in demanding industrial conditions. Operating with a supply voltage of 10–36 V DC, this sensor is perfectly suited for integration with mechanical limit switches, offering a seamless retrofit or upgrade path. Built for durability, the IM5020 features a rugged housing optimized for harsh environments, and its flush-mountable design ensures secure and space-saving installation. It delivers a 15 mm sensing range, making it ideal for proximity detection in conveying and automation systems. The sensor allows for programmable output functions (normally open or normally closed) via a simple wire bridge, adding flexibility to your setup. Additionally, a clearly visible switching status indicator enhances user convenience and operational transparency.

Features

• Long sensing range for use in conveying

• Output function normally open / normally closed programmable

• Robust housing for use in harsh industrial environments

• Clearly visible indication of the switching status

Downloads

Datasheet IM5020.pdf

pdf
Download

Installation Instructions IM5020.pdf

pdf
Download

Specifications

Electrical design
  • PNP
  • PNP
Output Function
  • normally open / normally closed; (selectable)
  • normally open / normally closed; (selectable)
Sensing range[mm]
  • 15
  • 15
Housing
  • rectangular
  • rectangular
Dimensions[mm]
  • 40 x 40 x 120
  • 40 x 40 x 120
Operating voltage[V]
10...36 DC
Current consumption[mA]
15; (24 V)
Protection Class
II
Reverse polarity protection
yes
Max. voltage drop switching output DC[V]
2.5
Permanent current rating of switching output DC[mA]
250
Switching frequency DC[Hz]
250
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload Protection
yes
Real sensing range Sr[mm]
15 ± 10 %
Operating distance[mm]
0...12.1
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Hysteresis[% of Sr]
1...15
Switch point drift[% of Sr]
-10...10
Ambient temperature[°C]
-25...80
Protection
IP 65
EMC
EN 61000-4-2 ESD 4 kV CDEN 61000-4-3 HF radiated 3 V/mEN 61000-4-4 Burst 2 kVEN 61000-4-6 HF conducted 3 VEN 55011 class B
MTTF[years]
2234
UL approval
Ta 0...40 °CEnclosure type Type 1File number UL E174191
Weight[g]
191
Mounting
flush mountable
Materials
PPE
Display
switching status 1 x LED, yellow
Pack quantity
1 pcs.
Connection
terminals: ...2.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5
