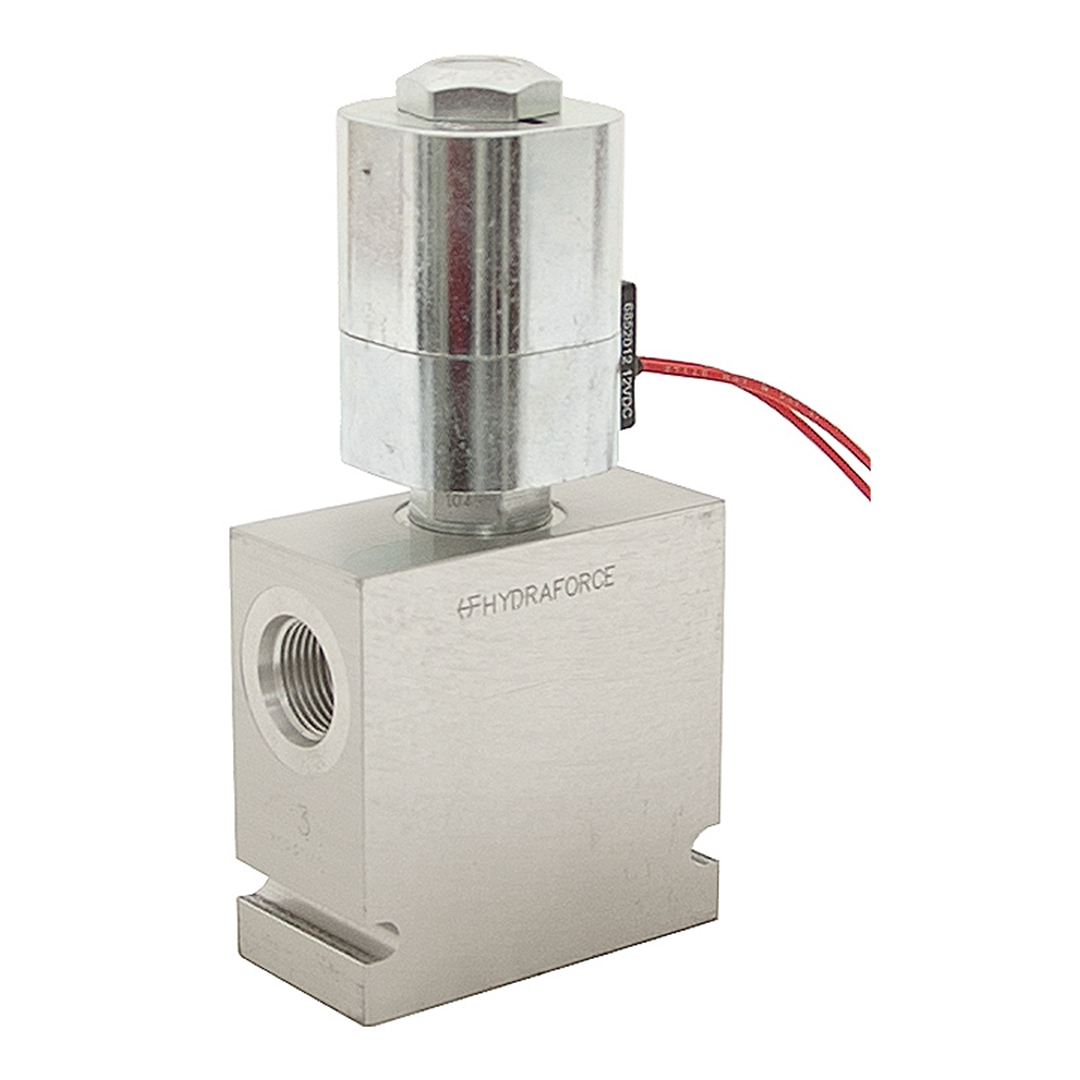

Hydraforce Solenoid Operated Selector Valve, Cartridge, 3 Way, SAE 12 Ports, 15 GPM Flow, 3500 PSI Pressure, 12V DC Coil, SV12-34-0-N-00, 7022340, 6852012

Part Number : SV12-34-0-N-00, 7022340, 6852012

Brand :
Hydraforce

HydraForce SV12-34-0-N-00 Solenoid Operated Selector Valve with Cartridge, SAE 12 Ports, 15 GPM Flow, 3500 PSI Pressure, 12V DC Coil

View all

KWD 115.000

Quantity
Description
Specifications
Downloads
Related products

Description

The HydraForce SV12-34-0-N-00 Solenoid Selector Valve features the spool-type cartridge, designed for high-performance hydraulic control applications. It is mounted in a SAE 12 body and operates with a 12V DC coil (6852012), enabling reliable control of flow direction between three ports. The valve provides 15 GPM flow capacity and handles pressures up to 3500 PSI. When de-energized, flow occurs between ports 2 and 3 while port 1 is blocked; when energized, the spool shifts allowing flow between ports 1 and 2. Engineered for industrial and mobile equipment, it delivers efficient, dependable operation in demanding environments.

Key Features

• 3-way spool-type hydraulic cartridge design

• Handles up to 15 GPM flow and 3500 PSI pressure

• Equipped with 12V DC coil

• Compact screw-in mounting with SAE-12 body

• Fail-safe operation based on solenoid state

• Durable build with reliable performance

• Defined torque limits for secure installation

Applications

• Mobile and industrial hydraulic equipment

• Agricultural and construction machinery

• Hydraulic manifolds and circuit switching

• Test stands and OEM system integration

• Utility vehicles with hydraulic controls

Downloads

Datasheet SV12-34.pdf

pdf
Download

Specifications

Cartridge Model
SV12-34-0-N-00
Body Model
7022340 (SAE 12 Ports)
Coil Model
6852012 (12V DC, Wire Lead)
Flow Capacity
15 GPM (57 LPM)
Operating pressure
3500 PSI (240 bar)
Voltage & Current
12V DC, 2.8 A
Function
The circuit function of a solenoid valve specifies how fluid will flow between the valve's ports when it is energized de-energized.
De-energized: Flow from port 2 to 3, port 1 blocked; Energized: Flow from port 1 to 2, port 3 blocked
Mounting Type
Screw-in Cartridge in SAE 12 Body
Torque Ratings
Body: 55 ft-lbs (74.5 Nm); Coil Nut: 10 ft-lbs (13.5 Nm)
