Hanna Instruments Multiparameter pH/ORP/DO/Pressure/Temperature Waterproof Meter, HI98196

Part Number : HI98196

Brand :
Hanna Instruments

The HI98196 is a waterproof portable logging multiparameter meter that monitors up to 7 different water quality parameters including 5 measured and 2 calculated. The microprocessor based multi-sensor probe allows for the measurement of key parameters including pH, ORP, dissolved oxygen, and temperature. The probe transmits readings digitally to the meter, where data points can be displayed and logged. The use of digital communication allows for noise free transfer of data for up to 100 meters in cable length. The complete system is simple to setup and easy to use.

View all

KWD 651.000

Quantity
Description
Specifications
Downloads
Related products

Description

The HI98196 Multiparameter Waterproof Meter by Hanna Instruments is a specialized device for aquatic and environmental monitoring. It offers accurate measurement of pH, ORP, dissolved oxygen, and temperature, making it indispensable for professionals in aquaculture, wastewater treatment, and environmental research. The advanced multi-sensor probe provides simultaneous readings with high precision, while the rugged design ensures performance in harsh field conditions. Its backlit LCD and user-friendly interface simplify operation, even in challenging environments. This meter also features comprehensive data logging for efficient management of water quality data.

Features

• Multi-Parameter Display • Multi-sensor Probe • USB Connection

Probe Details

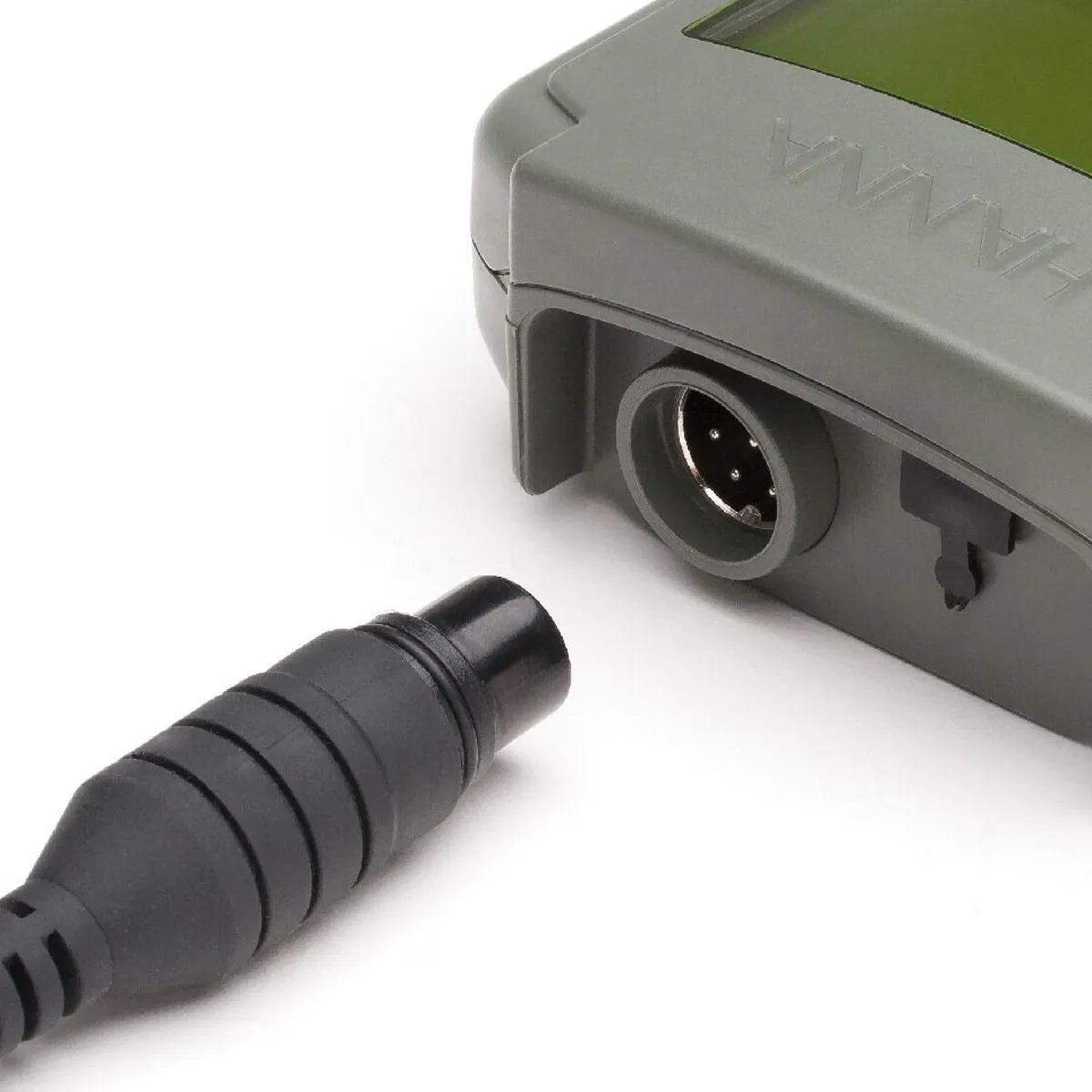

The HI7698196 is a multiparameter pH/EC/Temperature probe for use with the HI98196 portable meter. It features a quick connect that makes a waterproof connection with the meter. Sensors are automatically recognized by the probe and meter when connected. Any ports not used on the probe will not have the parameter displayed on the meter. Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor identification. The probe features a multistrand-multiconductor shielded cable with 4m, 10m, 20m, and 40m lengths available. It’s rugged, waterproof design makes it ideal for field use.

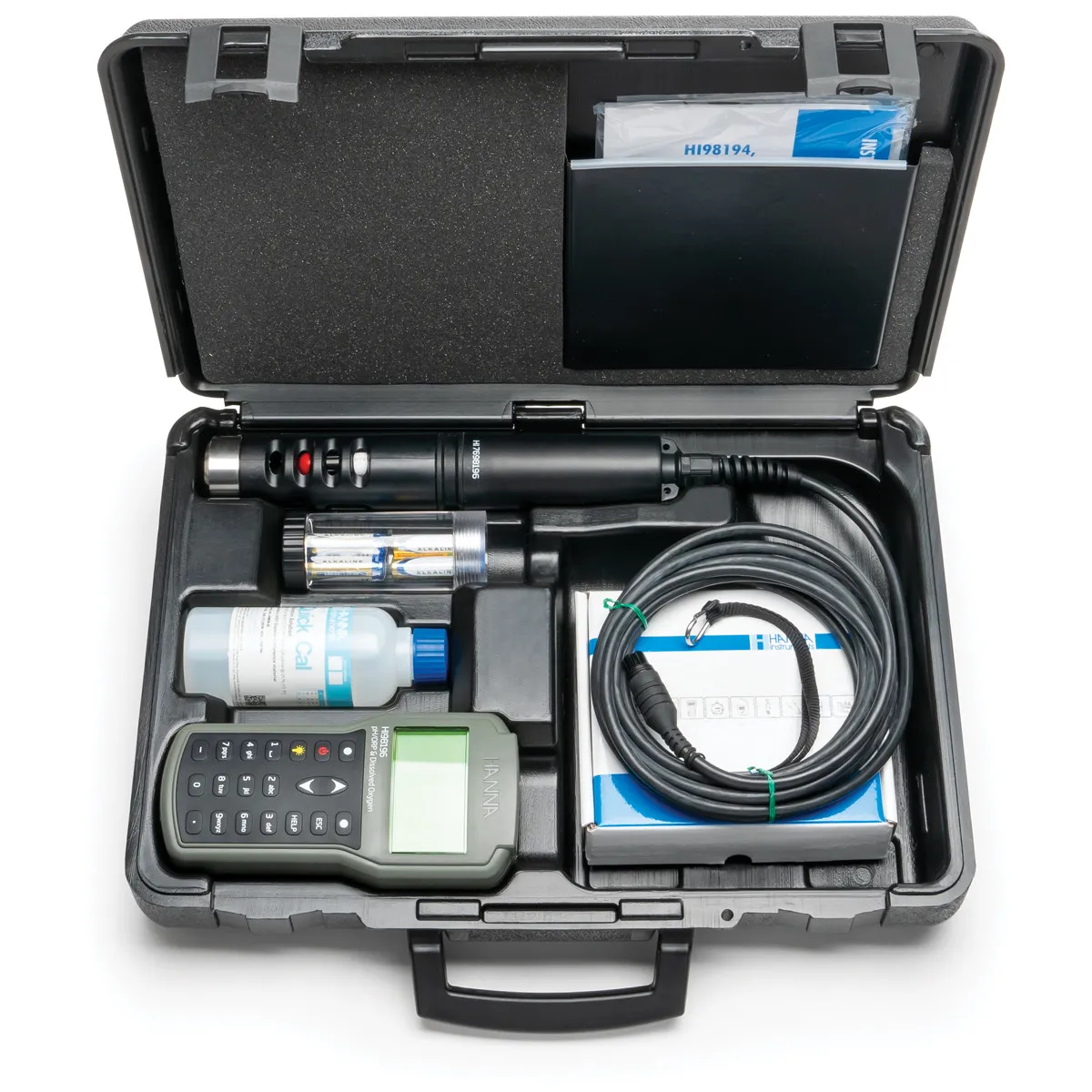

Rugged Carrying Case

The HI98196 meter, probe, and all accessories are supplied in a rugged carrying case designed to provide years of use. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components.

Downloads

MAN98194_05_19_crop.pdf

pdf
Download

Specifications

SKU
HI98196
pH Range
0.00 to 14.00 pH
pH Resolution
0.01 pH
pH Accuracy @ 25°C / 77°F
± 0.02 pH
pH Calibration
automatic one, two, or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer
mV Range
± 600.0 mV
mV Resolution
0.1 mV
mV Accuracy
± 0.5 mV
ORP Range
± 2000.0 mV
ORP Resolution
0.1 mV
ORP Accuracy (@25°C/77°F)
± 1.0 mV
ORP Calibration
automatic at one custom point (relative mV)
Temperature Range
-5.00 to 55.00 °C; 23.00 to 131.00 °F; 268.15 to 328.15 K
Temperature Resolution
0.01 °C; 0.01 °F; 0.01 K
Temperature Accuracy @ 25°C / 77°F
± 0.15 °C; ± 0.27 °F; ±0.15 K
Temperature Calibration
automatic at one custom point
Do Range
0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L)
DO Resolution
0.1%; 0.01 ppm (mg/L)
DO Accuracy (@25°C/77°F)
0.0 to 300.0% saturation: ±1.5% of reading or ±1.0% saturation whichever is greater, 0.00 to 30.00 ppm (mg/L): ±1.5% of reading or ±0.10 ppm (mg/L), whichever is greater, 30.00 ppm (mg/L) to 50.00 ppm (mg/L): ±3% of reading, 300.0 to 500.0% saturation: ±3% of reading
DO Calibration
automatic one or two point at 100% saturation (8.26 mg/L) and 0% saturation (0 mg/L).
Temperature Compensation
automatic from -5 to 55 °C (23 to 131 °F)
Connectivity
USB to PC with HI9298194 Hanna software installed
GLP
Yes
Power Supply
1.5V AA batteries (4)
Power Consumption
approximately 360 hours of continuous use without backlight (50 hours with backlight)
Environment
0 to 50°C (32 to 122°F); RH 100% (IP67)
Dimensions
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight
400 g (14.2 oz.)
Ordering Information
HI98196 is supplied with HI7698196 probe, HI7698194-1 pH/ORP sensor, HI7698194-2 DO sensor, HI 76981942 Probe maintenance kit (HI 7042S DO electrolyte solution, DO membrane caps (5), O-rings for sensors (5), syringe with grease to lubricate the O-rings), HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate, and rugged carrying case with custom thermoformed insert.
Warranty
2 years
Recommended Probe
HI7698196 probe, HI7698194-1 pH/ORP sensor, HI7698194-2 DO sensor
