Hanna Instruments Multiparameter pH/EC/TDS/Salinity/DO/Pressure/ Temperature Waterproof Meter, HI98194

Part Number : HI98194

Brand :
Hanna Instruments

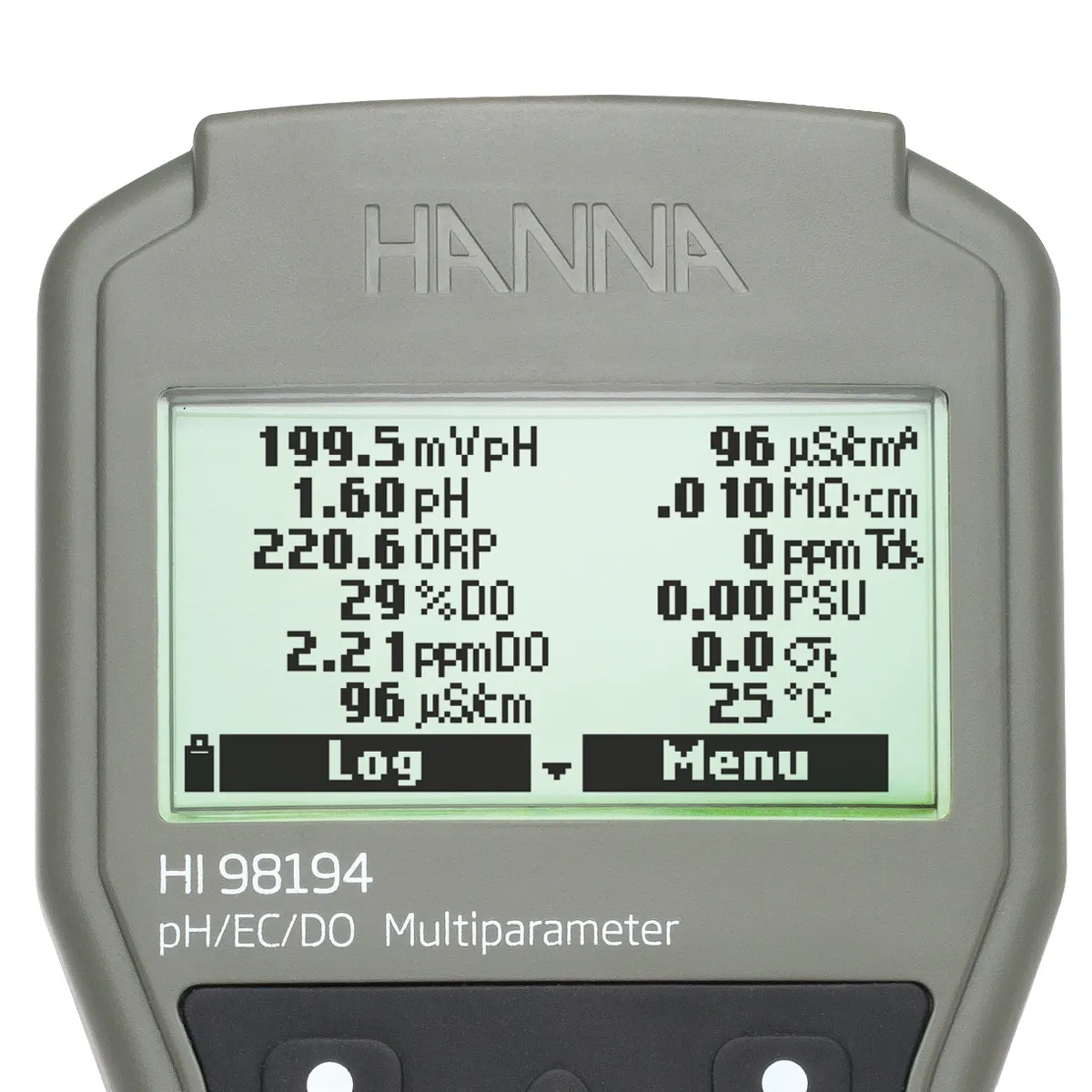

The HI98194 is a rugged, waterproof multiparameter meter that monitors up to 12 different key water quality parameters. A backlit, graphic LCD provides easy to read resolution even in low-lit areas and a combination of dedicated and soft keys allows easy operation. The powerful logging capability and digital probe make this multiparameter water quality meter a great tool.

View all

KWD 728.500

Quantity
Description
Specifications
Downloads
Related products

Description

The HI98194 Multiparameter Waterproof Meter by Hanna Instruments is a robust and versatile device designed for professionals who require precise and comprehensive water quality analysis. This portable meter measures up to 12 critical parameters, including pH, ORP, EC, TDS, salinity, dissolved oxygen, pressure, and temperature. Equipped with a durable multi-sensor probe, it ensures simultaneous and accurate measurements even in challenging environmental conditions. Its backlit graphic LCD provides clear readings, while the rugged waterproof design makes it ideal for use in the field. This meter is suitable for environmental monitoring, industrial applications, and laboratory research, offering advanced data logging and user-friendly operation.

Features

• Comes as a complete system, allowing you to start taking measurements as soon as you receive it. • CAL Check™ electrode diagnostics system alerts you to potential calibration problems so that you know your results are trustworthy every time. • Great for environmental and industrial professionals.

Probe Details

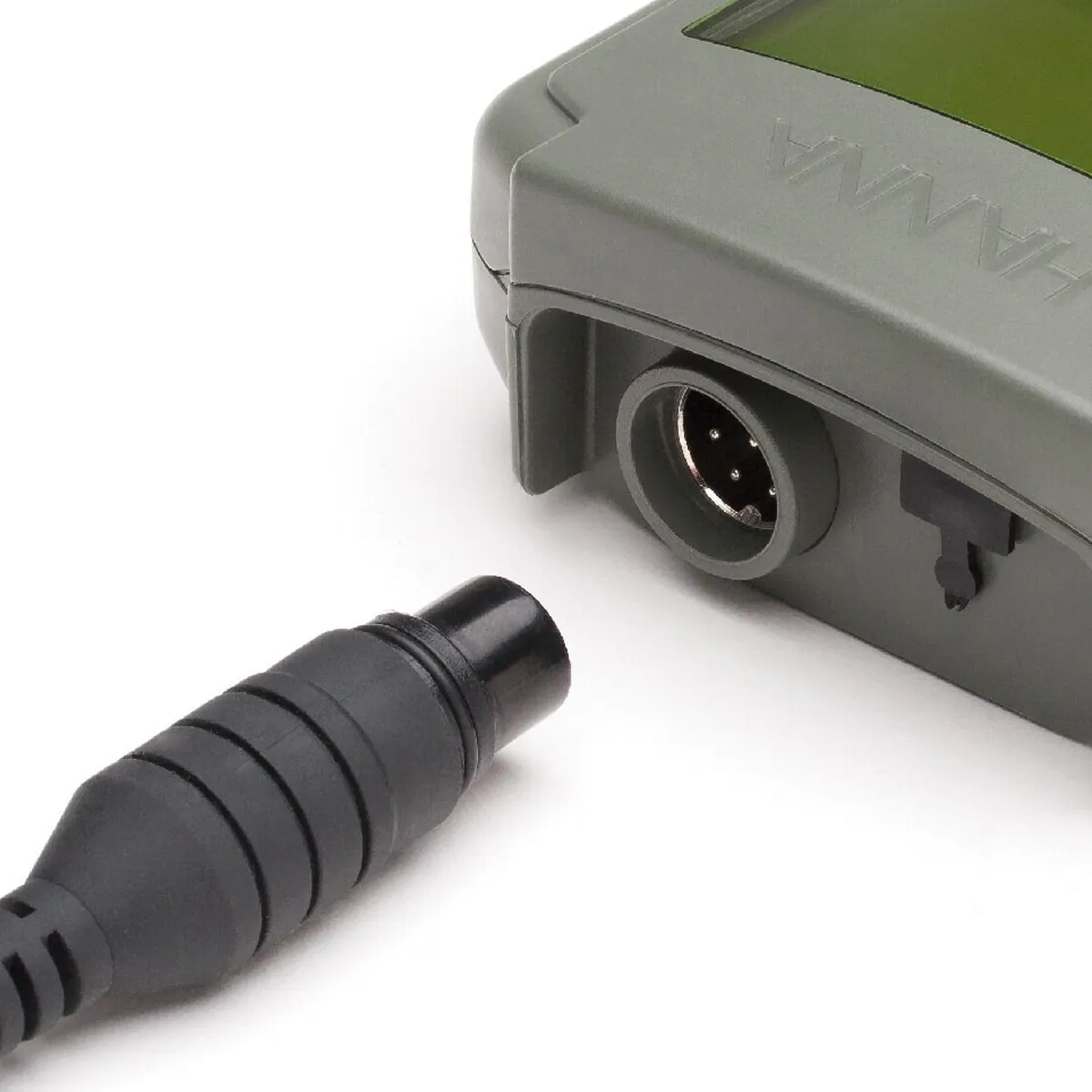

The HI7698194 is a multiparameter probe for use with the HI98194 portable meter. It features a quick connect that makes a waterproof connection with the meter. Sensors are automatically recognized by the probe and meter when connected. Any ports not used on the probe will not have the parameter displayed on the meter. Sensor replacement is quick and easy with field replaceable, screw type connectors that are color coded for easy sensor identification. The probe features a multistrand-multiconductor shielded cable with 4m, 10m, 20m, and 40m lengths available. It’s rugged, waterproof design makes it ideal for field use.

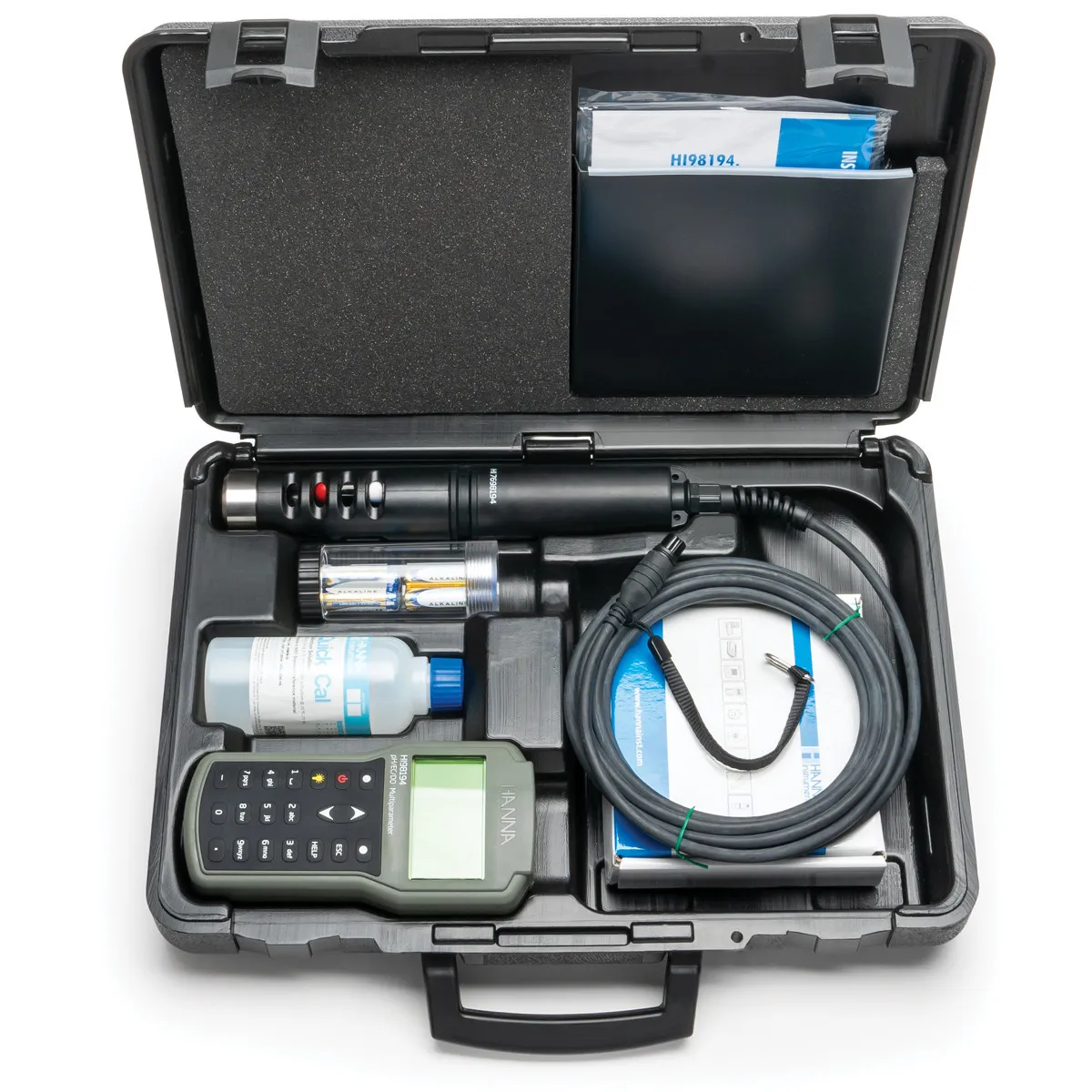

Rugged Carrying Case

The HI98194 meter, probe, and all accessories are supplied in a rugged carrying case designed to provide years of use. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components.

Downloads

MAN98194_05_19_crop.pdf

pdf
Download

Specifications

SKU
HI98194
pH Range
0.00 to 14.00 pH
pH Resolution
0.01 pH
pH Accuracy @ 25°C / 77°F
± 0.02 pH
pH Calibration
automatic one, two, or three points with automatic recognition of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer
mV Range
± 600.0 mV
mV Resolution
0.1 mV
mV Accuracy
± 0.5 mV
ORP Range
± 2000.0 mV
ORP Resolution
0.1 mV
ORP Accuracy (@25°C/77°F)
± 1.0 mV
ORP Calibration
automatic at one custom point (relative mV)
Temperature Range
-5.00 to 55.00 °C; 23.00 to 131.00 °F; 268.15 to 328.15 K
Temperature Resolution
0.01 °C; 0.01 °F; 0.01 K
Temperature Accuracy @ 25°C / 77°F
± 0.15 °C; ± 0.27 °F; ±0.15 K
Temperature Calibration
automatic at one custom point
EC Range
0 to 200 mS/cm (absolute EC up to 400 mS/cm)
EC Resolution
Manual: 1 µS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm Automatic: 1 µS/cm from 0 to 9999 µS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm Automatic (mS/cm): 0.001 mS/cm from 0.000 to 9.999 mS/cm; 0.01 mS/cm from 10.00 to 99.99 mS/cm; 0.1 mS/cm from 100.0 to 400.0 mS/cm
EC Accuracy @25°C/77°F
±1 % of reading or ±1 µS/cm whichever is greater
EC Calibration
automatic single point, with six standard solutions (84 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point
TDS Range
0 to 400000 ppm (mg/L); (the maximum value depends on the TDS factor
TDS Resolution
Manual: 1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L);1 ppt (g/L)Automatic: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L);0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L);0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L);Automatic ppt (g/L): 0.001 ppt (g/L) from 0.000 to 9.999 ppt (g/L);0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L);0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L)
TDS Accuracy @ 25°C / 77°F
±1 % of reading or ±1 ppm (mg/L) whichever is greater
TDS Calibration
based on conductivity or salinity calibration
Do Range
0.0 to 500.0 %; 0.00 to 50.00 ppm (mg/L)
DO Resolution
0.1 %; 0.01 ppm (mg/L)
DO Accuracy (@25°C/77°F)
0.0 to 300.0 %: ± 1.5 % of reading or ± 1.0 % whichever is greater; 300.0 to 500.0 %: ± 3 % of reading 0.00 to 30.00 ppm (mg/L): ± 1.5 % of reading or ±0.10 ppm (mg/L) whichever is greater; 30.00 ppm (mg/L) to 50.00 ppm (mg/L): ± 3 % of reading
DO Calibration
automatic one or two points at 0 and 100% or one custom point
Resistivity Range
0 to 999999 Ω·cm; 0 to 1000.0 kΩ·cm; 0 to 1.0000 MΩ·cm
Resistivity Resolution
Depending on resistivity reading
Resistivity Accuracy (@25°C/77°F)
Based on conductivity or salinity calibration
Salinity Range
0.00 to 70.00 PSU
Salinity Resolution
0.01 PSU
Salinity Accuracy (@25°C/77°F)
±2% of reading or ±0.01 PSU whichever is greater
Salinity Calibration
based on conductivity calibration
Temperature Compensation
Automatic from -5 to 55 °C (23 to 131 °F)
Connectivity
USB to PC with HI9298194 Hanna software installed
GLP
Yes
Power Supply
1.5V AA batteries (4)
Power Consumption
approximately 360 hours of continuous use without backlight (50 hours with backlight)
Environment
0 to 50°C (32 to 122°F); RH 100% (IP67)
Dimensions
185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight
400 g (14.2 oz.)
Ordering Information
HI98194 is supplied with HI7698194 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI7698194-2 DO sensor, HI 76981942 Probe maintenance kit (HI 7042S DO electrolyte solution, DO membrane caps (5), O-rings for sensors (5), syringe with grease to lubricate the O-rings), HI9298194 Hanna PC software, HI920015 micro USB cable, 1.5V AA batteries (4), instruction manual, quick start guide, quality certificate, and rugged carrying case with custom thermoformed insert.
Warranty
2 years
Recommended Probe
HI7698194 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI7698194-2 DO sensor
