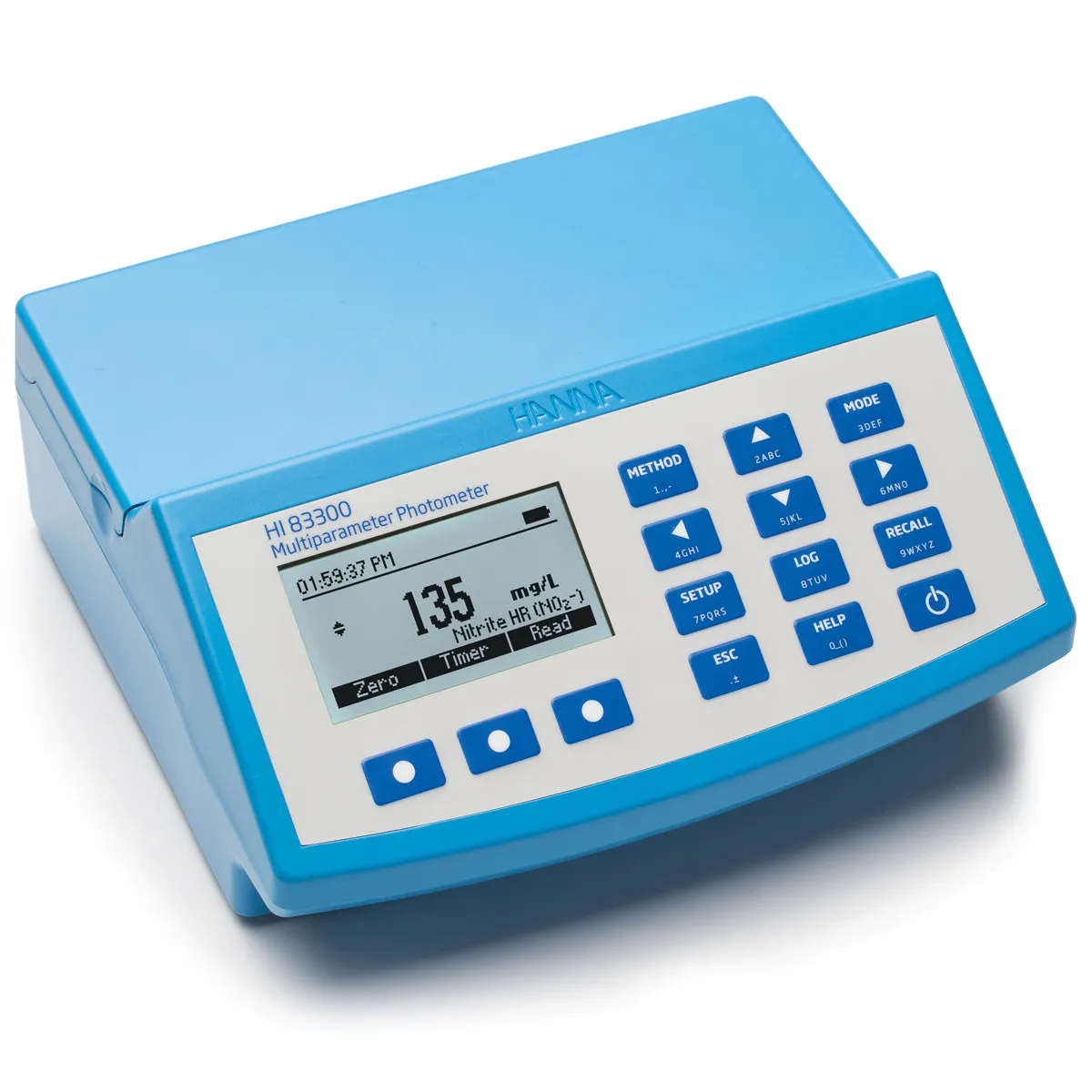

Hanna Instruments Multiparameter Benchtop Photometer and pH meter, HI83300-01

Part Number : HI83300-01

Brand :
Hanna Instruments

HI83300 is a compact, multiparameter photometer for use in the lab or in the field. The meter is one of the most advanced photometers available with a innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and from imperfections in the glass cuvette. This meter has 60 different programmed methods measuring 37 key water quality parameters and also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves. To save valuable laboratory benchtop space, the HI83300 doubles as a professional pH meter with its digital pH/temperature electrode input. Now one meter can be used for both photometric and pH measurements.

View all

KWD 589.000

Quantity
Description
Specifications
Downloads
Related products

Description

From aluminum to zinc, the HI83300 benchtop photometer measures 37 different key water quality parameters using 60 different methods. This photometer features an innovative optical system that uses LEDs, narrow band interference filters, focusing lens and both a silicon photodetector for absorbance measurement and a reference detector to maintain a consistent light source ensures accurate and repeatable photometric readings every time.A digital pH electrode input allows the user to measure pH by a traditional glass electrode. The digital pH electrode has a built in microchip within the probe that stores all of the calibration information. Having the calibration information stored in the probe allows for hot swapping of pH electrodes without having to recalibrate. All pH measurements are automatically compensated for temperature variations with a built in thermistor located in the tip of the sensing bulb for fast and accurate temperature measurement.The HI83300 offers an absorbance measuring mode that allows for CAL CheckTM standards to be used to validate the performance of the system. The absorbance mode allows the user to select one of the five wavelengths of light (420 nm, 466 nm, 525 nm, 575 nm, and 610 nm) to measure and plot their own concentration versus absorbance mode. This is useful for users with their own chemical method and for educators to teach the concept of absorbance by using the Beer-Lambert Law.Two USB ports are provided for transferring data to a flash drive or computer and to use as a power source for the meter. For added convenience and portability the meter can also operate on an internal 3.7 VDC Lithium-polymer rechargeable battery.Please note, reagents are not included and can be purchased here.

Backlit 128 x 64 Pixel Graphic LCD Display

The 128 x 64 Pixel LCD allows for a simplified user interface with virtual keys and on-screen help to guide the user through use of the meter

Built-in Reaction Timer for Photometric Measurements

The measurement is taken after the countdown timer expires. Countdown timer ensures that all readings are taken at the appropriate reaction intervals regardless of user for better consistency in measurements

Connectivity

Logged readings can be quickly and easily transferred to a flash drive using the USB-A host port or to a computer using the micro USB-B port

Units of Measure

Appropriate unit of measure along with chemical form is displayed along with reading

Downloads

HI83300-01.pdf

pdf
Download

Specifications

SKU
HI83300-01
Light source
5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral bandwidth
8 nm
Input Channels
1 pH electrode input and 5 photometer wavelengths
pH Electrode
digital pH electrode (not included)
Logging Type
log on demand with user name and sample ID optional input
Logging Memory
1000 readings
Connectivity
USB-A host for flash drive; micro-USB-B for power and computer connectivity
GLP
calibration data for connected pH electrode
Display
128 x 64 pixel LCD with backlight
Battery Type / Life
3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply
5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Environment
0 to 50.0 oC (32 to 122.0 oF); 0 to 95% RH, non-condensing
Dimensions
206 x 177 x 97 mm (8.1 x 7.0 x 3.8")
Weight
1.0 kg (2.2 lbs.)
Photometer/Colorimeter Light Detector
silicon photodetector
Cuvette Type
round, 24.6 mm
Number of Methods
128 max.
Ordering Information
Supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.
Warranty
2 years
Note
*Reagents are not included.
