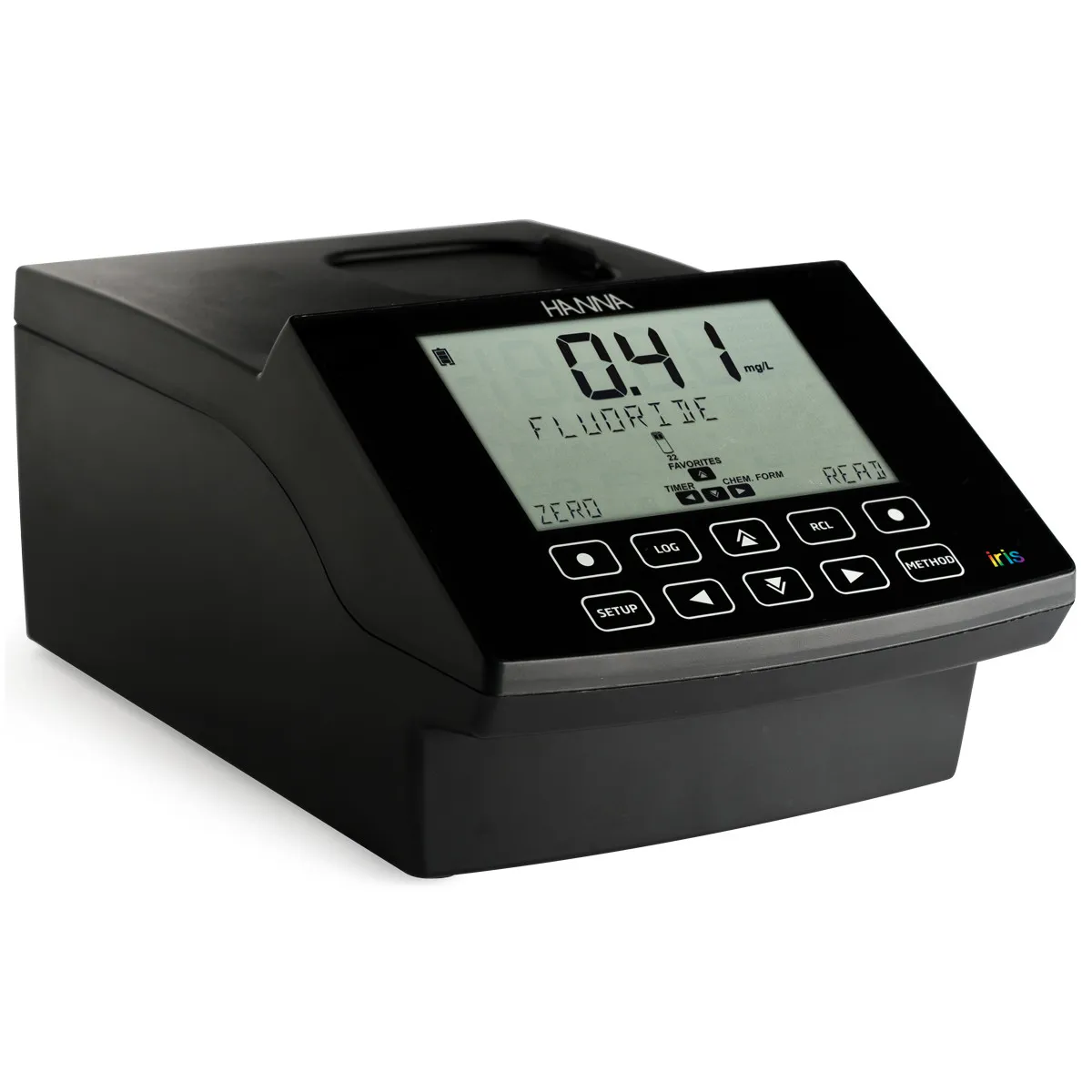

Hanna Instruments Iris Visible Spectrophotometer, HI801-01

Part Number : HI801-01

Brand :
Hanna Instruments

The HI801 iris is a sleek and intuitive spectrophotometer that allows for measurement of all wavelengths of visible light.

View all

KWD 1,410.000

Quantity
Description
Specifications
Downloads
Related products

Description

The HI801 iris is a sleek and intuitive spectrophotometer that allows for measurement of all wavelengths of visible light. Customize your methods, take a wide range of measurements, and feel confident in your testing accuracy with iris. iris features precise wavelength selection between 340 nm to 900 nm for complete method compliance and accuracy that is necessary in industries like professional laboratories, water treatment facilities, wineries, and more. Results are consistent and accurate regardless of throughput with the high quality and uniquely designed optics system. Customization options include multiple cuvette shapes and sizes, custom calibration curves, and methods.

Superior design for superior results.

iris can test a wide variety of analytical measurements and is capable of measuring in a spectral range of 340 nm to 900 nm. With the compact design of its advanced optical system, iris can be used in almost any sized space while providing accurate and consistent results. The split beam optical system allows iris to automatically compensate for any drift in light source, resulting in superior accuracy.

Quality data without the hassle.

Export your results with a USB drive or direct PC link organized by sample ID, method, or date range. Save data as a .pdf or .csv for maximum data integrity or flexibility – all without the use of specialized software.

Designed for dynamic environments.

iris' compact profile and long-lasting battery make it easy to set up anywhere in your lab. The rechargeable lithium ion battery lasts for 3,000 measurements, or 8 hours – well over a full day of use out in the field.

Change the sample size easily.

With our universal cuvette holder and auto-recognition feature, cuvette sizes can be changed when needed. The programmed cuvette size will be displayed on the screen every time you test to ensure that the proper path length is being used by the meter when calculating measurements for correct results.

Downloads

HI801_Meter.pdf

pdf
Download

HI801_Methods.pdf

pdf
Download

Specifications

SKU
HI801-01
Wavelength Range
340 to 900 nm
Wavelength Resolution
1 nm
Wavelength Accuracy
±1.5 nm
Measurement Modes
Transmittance (%), Absorbance, Concentration
Wavelength Selection
Automatic, based on the selected method (editable for user methods only)
Light source
Tungsten halogen lamp
Optical System
Split beam
Wavelength Calibration
Internal, automatic at power-on (with visual feedback)
Stray Light
<0.1 % T at 340 nm with NaNO2
Spectral bandwidth
5 nm
Sample Cell
10 mm square 50 mm rectangular 16 mm round 22 mm round 13 mm round (vial) with barcode
Logging Memory
up to 9999 measured values
Export Capability
.csv file format, .pdf file format
Connectivity
1x USB A (mass storage host) 1x USB B (mass storage device)
Battery Type / Life
3000 measurements or 8 hours*
Power Supply
15 VDC power adapter 10.8 VDC Li-Ion rechargeable battery
Environment
0 to 50 °C (32 to 122 °F) 0 to 95% RH non-condensing
Dimensions
155 x 205 x 322 mm (6.1 x 8.0 x 12.6")
Weight
3.4 kg (7.5 Ibs.)
Number of Methods
up to 150 factory (103 pre-loaded) up to 100 user
Ordering Information
HI801 is supplied with 22 mm sample cuvette and cap (4), 10 mm square, 13 mm round and 16 mm round cuvette adapters, cloth for wiping cuvettes, scissors, USB cable, lithium ion rechargeable battery, 115VAC to 15VDC power adapter, USB drive, instruction manual, and instrument quality certificate.
Warranty
2 years
Note
*Reagents are not included.
