Hanna Instruments Advanced Conductivity Benchtop Meter, HI6321-01

Part Number : HI6321-01

Brand :
Hanna Instruments

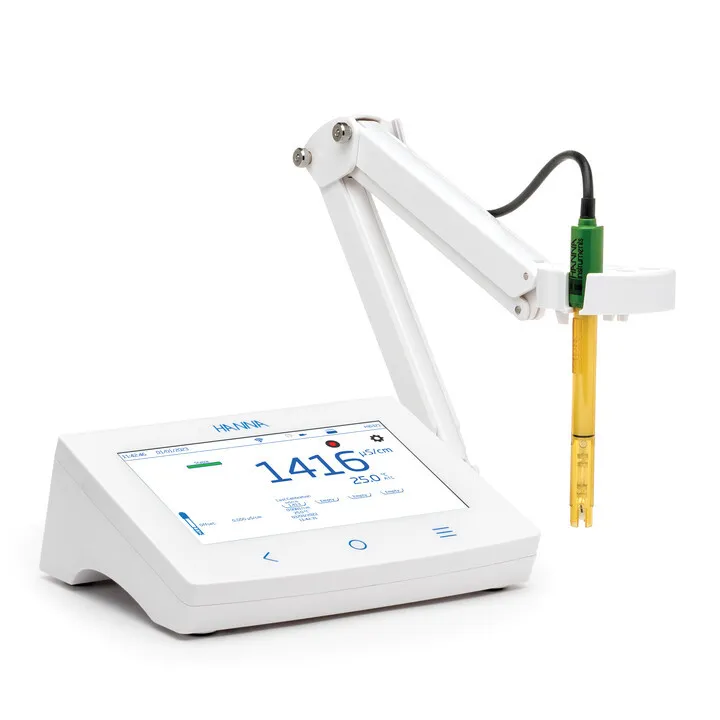

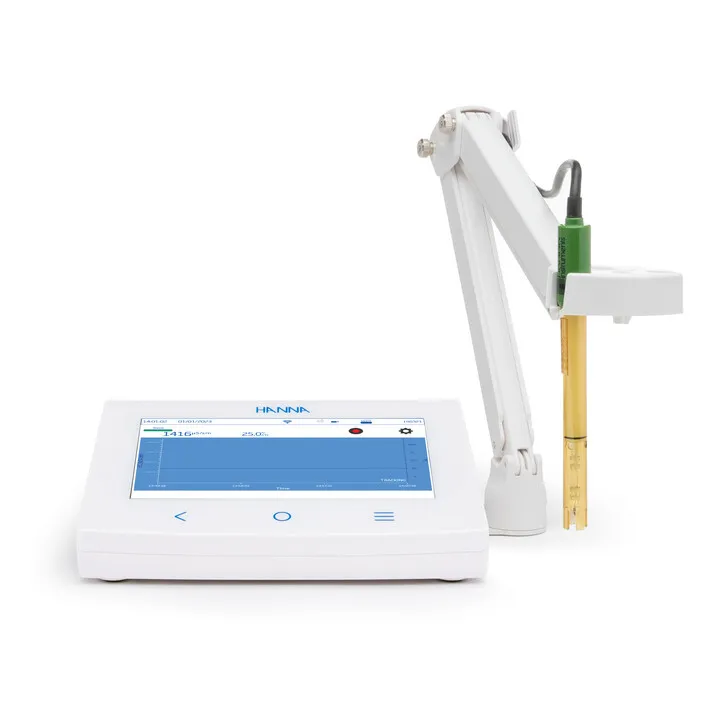

HI6321 is a streamlined Conductivity/Resistivity/Total Dissolved Solids (TDS)/Salinity/Temperature benchtop meter with a large touch screen display, comprised of a housing and an integrated conductivity measurement module. Compact and easy to operate, the HI6321 includes Hanna’s HI7631233 four-ring conductivity/resistivity/TDS/salinity probe.

View all

KWD 403.000

Quantity
Description
Specifications
Downloads
Related products

Description

HI6321 is a streamlined Conductivity/Resistivity/Total Dissolved Solids (TDS)/Salinity/Temperature benchtop meter with a large touch screen display, comprised of a housing and an integrated conductivity measurement module. Compact and easy to operate, the HI6321 includes Hanna’s HI7631233 four-ring conductivity/resistivity/TDS/salinity probe. Recommended for a wide range of industrial process water applications, HI7631233 provides stable measurements over a wide measurement range and does not require frequent calibrations. An integral temperature sensor measures the process temperature and adjusts the measured conductivity to a reference temperature by applying specialized compensation algorithms: Linear: appropriate when it is assumed that the temperature coefficient of variation has the same value for all measurement temperatures. Standard: appropriate for high-purity water measurements and documented in ASTM Standard D5391-14. This setting should be used for >1Mohm.cm resistivity measurements. Natural: appropriate for natural ground, well, or surface water (or water with similar composition) in accordance with ISO7888 standard.

User Interface

7-inch capacitive touch screen with multi-touch support Capacitive touch back, home and system menu keys User-friendly icons and symbols allow users to easily navigate and interpret the instrument functions.

Five Intuitive Views

Basic measurement configuration Simple GLP with calibration information Full GLP with electrode status and calibration point details Live updated, interactive graph Tabulated data with date, time, and notes

Measurement

Measure μS/cm, mS/cm (Conductivity); Ω·cm, kΩ·cm, MΩ·cm (Resistivity); ppm, ppt (TDS); ppt, PSU, % (Salinity) with temperature Application-specific profiles allow quick and direct measurement without the need to update the sensor and system settings Active log during measurement Measurement stability indicator (using the Stability Criteria setting) Reading modes: direct and direct/autohold Temperature compensation can be automatic or set manually Audible and/or alarm messages for measurements outside of predefined limits Galvanic isolation for conductivity measurement

Connectivity Features & Services

Transfer logged data to a USB thumb drive Log files that include measurements and calibration data (as .csv file) FTP and email for log export via Ethernet and Wi-Fi connection USB type A for USB stick, keyboard, and printer USB type C for USB stick and PC connection

Downloads

HI6321-01.pdf

pdf
Download

Specifications

SKU
HI6321-01
EC Resolution
0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm
EC Accuracy
±1 % of reading (±0.01 μS/cm)
EC Calibration
automatic standard recognition (84.00 µS/cm, 1.413 mS/cm, 5.000 mS/cm, 12.88 mS/cm, 80.00 mS/cm, 111.8 mS/cm) or user standard; single point or multi-point calibration
TDS Range
0.000 to 9.999 ppm; 10.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 ppt; 10.00 to 99.99 ppt; 100.0 to 400.0 ppt; actual TDS (with 1.00 factor)
TDS Resolution
0.001 ppm; 0.01 ppm; 0.1 ppm; 0.001 ppt; 0.01 ppt; 0.1 ppt
TDS Accuracy
±1 % of reading (±0.01 ppm)
Resistivity Range
1.0 to 99.9 Ω·cm; 100 to 999 Ω·cm; 1.00 to 9.99 KΩ·cm; 10.0 to 99.9 KΩ·cm; 100 to 999 KΩ·cm; 1.00 to 9.99 MΩ·cm; 10.0 to 100.0 MΩ·cm
Resistivity Resolution
0.1 Ω·cm; 1 Ω·cm; 0.01 KΩ·cm; 0.1 KΩ·cm; 1 KΩ·cm; 0.01 MΩ·cm; 0.1 MΩ·cm
Resistivity Accuracy
±1 % of reading (±1 Ω·cm)
Salinity Range
0.00 to 42.00 PSU - Practical Scale; 0.00 to 80.00 ppt - Natural Sea Water; 0.0 to 400.0 % - Percent Scale
Salinity Resolution
0.01 for Practical Scale / Natural Sea Water; 0.1 % for Percent Scale
Salinity Accuracy
±1 % of reading
Salinity Calibration
1 point for Percent Scale
Temperature Range
−20.0 to 120.0 °C; −4.0 to 248.0 °F; 253.0 to 393.0 K
Temperature Resolution
0.1 °C; 0.1 °F; 0.1 K
Temperature Accuracy
±0.2 °C; ±0.4 °F; ±0.2 K
EC/TDS Probe
HI7631233 four-ring conductivity/ resistivity/TDS/salinity probe
Power Supply
DC adapter 100-240AC to 24VDC 2.5A
Environment
0 - 50 °C / 32 - 122 °F / 273 - 323 K maximum 95% RH non-condensing
Dimensions
205 x 160 x 77 mm (8.0 x 6.2 x 3.0")
Weight
Approximately 1.2 kg (26.5 lbs.)
Ordering Information
HI6321 is supplied with HI7631233 probe; HI764060 electrode holder; capillary pipette; 24 VDC power adapter; USB-C to USB-A cable; probe quality certificate; quick reference guide with instrument quality certificate.
Warranty
2 years
