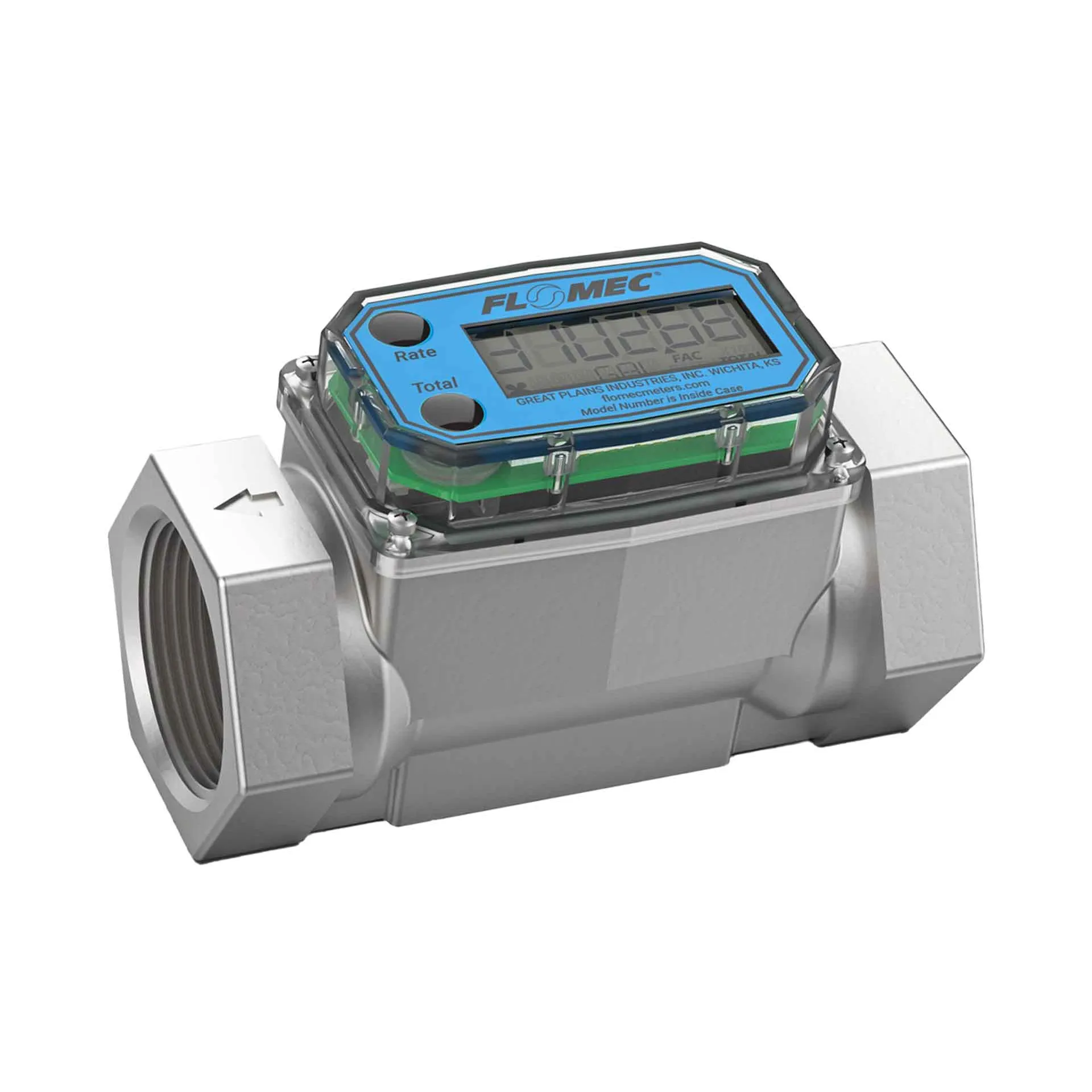

GPI Meters Industrial Grade Electronic Flow Meter, 2" NPT 316SS, G2S Threaded, FM Approved (For Hazardous Area), G2S20NQ9GMB

Part Number : G2S20NQ9GMB

Brand :
GPI Meters

Introducing the GPI G2 Series Water Flow Meter, a top-tier industrial-grade flow meter specifically designed for accurate measurement of water-like fluids. Featuring a robust 2" body, this digitally calibrated meter boasts exceptional accuracy of ±0.75% and operates under pressures up to 1500 PSI. Its versatile digital LCD display presents real-time flow rates and totals, making it ideal for both industry and commercial applications. With durable construction, replaceable parts, and a 2-year battery life, this meter provides reliability and convenience wherever it’s needed.

View all

KWD 357.050

Quantity
Description
Specifications
Downloads
Related products

Description

The GPI G2 Series Water Flow Meter is engineered to deliver precision and reliability in measuring water-like fluids across a range of industrial and commercial applications. With a meter body size of 2" and a local digital LCD display, this meter allows for easy reading of flow rates and totals—both batch and cumulative. Designed for optimal performance, the G2 Series offers impressive factory calibration accuracy of ±0.75%, along with a repeatability of ±0.1%, ensuring highly reliable flow measurements. It is equipped to handle maximum pressures of up to 1500 PSI and operates effectively in a wide temperature range from -40 to 250°F (-40 to 121°C). This flow meter includes several advanced features: it is factory calibrated and field calibratable, provides both resettable and cumulative total measurements, and allows configuration for either gallons or liters. The display is user-friendly, featuring a 6-digit floating decimal configuration that offers clarity in readings. Durability is a hallmark of the G2 Series, with housing made from 316SS and bearings crafted from 96% alumina ceramic and tungsten carbide. The meter is capable of operating accurately under varying flow conditions, with an extended flow range of 200 to 300 GPM (760 to 1136 LPM), though users should note that accuracy outside normal conditions may decline. Moreover, it includes options for remote output through 4-20mA or pulse signals, enhancing its versatility for integration into existing systems. Despite its robustness, maintenance is painless with replaceable internal meter components and an included 1-year warranty. However, potential users should be aware that this meter is not suitable for deionized water or oils exceeding 100 cps viscosity. For optimal accuracy, it's recommended to maintain complete fluid lines, avoiding air pockets, and adhere to specified straight pipe diameters.

General Information

• Meter Body Size: 2" • Local/Remote Display: Local • Display Type: Digital LCD • Factory Calibrated For: Water like fluids • Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER • Std Calibration Reports Included: Yes • Warranty Period: 1 Year • Product Type: Rate & Totals • Benefits & Features: Pressure Rated to 1500 PSI; Excellent Chemical Compatibility; Accurate; Durable; 2-Year Battery Powered; 6 Digit Display - Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Add-On Output Options; FM Approved Class I, Div. I; Replaceable Internal Meter Body Parts; Choice of Gallons or Liters; Custom Programmable Display (including UOM)

Flow Specifications

• Max Pressure Drop (at Max Flow in test conditions): 4.7 PSI • Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.75% • Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.0% • Repeatability (based on test conditions): ± 0.1% • Recommended Strainer Size: 35 Mesh (500 Microns) • Max. Particle Size: .018" / .457 mm • Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt'l] • Extended Flow Range: 200 - 300 GPM (760 - 1136 LPM)
[Accuracy of the extended flow range declines and is not guaranteed]
Overranging damages meter and voids warranty • Maximum Viscosity: 100 cps
[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]

Wetted Materials

• Housing Material: 316SS • Bearings: 96% Alumina Ceramic/Tungsten Carbide • Shaft: Tungsten Carbide • Rotor: PVDF • Signal Generator: Not Wetted • Retaining Rings: 316SS

Electronics

• Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative) • Local Computer Calibrations: Factory & Field • LCD Digits: 6 • Totalizing Display Starting Increment: 0.01 • Typical K-Factor PPG (PPL): 100 (26) • Local Module & Output Signal: None • Remote Output: Optional Remote Display, 4-20mA or Pulse Out (Please contact us) • Sensor (Pickup): Magnetic • Battery Power: (2) AAA 1.5V Alkaline Battery (2 year) • Frequency Range: 33 - 330 Hz • Totalizing Resets to 0 After Reaching: 99999999

Application Notes

• Applications (always check Chemical Compatibility Guide): Water, Chemicals, Fuel Products • Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities** • Minimum Straight Pipe Dia.s: 20" Upstream / 10" Downstream • Desired Straight Pipe Dia.s: 40" Upstream / 20" Downstream • Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line should be kept full (no air) for proper accuracy • Piping Notes: If cavitation affects accuracy, try a flow control valve downstream of meter

Downloads

G2S20NQ9GMB Data Sheet.pdf

pdf
Download

G2S20NQ9GMB Manual.pdf

pdf
Download

G2S20NQ9GMB Meter Manual.pdf

pdf
Download

Specifications

Connection size
Choose a connection size that matches the size of the pipe or hose it will be connected to. Alternatively, you can size the valve based on the Kv value for more accuracy.
2"
Connection type
Types of connection used for the valve ports.
NPT Female
Flow Range
20 - 200 GPM (76 - 760 LPM)
Pressure rating
1500 PSI (102 Bar)
Operating Temp With Local Computer
0 to 140°F (-18 to 60°C) for SAFE AREA (Non-FM Approved) 0 to 129°F (-18 to 54°C) for INTRINSICALLY SAFE (FM Approved)
Max Pressure Drop (at Max Flow in test conditions)
4.7 PSI
Max. Particle Size
.018" / .457 mm
Accuracy (% of Reading) Factory Calibrated with Computer
± 0.75%
Accuracy (% of Reading) Factory Calibrated Body Only
± 1.0%
Repeatability (based on test conditions)
± 0.1%
