General Electric, Speedtronic Mark VI Series, Vibration Monitor Board, IS200VVIBH1C

Part Number : IS200VVIBH1C

Brand :
General Electric

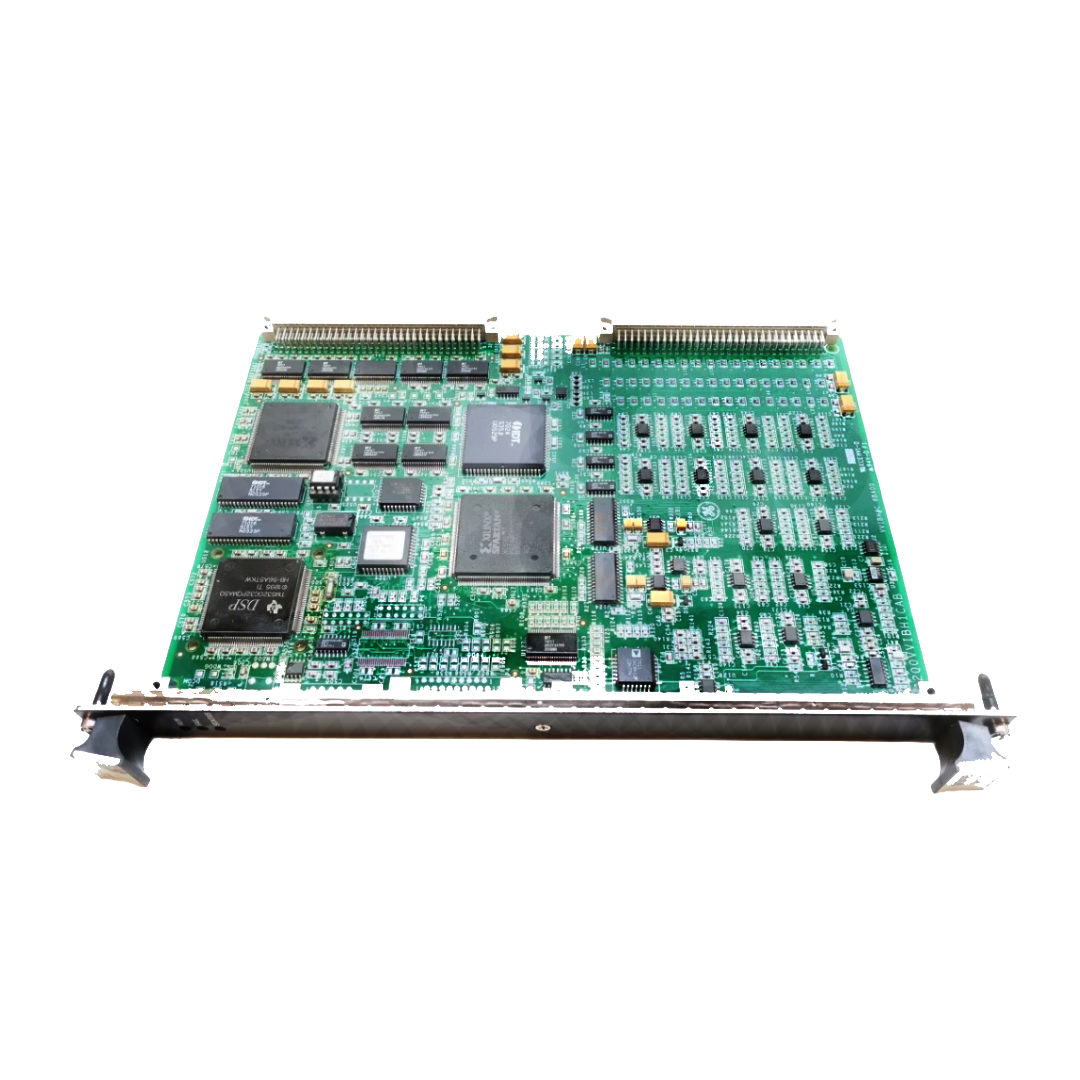

IS200VVIBH1C is a Vibration Monitor Board developed by General Electrics under Mark VI. Vibration probe signals from the TVIB or DVIB terminal board are processed by the Vibration Monitor board. Up to 14 probes can be connected to the terminal board directly. To the VVIB processor board, two TVIB can be connected. VVIB digitizes the various vibration signals and transmits them to the controller over the VME bus. For shaft vibration monitoring, the Mark VI system employs Bently Nevada probes. The vibration probes listed compatible are Proximity, Velocity, Acceleration, Seismic and Phase. IS200VVIBH1C - Vibration Monitor Board is available in brand new, Unused and Refurbished Condition and also Repairable.

View all

KWD 2,790.000

Quantity
Description
Specifications
Related products

Description

The IS200VVIBH1C is a board component manufactured by GE for the Mark VI system. The Mark VI is one of GE’s steam and gas turbine management systems released under the Speedtronic name during the ‘60s, ‘70s, ‘80s, and ‘90s. As one of the last systems released in this line, the Mark VI is also one of the most advanced. It is built with TMR (triple redundant modular) architecture and has a PC-based HMI (human-machine interface) that runs on a Windows platform. This HMI PC includes software that has been designed for turbine management, including fully programmable maintenance tools. The IS200VVIBH1C functions as a Vibration Monitor card, which processes vibration probe signals originating from up to fourteen probes attached to DVIB or TVIB terminal boards. These are used to measure differential expansion, rotor eccentricity, vibration, or rotor axial position. Additional information on function and setup of probes may be found within the Mark VI Turbine Control System Guide (GEH-6421.) The IS200VVIBH1C has a single-slot faceplate attached to a component dense circuit board. The faceplate has only three components, which are all located at the very top of the covering; these are LED indicators labeled run/fail/status. The surface of the IS200VVIBH1C includes two backplane connectors placed on the rear edge of the board (P1 and P2.) The board has four other connectors designed with conductive traces and dots. There are resistors, diodes, capacitors, and inductor coil/beads located on the board surface. Some of these components also appear on the back surface of the board. Integrated circuits located on the IS200VVIBH1C include FPGAs, RAM and SRAM chips. Installation procedures can be found in the abovementioned GE publication. Any capacitor, resistor, diode, transformer, or integrated circuit on the surface of this IS200VVIBH1C VME Vibration Board product's base printed circuit board is actually installed as part of a standard voltage suppression and regulation strategy standardized to this IS200VVIBH1C VME Vibration Board product's Mark VI Series. This IS200VVIBH1C VME Vibration Board device's IS200VVIBH1C VME Vibration Board functional product number is important for the research purposes of this IS200VVIBH1C VME Vibration Board personalized product page as it was actually specifically designed by General Electric to indicate a number of crucial IS200VVIBH1C VME Vibration Board device qualities through a series of consecutive functional naming chunks.

Features

- Precise Voltage Monitoring and Control: The IS200VVIBH1C excels in its ability to accurately monitor and control voltage levels, providing real-time feedback to maintain stability and reliability.

- Compact and Durable Design: Crafted with durability in mind, this module boasts a robust construction that can withstand the rigors of industrial environments. Despite its ruggedness, its compact form factor allows for seamless integration into control panels without occupying excessive space.

- Easy Integration with GE Mark VI Control System: Engineered for compatibility with the GE Mark VI Control System, the IS200VVIBH1C effortlessly integrates into existing setups, ensuring a hassle-free installation process.

- Wide Operating Temperature Range: Capable of operating within a broad temperature range of -10°C to 60°C, this module remains functional even in challenging environmental conditions, making it suitable for a diverse range of applications.

- Lightweight and Space-saving: Weighing a mere 0.5 lbs and featuring compact dimensions, the IS200VVIBH1C offers the dual benefits of portability and space efficiency, making it an ideal choice for installations with space constraints.

Benefits

- Enhanced Voltage Monitoring Capabilities: With its advanced voltage monitoring features, the IS200VVIBH1C enables precise adjustments to voltage levels, thereby enhancing system stability and performance.

- Improved System Performance and Reliability: By ensuring consistent and reliable voltage regulation, this module contributes to the overall performance and reliability of the GE Mark VI Control System, minimizing the risk of downtime and system failures.

- Simplified Integration and Installation Process: Designed for ease of installation, the IS200VVIBH1C streamlines the integration process, reducing deployment time and eliminating compatibility issues.

- Compact Design Saves Space in Control Panels: Its compact design allows for efficient utilization of space in control panels, freeing up valuable real estate for other essential components and equipment.

- Extended Operating Temperature Range for Versatile Applications: With its wide operating temperature range, this module can be deployed across various industrial settings, from temperature-controlled environments to harsh outdoor conditions, ensuring adaptability and versatility.

Applications

Some of the common applications include:

- Power generation plants

- Oil and gas refineries

- Manufacturing facilities

- Chemical processing plants

- Pharmaceutical industries

- Data centers

Compatibility

Designed exclusively for compatibility with the GE Mark VI Control System, the IS200VVIBH1C seamlessly integrates into the system architecture, ensuring optimal performance and interoperability. Its standardized design and interface make it a versatile solution for various applications within the GE Mark VI ecosystem.

Diagnostics

Diagnostics execute a high/low (hardware) input signal limit check as well as a high/low system (software) limit check. In the field, the software limit check can be changed. If one of the X or Y probe pairs exceeds its limitations, a probe fault, alert, or trip condition occurs. Furthermore, if a probe error is discovered based on the dc component, the application software avoids a vibration trip (the ac component).
