Gates 66 LB Double Barrel Tension Tester, 66 lb(30 kg) Max Deflection Force for use with Multiple V-Belts & Synchronous Belts, 74010075

Part Number : 74010075

Brand :
Gates

A portable mechanical tension tester engineered to apply a consistent 66 lb(30 kg) deflection force using a double‑barrel mechanism. Designed for use with multi‑V belts and large synchronous drives, it provides highly repeatable tension measurements to streamline preventive maintenance and extend belt life. This lightweight ( 0.4 lb) tool is ideal for field or shop environments.

MOQ - 2 Units

View all

KWD 51.250

Quantity
Description
Specifications
Downloads
Related products

Description

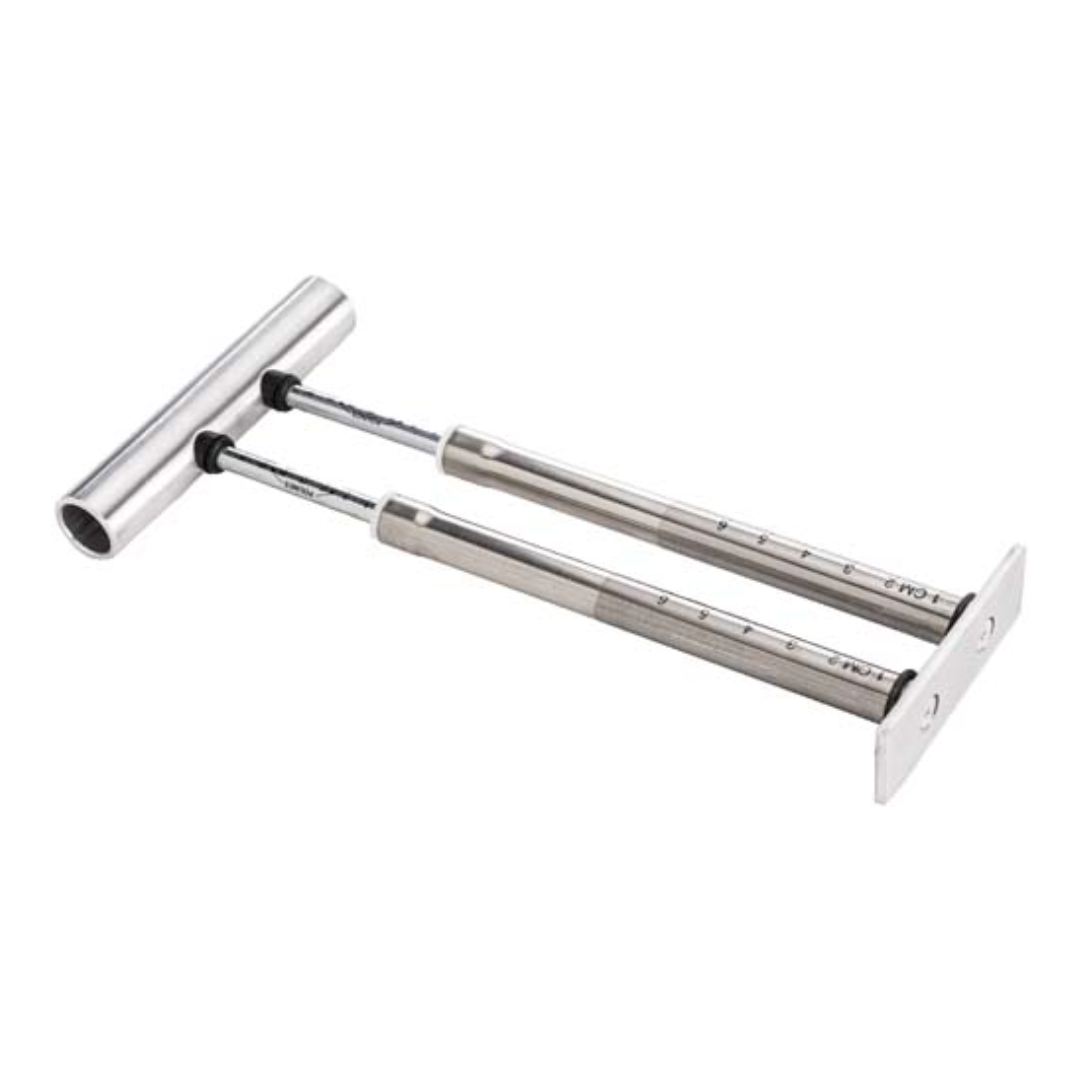

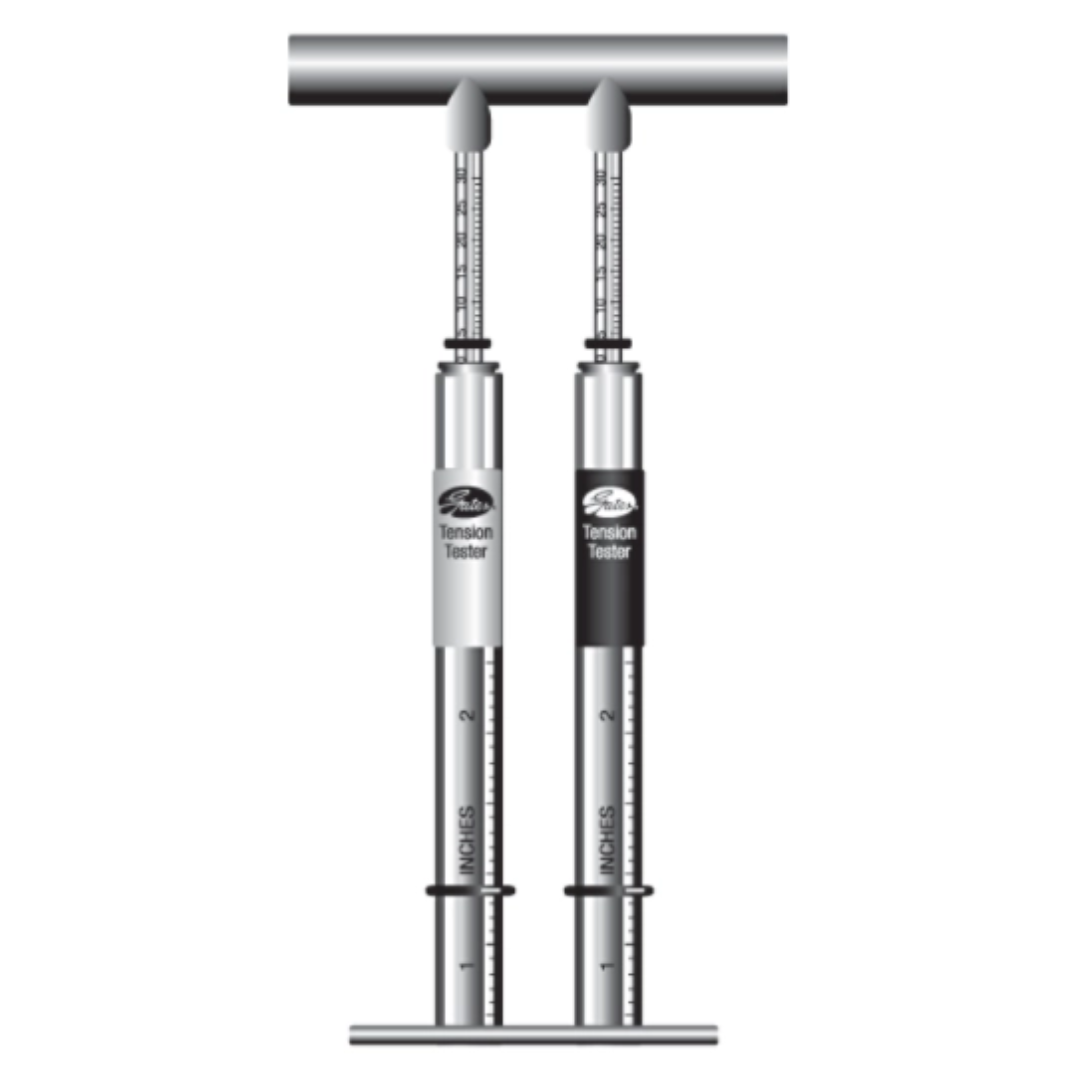

The Gates 66 LB Double‑Barrel Tension Tester 7401‑0075 (UPC 072053109948) is a rugged, user‑friendly tool that ensures precise force‑deflection belt tension verification. It features a double‑barrel lever design calibrated to deliver exactly 66 lb (30 kg) of deflection, readable via sliding rubber O‑rings on each barrel, which lock into place under load. Technicians simply sum the readings from both barrels to validate tension accuracy. Compatible with various industrial belt systems, including PowerBand® and Poly Chain® Carbon™ Volt® synchronous belts, this tester requires no power or calibration, making it reliable and intuitive. At only 0.4 lb it’s portable and well-suited for use in manufacturing, HVAC, material handling, and automotive settings. Using this tool in maintenance routines helps prevent slippage, reduce uneven belt wear, and minimize unplanned downtime.

Key Features

• Fixed 66lb (30kg) deflection force for precise and repeatable tension checks

• Double barrel lever design enables combined measurement across wide or joined belts

• Sliding rubber Orings lock under load for clear, accurate indication of each barrel’s force

• Compatible with multi V belts and large synchronous belt systems

• Lightweight (0.4lb / 0.18kg), compact form factor ideal for field or shop use

• Manual, no-battery operation, simple pull-and-read design requiring no calibration

• Single-unit customer packaging for easy ordering and inventory tracking

• OEM-quality tool manufactured by Gates, a leader in power transmission maintenance

• Supports standardized belt tension protocols to extend belt life and reduce downtime

Downloads

Datasheet Gates Tension Testing.pdf

pdf
Download

Gartes Belt Drives & Preventive Maintenance Products.pdf

pdf
Download

Specifications

Maximum Deflection Force
66 lb (30 kg)
Type
Double‑Barrel tension tester
Compatible Belt Types
Multi‑V belts and large synchronous belt systems
Operation Method
Manual pull‑and‑read; no power needed
Application
Preventive maintenance and tension verification in industrial drives
Measurement Method
Sliding rubber O‑rings display force on each barrel
