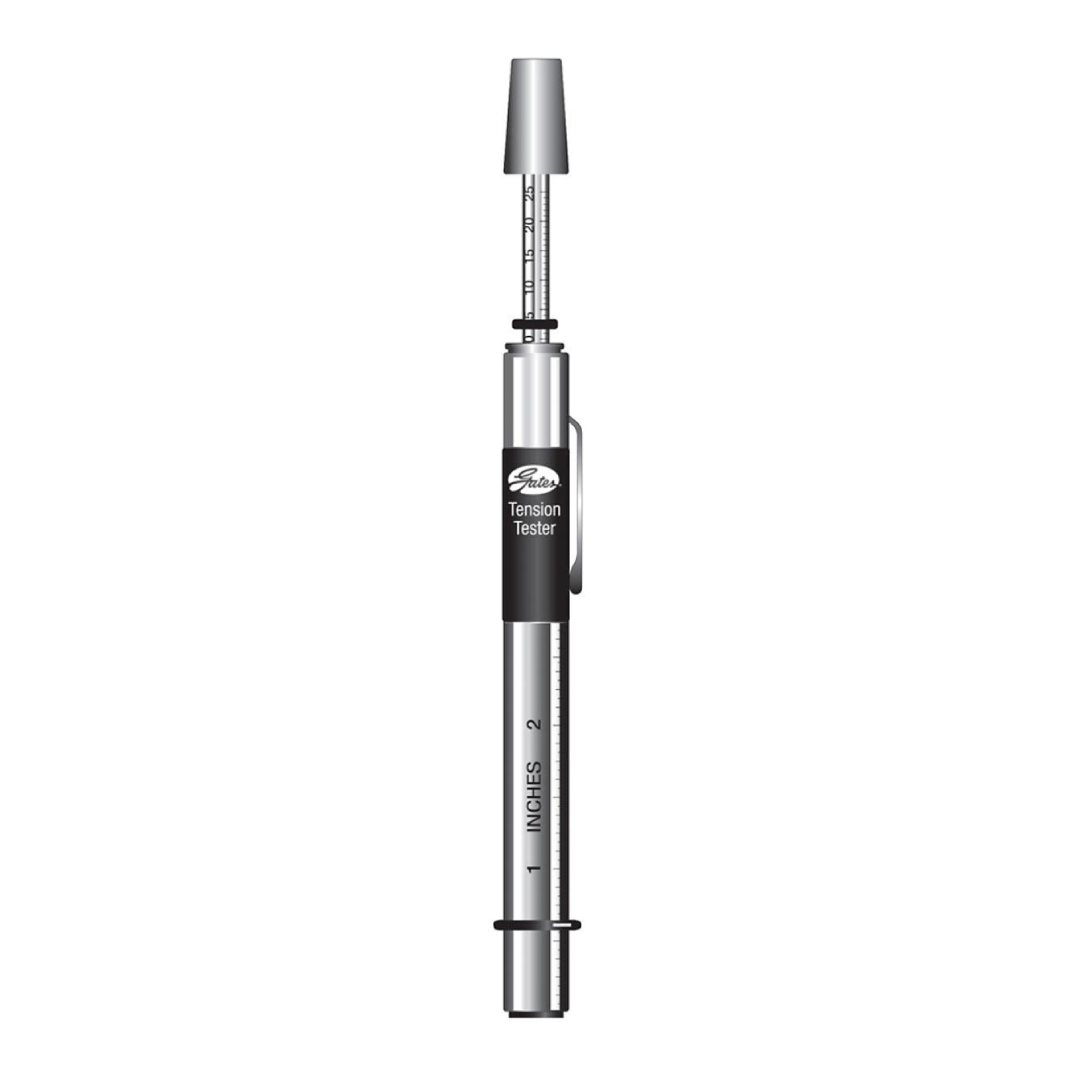

Gates 30 LB Single Barrel Pencil Style Tension Tester, 30 lb(15 kg) Max Deflection Force for use with all Small V-belts & Synchronous Belts, 74010076

Part Number : 74010076

Brand :
Gates

Compact pencil-type mechanical tension tester designed to apply a fixed 30 lb deflection force for precise belt tension verification in small V-belt and synchronous drive systems. Ideal for preventive maintenance of light-duty industrial belt drives where space is limited and accuracy is essential.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Gates 30 LB Single-Barrel Tension Tester (PN 7401-0076) is designed to verify proper belt tension in small V-belt and synchronous drives. With a calibrated deflection force of 30 lb, it is ideal for precision preventive maintenance of compact belt systems, including PowerBand® and Poly Chain® GT® Carbon™ drives. Lightweight and easy to use, it ensures consistent tensioning and improved drive performance.

Key Features

• Fixed 30lb (15kg) deflection force for small V belt and synchronous drives

• Single-barrel pencil-type design ideal for compact or confined applications

• Slim and lightweight construction for easy handling in tight spaces

• Rubber O-ring indicator provides clear, visual tension reference

• Compatible with small V-belts and synchronous belt drives

• Manual operation with no calibration or batteries required

• Supplied as a single-unit for direct inventory or field use

• Trusted OEM-grade quality from Gates for industrial reliability

• Enhances belt performance and reduces slippage or wear in compact systems

Downloads

Datasheet Gates Tension Testing.pdf

pdf
Download

Gartes Belt Drives & Preventive Maintenance Products.pdf

pdf
Download

Specifications

Max Deflection Force
30 lb (15 kg)
Type
Single-barrel pencil-style
Belt Compatibility
Small V-belts & synchronous belts
Operation
The operating principle of the solenoid valve.
Manual pull-and-read, no calibration
Application
  • Precision small drive belt tension maintenance
  • Precision small drive belt tension maintenance
