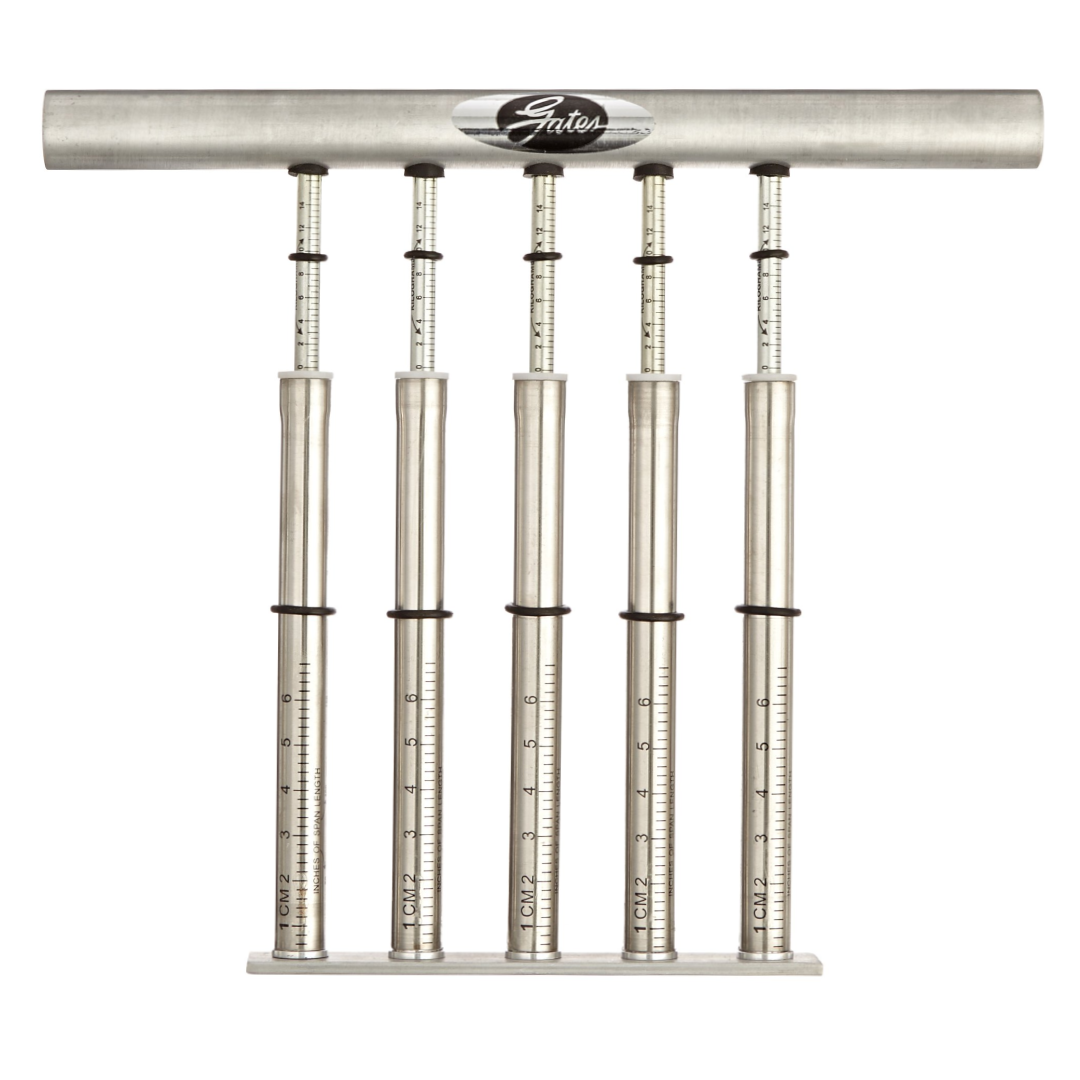

Gates 165 LB Five Barrel Tension Tester, 165 lb(75 kg) Max Deflection Force for use with Multiple V-Belts & Large Synchronous Belts, 74010079

Part Number : 74010079

Brand :
Gates

Heavy-duty mechanical tension tester featuring a five-barrel design engineered to deliver a combined 165 lb deflection force. Designed for high-load and multi-strand belt applications, it ensures accurate tensioning of large synchronous and V-belt systems in demanding industrial environments.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

The Gates 165 LB Five-Barrel Tension Tester (PN 7401-0079) is engineered for measuring belt tension in large V-belt and synchronous drive applications. With a total deflection force of 165 lb distributed across five barrels, it ensures precise tensioning across wide or multi-strand belt setups. Compatible with advanced systems like PowerBand® and Poly Chain® GT® Carbon™, it’s perfect for critical high-load maintenance environments.

Key Features

• Heavy-duty 165lb (75kg) deflection force for large and multi-rib belt systems

• Five-barrel mechanical design distributes force for wide span belts

• Ideal for high-load industrial belt drive systems (e.g. PowerBand®, Poly Chain®)

• Manual operation with barrel summation for accurate force application

• Clear rubber O-ring readings on each barrel for precise measurements

• Durable and rugged for use in maintenance-intensive environments

• Supplied as a single unit in durable packaging

• No calibration or external power needed — reliable in the field

• Engineered by Gates for consistent performance in demanding applications

Downloads

Datasheet Gates Tension Testing.pdf

pdf
Download

Gartes Belt Drives & Preventive Maintenance Products.pdf

pdf
Download

Specifications

Max Deflection Force
165 lb (75 kg)
Type
Five-barrel mechanical gauge
Belt Compatibility
Multiple V-belts & large synchronous belts
Operation
The operating principle of the solenoid valve.
Manual deflection; sum of barrel readings
Application
  • Heavy-duty belt drive tension verification
  • Heavy-duty belt drive tension verification
