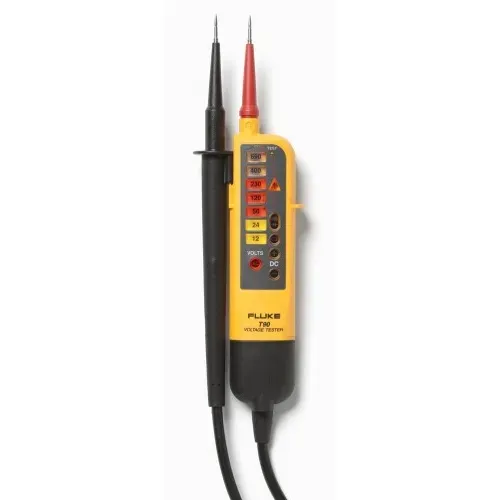

Fluke T90 Two-pole Voltage and Continuity Electrical Tester, 12 to 690 V AC/DC

Part Number : T90

Brand :
Fluke

Essential to the tool belt, this voltage and continuity electrical tester is quick and easy to use. Featuring a clear audible and vibrating voltage indicator, the tester allows you to check the presence of voltage before working on any circuit with complete confidence.

View all
Quantity
Description
Specifications
Downloads
Related products

Description

Fluke T90 OffersFeatures LED Indication Range: 12 to 690 V DC/AC V display: multiple LED bargraph Independent ELV indicator LED, indicates if >50 V ac/120 V dc is present even in the event of no battery power or main circuit failure CAT II 690 V / CAT III 600 V Rugged, double-insulated wire Fixed impedance ~200 k? (~3.5 mA at 690 V) Single-pole phase test (also operates with gloves) Continuity test / diode test Beeper for continuity/phase/ACV (nonswitchable) IP54 Slim Metal Probe Tips (threaded base for included tip accessories) Probe Tip Protector Cap (secure storage for the docked probes) 4 mm ? Probe Tip Thickness Extensions (for better fit in outlets) 19 mm Probe Tip distance when docked Probe Tip Sheath (UK GS38 sheath–keeps the exposed metal to a <4 mm limit) Slim probe for ultra-compact form factor

Downloads

T90.pdf

pdf
Download

Specifications

Voltage Range
12 V to 690 V AC/DC
Resolution
±12 V, 24 V, 50 V, 120 V, 230 V, 400 V, 690 V
Tolerance
Complies with EN 61243-3:2014
Frequency Range
0 / 40 Hz to 400 Hz
Response Time
≤0.5 second
Auto Power On
≥12 V AC/DC
Voltage Detection
Automatic
Polarity Detection
Full range
Range Detection
Automatic
Internal Basic Load Impedance Peak Current
Maximum 3.5 mA at 690 V 200 kΩ / Is <3.5 mA (no RCD tripping)
Operation Time
30 seconds
Recovery Time
240 seconds
Continuity Test
0 to 400 kΩ Accuracy: nominal resistance + 50% Test current: ≤5 µA
Single-Pole Phase Test
100 to 690 V AC 40 to 60 Hz
Rotary Field Indication
Voltage Range (LEDs): 100 to 690 V (phase to earth) Frequency Range: 50 to 60 Hz
Environmental
Pollution degree: 2 Protection degree: IP64
Operating Temperature
5 to 113°F (-15 to 45 °C)
Storage Temperature
- 40 to 140°F (-20 to 60 °C)
Humidity
85% RH maximum
Altitude
6561' (2000 m)
Vibration
refer to EN61243-3
Power Supply
2 x 1.5 V Micro / LR03 / AAA
Power Consumption
50 mA maximum /~250 mW
Language Support
Czech, Dutch, English, Finnish, French, German, Italian, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
Dimensions
10 x 3 x 1.3" (255 x 78 x 35 mm)
Weight
0.59 lbs (0.27 kg)
Safety EN61243-3:2014
Transporting goods: VBG 1, § 35 Overvoltage protection: 690 V AC/DC Measurement category: CAT III 690 V, CAT IV 600 V
