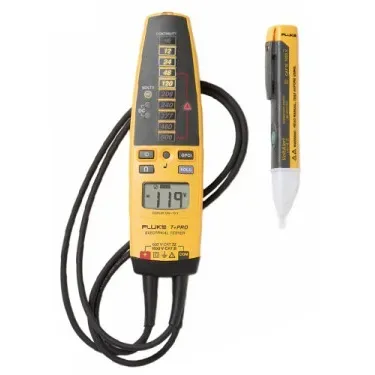

Fluke T+PRO-1AC Electrical Tester and AC Voltage Detector Kit

Part Number : T+PRO-1AC KIT

Brand :
Fluke

Comes equipped with an electrical tester and AC voltage detector making this kit ideal residential, commercial, and industrial applications. Additionally, the products included in this kit are designed to live voltage.

View all

KWD 44.570

Quantity
Description
Specifications
Related products

Description

Fluke T+PRO Offers Features Detect live voltage even when the batteries are dead 3 forms of AC/DC voltage indication: light, sound, and vibration for added user protection and convenience Backlit LCD display and hold function for easier viewing in hard-to-test areas GFCI trip for testing outlet GFCI circuits Rotary field indicator Built in flashlight for measuring point illumination Convenient probe storage on the back CAT IV 600 V, CAT III 1000 V Complies with NFPA 70 E CSA Approved Fluke 1AC-A1-II AC Voltage Detector Features Be aware of voltage easily - the tip glows red and a beeper sounds when voltage is detected Continuous self-test so you always know it's working Voltage detection range for wide application use - 90 to 1000 V AC or 200 to 1000 V AC Audible/Silent mode for added convenience Audible/Silent mode for added convenience in quiet environments On/Off button Rated to CAT IV 1000 V for added protection CE and CSA approved

Specifications

Temperature
Operating: 14 to 131°F (-10 to 55°C) Storage: -22 to 140°F (-30 to 60°C)
Relative Humidity
90% at 32 to 86°F (0 to 30°C) 75% at 86 to 104°F (30 to 40°C) 45% at 104 to 122°F (40 to 50°C)
Altitude
Operating: Approx. 6561.6' (2000 m) Storage: Approx. 32,808.4' (10,000 m)
Battery Type/Life
2 x AAA Batteries 40 hours
Shock, Vibration
Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
AC Bandwidth
45 to 66 Hz
Maximum Working Voltage
1000 V AC/DC
Maximum Measurable Voltage
600 V AC/DC
Duty Cycle
Indefinitely for voltages up to 240 V For voltages between 240 V and 600 V the duty cycle is 30 s on/300 s off For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage Hazard LED
LEDs turn on at voltages >30 V AC/DC ±35%
LED Voltage Indication Levels
12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
LEDs
LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
LCD Accuracy
AC voltage: ±(3% rdg + 2 digits) DC voltage: ±(2% rdg + 2 digits) Resistance: ±(5% rdg + 3 digits)
LCD Resolution
0.1 V for voltages <50 V, 1 V for voltages ≥50 V 0.01 kΩ for resistance measurement
GFCI Test Current
100 to 150 V at 6 to 9 mA AC 150 to 240 V <12 mA
Standard Input Test Current
<5 mA
Dimensions
1.3 x 2.15 x 76" (3.3 x 5.46 x 19.3 cm)
Weight
0.6 lb (0.28 kg)
Safety
ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV Compliance to NFPA 70E
