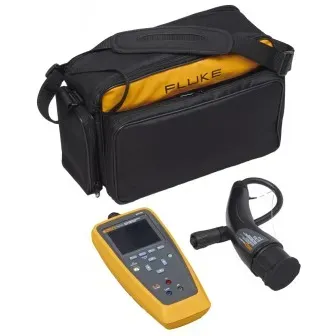

Fluke FEV150 EV Charging Station Analyzer Kit with type 1 plug and one-year FPC

Part Number : FEV150/TY1/FPC

Brand :
Fluke

Perfect for field technicians who value safety, ease of use, and portability, this EV charging station analyzer provides predetermined test plans and pass/fail indicators, allowing thorough and efficient testing without needing multiple tools. In addition, this kit comes with a type 1 plug and a one-year premium care plan.

View all

KWD 1,023.000

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke FEV150/TY1/FPC OffersTest the safety and functionality of AC electrical vehicle charging stations with the all-in-one tool that is safe, portable, and efficient.The FEV150 is a complete solution for safety and performance testing of AC EV charging stations with Type 1 (J1772) or Tesla-type connectors. Deliver uptime reliability with Fluke's next generation of EV Charging test solutions, designed for technicians to perform and document multiple tests safely, quickly, and efficiently without carrying multiple tools.The FEV150 EV Charging Station Analyzer is compliant with J1772 standards.FeaturesProvides critical protective ground testing of the stationComprehensive EVSE test tool with UI to support all critical performance and safety tests of AC EV charging stationsAdvanced functionality with Auto CP waveform analysisOnly tool to support all AC EVSE connectors availablePass/Fail indications on all measurement resultsGFCI testing for 6 and 20 mA GFCI circuitsPE (protective) earth pre-test to ensure no dangerous voltage is presentVisual inspectionGFCI trip testNominal voltageAuto control pilot (CP) with waveform analysisError testingProximity pilotManual control pilotAdvanced GFCI testColor LCD display: On-screen instructions provide an easy walkthrough of tests with a pass/fail indication on all test resultsEasily analyze EV charging performance: Auto control pilot simulates various charging states with on-screen feedback of nominal results and waveform analysisFunction selectionPE pre-test to check if hazardous voltage is presentPress up/down and left/right arrow keys to select features on the displayApplicationsCharging station safety testingCharging station performance testingCharging station troubleshooting/repair

Downloads

FEV150 Series.pdf

pdf
Download

Specifications

Touch Voltage (safe range)
Display range: ≤50 V AC/DC Measurement range: ≤50 V AC/DC Operational error: -50%
Touch Voltage (dangerous range)
Display range: >50 V AC/DC Measurement range: >50 V AC/DC Operational error: -0%
Quick Trip
Display range: 30 mA, trip time limit: 0.56 seconds Measurement range: 30 mA, trip time limit: 0.56 seconds Operational error: Test current: 0 to 10% Nominal values: 100 to 253 V AC, 45 to 66 Hz
Troubleshooting 6 mA GFCI
Display range: 3.5 mA, no trip Measurement range: 3.5 mA, no trip Operational error: Test current: -10 to 0% Nominal values: 100 to 253 V AC, 45 to 66 Hz Display range: 10 mA, trip time limit: 2.69 seconds Measurement range: 10 mA, trip time limit: 2.69 seconds Operational error: Test current: 0 to 10% Nominal values: 100 to 253 V AC, 45 to 66 Hz
Troubleshooting 20 mA GFCI
Display range: 6 mA, no trip Measurement range: 6 mA, no trip Operational error: Test current: -10% to 0% Nominal values: 100 to 253 V AC, 45 to 66 Hz Display range: 30 mA, trip time limit: 0.56 seconds Measurement range: 30 mA, trip time limit: 0.56 seconds Operational error: Test current: 0 to 10% Nominal values: 100 to 253 V AC, 45 to 66 Hz
L1-L2/N
Display range: 0 to 280 V AC Measurement range: 0 to 253 V AC Operational error: ±(3% + 3 digits) Nominal values: 40 to 70 Hz, crest factor 2
Frequency
  • Display range: 40 to 70 Hz Measurement range: 40 to 70 Hz Operational error: ±0.20 Hz
  • Display range: 0.9 to 1.1 kHz (A, B, C, D) Measurement range: 0.9 to 1.1 kHz Operational error: 0.1% (based on voltage) Nominal values: RIN: 1 MΩ 0.9 to 1.1 kHz UCP+ >2 V, UCP- <-2 V
Voltage
Choose the voltage require to operate the valve.AC stands for alternating current, DC for direct current.
Display range: -15 to 15 V Measurement range: -15 to -2 V, 2 to 15 V Operational error: ±0.5% Nominal values: RIN: 1 MΩ 0.9 to 1.1 kHz UCP+ >2 V, UCP- <-2 V
PWM Duty Cycle
Display range: 2 to 98% Measurement range: 3 to 97% Operational error: ±5 digits Nominal values: RIN: 1 MΩ 0.9 to 1.1 kHz UCP+ >2 V, UCP- <-2 V
Current Indication
Display range: 0 to 80 A Operational error: Based on duty cycle Nominal values: RIN: 1 MΩ 0.9 to 1.1 kHz UCP+ >2 V, UCP- <-2 V
CP State Indication
Display range: x1, x2 Operational error: Based on frequency Nominal values: RIN: 1 MΩ 0.9 to 1.1 kHz UCP+ >2 V, UCP- <-2 V
CP State Simulation
Display range: A Nominal values: > 900 kΩ ±0.2% Display range: B Nominal values: Upper level: 4610 Ω, ±0.2% Nominal level: 2740 Ω, ±0.2% Lower level: 1870 Ω, ±0.2% Display range: C Nominal values: Upper level: 1254.2 Ω, ±0.2% Nominal level: 881.7 Ω, ±0.2% Lower level: 611.7 Ω, ±0.2% Display range: D Nominal values: Upper level: 408.3 Ω, ±0.2% Nominal level: 245.8 Ω, ±0.2% Lower level: 130.2 Ω, ±0.2%
Fault Simulation
Display range: PE error (earth fault/PE open) Measurement range: Pass/Fail Display range: CP error E Measurement range: Pass/Fail Operational error: 0 Ω +2 Ω Display range: Diode short Measurement range: Pass/Fail Display range: Error D Measurement range: Pass/Fail
PP Resistor Measurement Type 1 with Cable (S3, R6, R7)
Display range: 50 to 499.9 Ω, 500 to 5000 Ω Measurement range: 50 to 499.9 Ω, 500 to 5000 Ω Operational error: ±1% Nominal values: Imax charge limit: 25 A
CP Resistor Measurement (R1)
Display range: 800 to 1200 Ω Measurement range: 800 to 1200 Ω Operational error: ±1%
Input electrical ratings
250 V maximum, 50/60 Hz, maximum 1 A
EV Connector
SAE J1772 socket (type 1, SP single-phase)
Internal power consumption
3W maximum
Temperature
Operating: 14 to 104°F (-10 to 40°C) Storage: -4 to 122°F (-20 to 50°C)
Relative Humidity
Operating: 10 to 85%, 32 to 104°F (0 to 40°C), non-condensing Storage: up to 95%
Altitude
9842.5' (3000 m)
Safety
IEC 61010-1: Pollution Degree 2, IEC 61010-2-030, CAT III 300 V, Protection Class II
Ingress Protection
IP40
Frequency Range
2400 to 2483.5 MHz
Output Power
<100 mW
International
IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or uses conductively-coupled radio frequency energy that is necessary for the internal function of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low-voltage power supply network that supplies buildings used for domestic purposes. There may be potential difficulties in ensuring electromagnetic compatibility in other environments due to conducted and radiated disturbances. Caution: This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Emissions that exceed the levels required by CISPR 11 can occur when the equipment is connected to a test object.
USA (FCC)
47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Battery
4 x AA/IEC LR6 alkaline or IEC HR6 NiMH
Dimensions
Approximately 10.35 x 4.84 x 2.48" (263 x 123 x 63 mm) without the TY1
Weight
Approximately 2 lbs (0.9 kg), without the TY1 connector or 3 lbs (1.4 kg) with the TY1 connector
