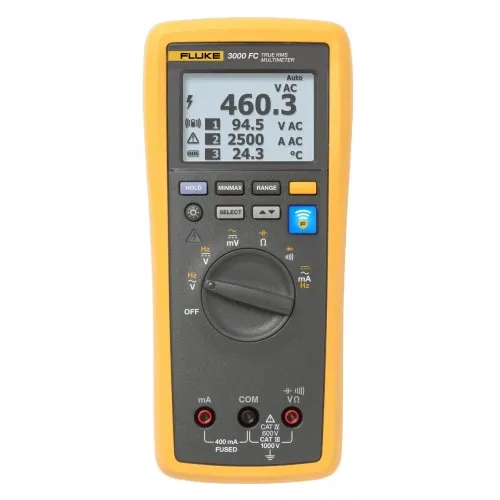

Fluke Connect 3000FC Wireless Digital Multimeter

Part Number : 3000FC

Brand :
Fluke

Part of the Fluke Connect team of wireless tools, capable of communicating with up to three modules at one time. Features a measurement range from 0.5A to 400A.

View all

KWD 100.440

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 3000-FC Offers Safety and productivity are key to any job. The reliable Fluke 3000 FC wireless multimeter is the ideal solution for professional technicians. Independently tested for safe use in CAT IV 600 V, CAT III 1000 V environments, the Fluke 3000 FC has all the features you need to troubleshoot and repair many problems in electrical and electronic systems. The Fluke 3000 FC works with the Fluke Connect® software system to keep you safe from hazardous measurement situations by allowing you to read your measurements from afar. Flexibility to grow your wireless test tool system. The wireless digital multimeter functions as a hub for Fluke Connect® wireless modules so you have the versatility to add to your wireless test tool system how you want, when you want. The 3000 FC can display its own measurements plus readings from up to three modules tools simultaneously from up to 20 meters away. Manage your data more easily. With this Fluke Connect®-enabled multimeter, you can connect to your mobile device or PC for further analysis and reporting. Fluke Connect® software also helps you pinpoint intermittent faults faster by logging and trending measurements. With more and more of a need to integrate reporting and documentation of your facilities' health, the Fluke Connect® software system allows you to view different measurements—thermal, mechanical and electrical—from the same piece of equipment at the same time. Features Productivity Communicate with your iOS (4s and later) and Android™ (4.3 and up) devices with the new Fluke Connect mobile app Wireless technology allows connectivity between your phone, PC, and all Fluke Connect enabled test tools Let your team see what you see in an instant with ShareLive video call Save money and time by taking multiple measurements simultaneously Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules View results on your computer with the PC Adapter Work with fewer interruptions by recording multiple sessions before downloading. Data is saved to a PC in .csv format (comma separated variable) file format for easy viewing at your convenience Capture readings at different intervals, with user-set recording intervals from one second to one hour Future proof your investment by adding functionality to the 3000 FC DMM when you need it Convenience Send and communicate test data to your manager and coworkers to assess abnormal system response in seconds Have all asset test results at your fingertips after downloading to your PC for future asset performance tracking and reliability programs See multiple measurements on one screen at one time (DMM and three modules, Ti200/300/400 and five modules) No more writing data down. Capture up to 65000 sets of min/max/avg readings over single or multiple logging sessions using the recording capability. Each reading and session is time stamped Avoid awkward or uncomfortable measurement positions. Set up the measurement once, step back and read it as many times as you want, when you want View up to 6 live readings at once on the Fluke Connect mobile app or a PC to get a complete understanding of the situation Easily see backlit displays in dark or dimly lit work environments Choose auto or manual ranging Use the optional Tpak Magnetic Hanger for even more hands-free working Integrated holster protects the meters, while probe holders keep accessories organized Safety Be in multiple places at once, reducing the risk of arc flash by separating yourself from hazardous measurement situations Fluke 3000 FC meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards AC Current Clamp module and AC/DC Current Clamp module 600 V CAT III; AC Voltage Module, DC Voltage Module, and iFlex Clamp Meters 600 V CAT IV/1000 CAT III

Downloads

Fluke_Multimeter_Datasheet_28.pdf

pdf
Download

Specifications

Range
  • 600.0 mV 6.000 V 60.00 V 600.0 V 1000 V
  • 600 Ω
  • 600.0 Ω 6.000 kΩ 60.00 kΩ 60.00 kΩ 600.0 kΩ 50.00 MΩ
  • 2.000 V
  • 1000 nF 10.00 µF 100.0 µF 9999 µF
  • 60.00 mA 400.0 mA
  • 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz
Resolution
  • 0.1 mV 0.001 V 0.01 V 0.1 V 1 V
  • 1 Ω
  • 0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ
  • 0.001 V
  • 1 nF 0.01 µF 0.1 µF 1 µF
  • 0.01 mA 0.1 mA
  • 0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz
Accuracy
  • 1.0 % + 3 from 45 Hz to 500 Hz 2.0 % + 3 from 500 Hz to 1 kHz
  • 0.09 % + 2 0.09 % + 2 0.15 % + 2
  • Meter beeps at <25 Ω, beeper detects opens or shorts of 250 µs or longer.
  • 0.5 % + 2 @ 600.0 Ω 0.5% + 1 from 6.000 to 600.0 kΩ 1.5 % + 3 @ 50.00 MΩ
  • 1 % + 2
  • 1.2 % + 2 from 1000 nF to 100 µF 10 % Typical @ 9999 µF
  • AC: 1.5 % + 3 from 45 Hz to 1 kHz DC: 0.5 % + 3
  • 0.1 % + 1
  • DC Functions: ±12 counts for changes >350 ms in duration AC Functions: ±40 counts for changes >900 ms in duration
Maximum Voltage Between any Terminal and Earth Ground
1000 V DC or AC RMS
Fuse Protection from A Inputs
0.44 A (44/100 A, 440 mA) 1000 V FAST Fuse Fluke Specified Part Only
Display (LCD)
Update Rate: 4/sec Volts, Amps, Ohms: 6000 Counts Frequency: 10,000 Counts Capacitance: 1,000 Counts
Battery Type
3 x AA Alkaline Batteries, NEDA 15A IEC LR6
Battery Life
250 Hours Minimum
RF Communications
2.4 GHZ ISM Band
RF Communication Range
Open Air, Unobstructed: Up to 20m Obstructed, Sheetrock Wall: Up to 6.5m Obstructed, Concrete Wall, or Steel Electrical Enclosure: Up to 3.5m
Temperature
Operating: -10 to 50°C Storage: -40 to 60°C
Temperature Coefficient
0.1 x (Specified Accuracy)/°C (<18°C or >28°C)
Relative Humidity
0 to 90% (0 to 35°C) 0 to 75% (35 to 40°C) 0 to 45% (40 to 50°C)
Altitude
Operating: 2,000 m Storage: 12,000 m
Electromagnetic Compatibility EMI, RFI, EMC, RF
EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249, FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE
Safety Compliance
ANSI/ISA 61010-1 / (82.02.01): 3rd Edition CAN/CSA-C22.2 No 61010-1-12: 3rd Edition UL 61010-1: 3rd Edition IEC/EN 61010-1:2010
Certifications
CSA, FCC, CE
Ingress Protection (IP) Rating
IP54
Pollution Degree
2
Dimensions
4.75 x 9.3 x 20.7 cm (1.87 x 3.68 x 8.14")
Weight
340 g (12 oz)
