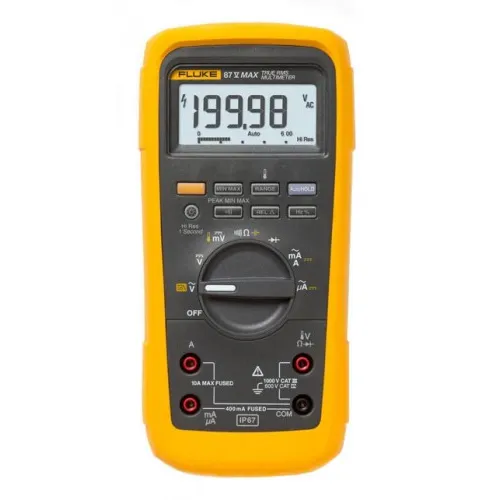

Fluke 87V-MAX True RMS Digital Multimeter with built-in thermometer

Part Number : 87V-MAX

Brand :
Fluke

Troubleshoot most electrical problems with this True RMS digital multimeter. This unit features an IP67 rating, making it waterproof and dustproof. Additionally, it is built to withstand a 13' (4 m) drop making it ideal for tough environments.

View all

KWD 150.660

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 87V-MAX OffersTroubleshoot most electrical problems with this True-rms multimeter capable of operating in temperatures from -40 to 131°F (-40 to 55°C). In addition, this multimeter features a low-pass filter for accurate measurements on VFDs and shielding to block readings from high-frequency and high-energy noise.FeaturesTrue-rms AC voltage and current for accurate measurements on non-linear signalsMeasure up to 1,000 V AC and DCMeasure up to 10 A (20 A for 30 seconds)Frequency to 200 kHzBuilt in temperate function conveniently allows you to take temperature readings without having to carry a separate instrument using supplied thermocoupleMinimum/maximum/average recording, plus 250 ?s Peak minimum-maximum to capture variations automaticallyUnique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipmentLarge display digits, 2-level bright white backlight and backlit keypad buttons for increased visibilityHi resolution 19,999 count display modeLong battery life (800 hours)IP67 ratedFully waterproof and dust proof, to work reliably in all the places that you need to work.Withstands drops up to 13 feet (4 meters)Fluke's most rugged digital multimeter. The 87V MAX is built with an industrial strength case and a removable holster. The holster doubles as a test probe holder for one-handed operation.Works as long as you doThe 87V MAX provides double the battery life of the original 87V.Withstands heat and coldThe meter has an extended operating temperature range of -40 (for up to 20 minutes) to 131°F [-40 (for up to 20 minutes) to 55°C].ApplicationsMotor drives

Downloads

Fluke_Multimeter_Datasheet_9.pdf

pdf
Download

Specifications

Voltage
Choose the voltage require to operate the valve.AC stands for alternating current, DC for direct current.
DC: Maximum resolution: 0.1 mV to 1000 V Accuracy: 0.05 % + 1 AC: Maximum resolution: 0.1 mV to 1000 V Accuracy: 0.7 % + 4
Current
DC: Maximum resolution: 0.1 μA to 10 A to 1000 V Accuracy: 0.2 % + 2 AC: Maximum resolution: 0.1 μA to 10 A Accuracy: 1.0 % + 2
Resistance
Maximum resolution: 0.1 Ω to 50 MΩ
Capacitance
0.01 nF to 9999 μF
Frequency
0.5 Hz to 199.99 kHz
Temperature
-328 to 1994°F (-200 to 10905°C)
Low Pass Filter (Measurement on VFDs)
Yes
Peak Transient Capture
250 μs
Minimum/Maximum/Average
Yes
Reading Hold
Yes
Relative Readings (Zero)
Yes
Safety Rating
CAT IV 600 V/CAT III 1000 V
Display
Bar graph/backlight
Drop test
13' (4 m) drop test
Dustproof/Waterproof
Yes, IP 67 rated
Power
Type: Three AA batteries Life: 800 hours
Dimensions
2.4 x 4.3 x 8.5" (6.0 x 10.1 x 21.5 cm)
Weight
1.54 lbs (698.5 g)
