Fluke 835 Laser Belt Alignment Tool, 5255306

Part Number : 5255306

Brand :
Fluke

Reduce downtime on rotating machinery and avoid misalignment with this laser belt alignment tool. With powerful magnets for effortless mounting, the alignment tool increases reliability and provides reliable and accurate readings.

View all

KWD 630.000

Quantity
Description
Specifications
Downloads
Related products

Description

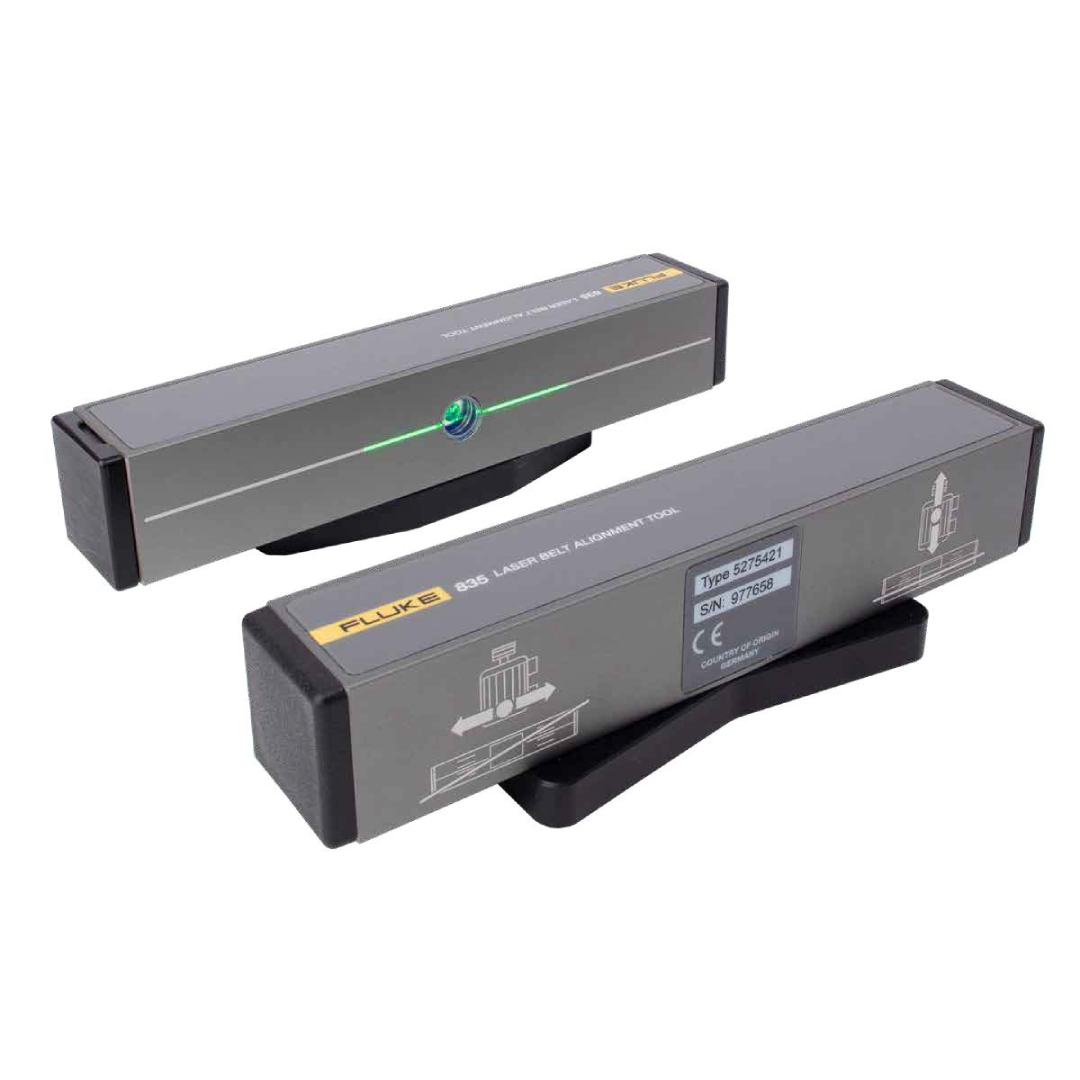

The Fluke 835 Laser Belt Alignment Tool is the ideal tool to precision-align belt-driven machines in your facility.

Get more from your belt-driven systems through proper machine alignment. Misalignment can take years off your machinery’s useful lifespan — and lead to time and money spent on unnecessary repairs and replacements, as well as costly unplanned downtime.

Efficient and accurate pulley alignment

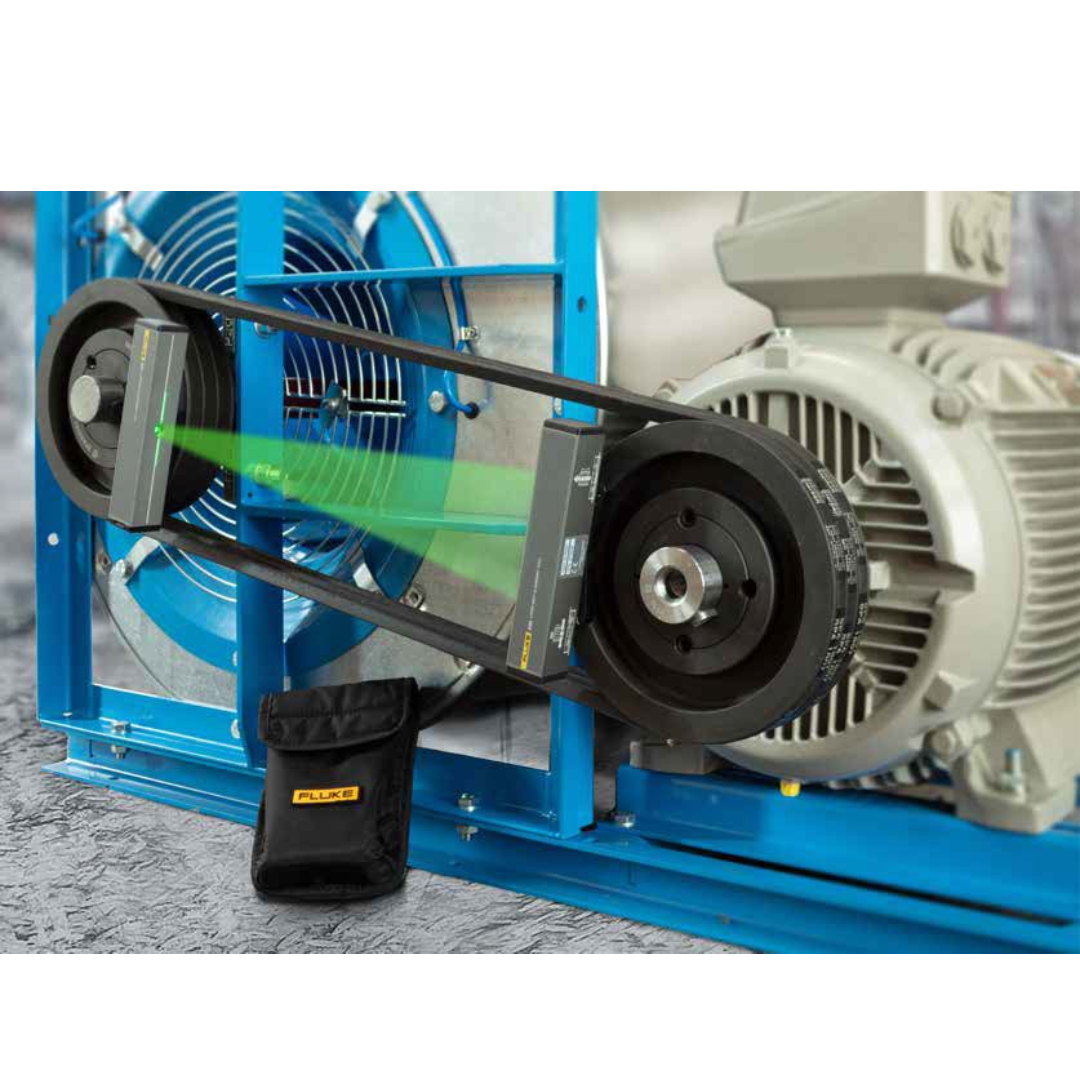

The Fluke 835 Laser Belt Alignment Tool provides fast, easy, and accurate pulley alignments to help keep your plant up and running. In just a few steps, you can precisely align all of the belt-driven machines in your plant.

With the Fluke 835, a single operator can quickly and easily achieve precision alignment for all your standard belt-driven machines whose alignment has never been prioritized. The benefits of precision alignment include longer-lasting parts, such as bearings, belts, and seals, as well as savings from reduced production loss and energy waste.

Key features

  • Time-saving pulley alignment method requires no cross-check
  • Shows offset, vertical, and horizontal angles simultaneously
  • Live corrections validate when precision alignment is achieved
  • Strong magnets mount onto virtually any pulley face
  • Efficient, accurate one-person operation with no training needed

Downloads

Fluke 835 Laser Belt Alignment Tool Ds.pdf

pdf
Download

Safety Sheet 835.pdf

pdf
Download

Quick Reference Guide 835.pdf

pdf
Download

Specifications

Accuracy
0.2°
Laser Wavelength
505 to 535 nm (green is more visible)
Output Power
<1.0 mW
Measuring Distance
32' (10 m) between units
Laser Line Length
22' (7 m) at 16' (5 m) distance
Controls
Laser ON/OFF rocker switch
Operating Time
6 hours
Temperature
Operating: 23 to 104°F (-5 to 40˚C) Storage: 14 to 158°F (-10 to 70˚C)
Mounting Method
  • Strong magnets
  • Strong Magnets
Housing
Gray anodized aluminum
Battery Type
4 x AAA alkaline batteries
Classification Class
2
Dimensions
  • 1.4 x 1.5 x 6.7" (37 x 40 x 170 mm)
  • 1.45 x 1.5 x 6.69" (37 x 40 x 170 mm)
Weight
  • 0.6 lbs (0.3 kg)
  • 0.59 lbs (0.27 kg)
Reflector Size
0.8 x 1.2" (21 x 32 mm)
