Fluke 805 Vibration Meter, 4094385

Part Number : 4094385

Brand :
Fluke

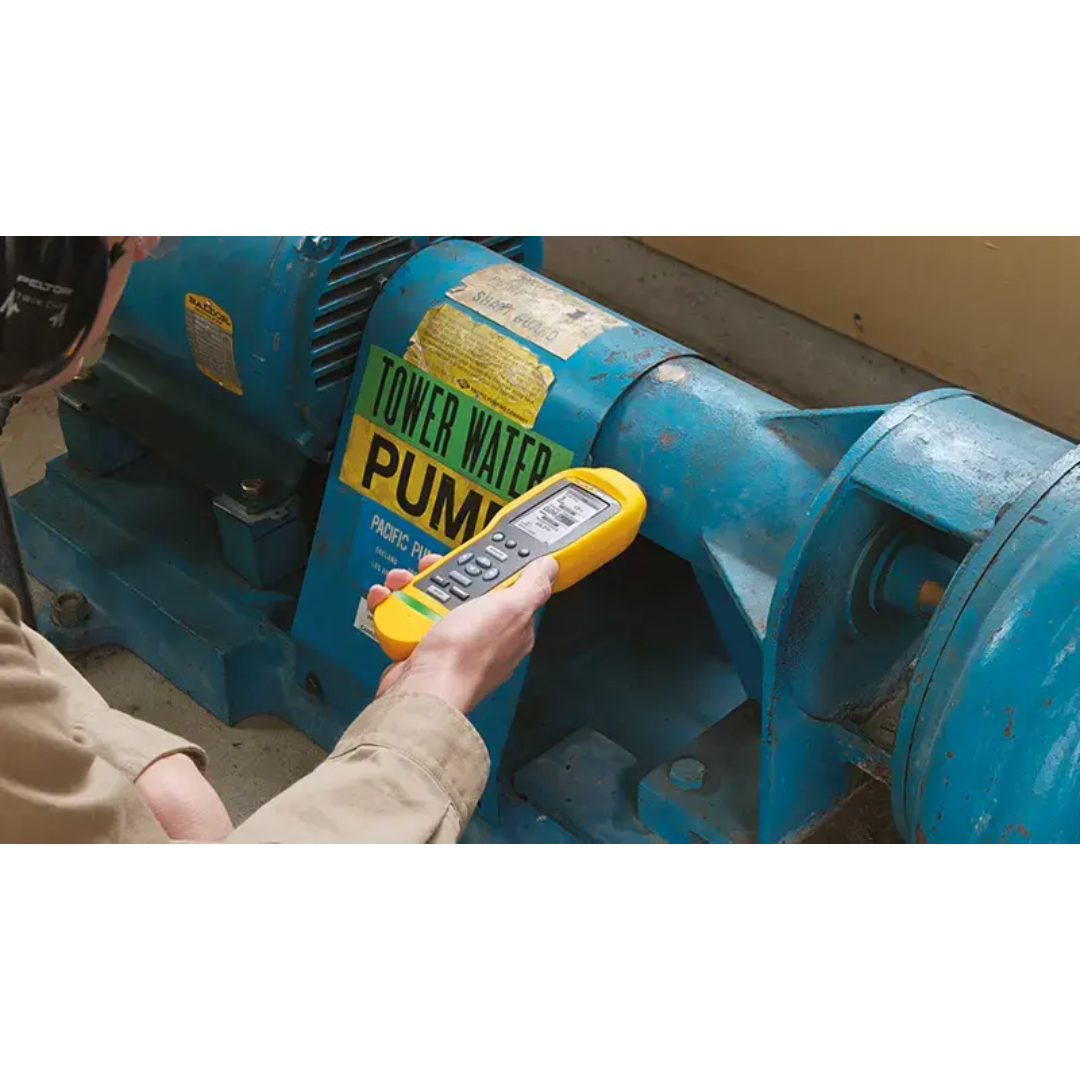

Rugged and reliable, this portable multifunction vibration meter checks bearings and overall vibrations. Get quantifiable information on the overall health of motors and other rotating equipment with this vibration screening device that features the powerful Fluke Connect software.

View all

KWD 438.250

Quantity
Description
Specifications
Downloads
Related products

Description


The Reliable, Repeatable, Accurate Way to Check Bearings and Overall Vibration

Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available for frontline mechanical troubleshooting teams that need repeatable, severity-scaled readings of overall vibration and bearing condition.

What Makes the 805 the Best Choice?

  • A meter – not a pen – that measures overall vibration as well as specific variables like bearing condition and temperature, to provide a more complete picture
  • A combination vibration and force sensor tip that compensates for user variance (force or angle) yielding accurate, repeatable readings
  • A four-level severity scale and onboard processor calculate bearing condition and overall vibration using easy-to-understand textual alerts (Good, Satisfactory, Unsatisfactory, Unacceptable)
  • Sensor sensitivity can read a wide range of frequencies (10 to 1,000 Hz and 4,000 to 20,000 Hz) covering most machine and component types
  • Straight-forward user interface that minimizes the user inputs to RPM range and equipment type

Other useful features:

  • Measures overall vibration (10 Hz to 1,000 Hz) for acceleration, velocity, and displacement units of measurement for a wide variety of machines
  • Provides Crest Factor+ technology for reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
  • Compares vibration levels with ISO-10816 severity scales
  • Allows you to view trending in Microsoft® Excel using pre-built templates
  • Features colored lighting system (green, red) and on-screen comments to indicate how much pressure needs to be applied to take measurements
  • Measures temperature with Spot IR Sensor to increase diagnostic capabilities
  • Holds and saves up to 3,500 measurements in on-board memory
  • Provides external accelerometer support for hard to reach locations
  • Allows you to export data via USB
  • Provides audio output for listening to bearing tones directly
  • Features built-in flashlight for viewing measurement locations in dark areas
  • Provides large high-resolution display for easy navigation and viewing

Key features

  • Reliable, repeatable, accurate device for checking bearings and overall vibration
  • Features innovative sensor design that minimizes measurement variations caused by device angle or contact pressure
  • Provides consistent data quality at both low and high frequency ranges
  • Offers four-level severity scale to assess urgency of problems and bearing condition

Downloads

Fluke 805 Vibration Meter.pdf

pdf
Download

Specifications

Low Frequency Range (overall measurement)
10 to 1000 Hz
High Frequency Range (CF+ measurement)
4000 to 20,000 Hz
Severity Levels
Good, satisfactory, unsatisfactory, unacceptable
Vibration Limit
50 g peak (100 g peak-peak)
A/D Converter
16-bit
Signal to Noise Ratio
80 dB
Sampling Rate
Low frequency: 20,000 Hz High frequency: 80,000 Hz
Real Time Clock Backup
Coin battery
Sensitivity
100 mV g ±10%
Measurement Range
0.01 to 50 g
High Frequency Range
4000 to 20,000 Hz
Resolution
0.01 g
Accuracy
  • At 100 Hz ±5% of measured value
  • ±2°C (4°F)
Acceleration
g, m/sec2
Velocity
in/sec, mm/sec
Displacement
mils, mm
Range
-20 to 200°C (-4 to 392°F)
Focal Length
Fixed, at ~3.8 cm (1.5")
Frequency Range
10 to 1000 Hz
Bias Voltage (to supply power)
20to 22 V DC
Bias Current (to supply power)
Maximum 5 mA
External interfaces
USB 2.0 (full speed) communication
Data capacity
Database on internal flash memory
Upgrade
Through USB
Memory
Up to 3,500 measurements
Electrostatic discharge: burst
Standard EN 61000-4-2
Electromagnetic interference
Standard EN 61000-4-3
RE
Standard CISPR 11, Class A
Operating temperature
-20°C to 50°C (-4°F to 122°F)
Storage temperature
-30°C to 80°C (-22°F to 176°F)
Operating humidity
10% to 95% RH (non-condensing)
Operating/storage altitude
Sea level to 3,048 meters (10,000 feet)
IP rating
IP54
Vibration limit
500 g peak
Drop test
1 meter
Battery type
AA (2) Lithium Iron Disulfide
Battery life
250 measurements
Size (L x W x H)
24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in)
Weight
0.40 kg (0.89 lb)
Connectors
USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector)
