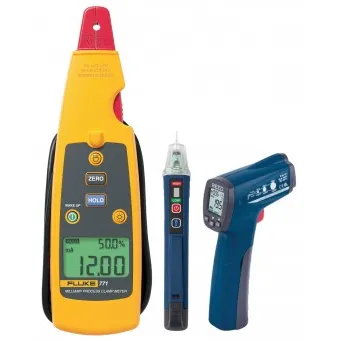

Fluke 771 Milliamp Process Clamp Meter Kit

Part Number : 771-KIT2

Brand :
Fluke

Best in class clamp meter with 0.2% accuracy, 0.01mA resolution and sensitivity. This value added kit includes the REED R2300 Infrared Thermometer and the REED R5110 Non-Contact Voltage Detector.

View all

KWD 302.560

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 771 Offers The 771 mA clamp meter is designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4 to 20 mA loops without breaking the loop or bringing down the system. Features Measure 4 to 20 mA signals without "breaking the loop" Best in class 0.2% accuracy 0.01 mA resolution and sensitivity Measure mA signals for PLC and control system analog I/O Dual backlit display with both mA measurement and percent of 4 to 20 mA span Detachable clamp with extension cable for measurements in tight locations Measure 10 to 50 mA signals in older control systems using the 99.9 mA range Automatically change the 4 to 20 mA output for remote testing Power saving features, auto-off, backlight timeout extend battery life REED R2300 Infrared Thermometer This infrared thermometer features a 12:1 distance to spot ratio and is capable of measuring temperatures up to 752°F (400°C). The R2300 is an affordable non-contact measurement solution able to quickly and efficiently measure the temperature of hot, hazardous or hard-to reach objects from a safe distance. Features Built-in laser pointer identifies target area User selectable °F or °C 12:1 distance to spot size ratio Digitally adjustable emissivity Max and Min readings Backlit display High and low alarms Low battery indication and auto shut off REED R5110 Non-Contact Voltage Detector with Flashlight This Voltage Detector has the ability to detect the presence of AC voltage from a safe distance. The R5110 features two voltage ranges allowing it to detect both high (90 to 1000V) and low (24 to 1000V) AC voltage wiring. Features Suitable for receptacles or against insulated wire Double insulated housing for increased safety Audible (buzzer) and visual (LED) indicators Built-in flashlight Pocket clip Auto shut off Cat. IV 1000V safety rating

Downloads

771-KIT2.pdf

pdf
Download

Specifications

Resolution/Range
  • 0 to 20.99 mA
  • 21.0 mA to 100.0 mA
Accuracy
  • 0.2% + 2 counts
  • 1% + 5 counts
Diameter of Measurable Conductor
0.177" (4.5 mm) max
IP Rating
IP 40
