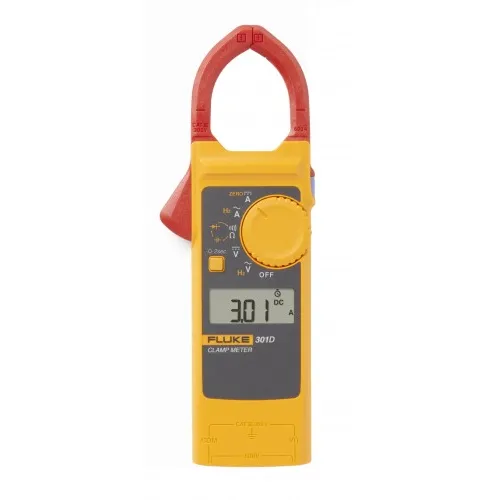

Fluke 301D/ESP Palm-Sized AC/DC Clamp Meter with slim body and thin jaw arm, 600 A
Part Number : 301D/ESP
Brand :
![Fluke]()
Compact and lightweight, this palm-sized clamp meter is small enough to fit your shirt pocket yet rugged enough to withstand daily use. Moreover, this meter is rated CAT III 300 V and offers AC/DC current and voltage, resistance, and continuity functions, making it ideal for troubleshooting electrical issues.
View all
KWD 38.920
Quantity
Description
Specifications
Downloads
Related
products
Description
Fluke 301D/ESP OffersThe Fluke 301D AC/DC clamp meter is a versatile tool that is designed to make your job easier. Its lightweight and compact body makes it easy to carry in your pocket, and its slim and thin jaw allows it to fit into tightly packed wires.With the ability to test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode testing, the 301D can handle multiple test needs in a single tool. Its AC/DC function can be used for a wide range of applications, including those requiring DC testing, such as photovoltaics (PV) and wind power, communications, data centers, and more.FeaturesCAT III 300V safety rating: Ensuring your safety when working on electrical systems in common residential and commercial settingsThe body weighs only 0.34 lbs (154 g) and is 0.63" (16 mm) thick, which is light and portable and can be put into a pocketThe slim and thin jaw of only 0.39" (10 mm) can easily fit into tightly packed wires600 A AC/DC range with 0.01 A high resolutionCAT III 300V Safety RatingTests current, voltage, resistance, and continuityMeasures frequency (voltage and current), capacitance, and diodesBacklightFluke 301D Complete test functionsAC and DC voltage measurementAC and DC current measurementResistance measurementContinuity measurementCapacitance measurementDiode measurementFrequency measurementDisplay measurement holdApplicationsQuick troubleshooting of electrical issuesEfficient repairsElectrical system for residential, commercial and industrial
Downloads
Specifications
AC (45 to 400 Hz)
Current:
Range: 60.00 A
Resolution: 0.01 A
Accuracy: 2% + 10
Range: 600.0 A
Resolution: 0.1 A
Accuracy: 2% + 5
Voltage:
Range: 600.0 V
Resolution: 0.1 V
Accuracy: 1.5% + 5
DC
Current:
Range: 60.00 A
Resolution: 0.01 A
Accuracy: 2% + 10
Range: 600.0 A
Resolution: 0.1 A
Accuracy: 2% + 5
Voltage:
Range: 600.0 V
Resolution: 0.1 V
Accuracy: 1% + 5
Resistance
Range:
600.0 Ω
6.000 kΩ
60.00 kΩ
Accuracy: 1% + 5
Voltage Frequency
Range:
9.999 Hz
99.99 Hz
999.9 Hz
9.999 kHz
99.99 kHz
Accuracy: 0.1% + 3
Current Frequency
Range: 45 to 400 Hz
Accuracy: 0.1% + 3
Capacitance
Range:
9.999 uF
99.99 uF
999.9 uF
Accuracy:
2% + 5
5% + 5
5% + 5
Diode
Range: 3.000 V
Accuracy: 10%
Temperature
Operating: 14 to 122°F (-10 to 50°C)
Storage: -22 to 140°F (-30 to 60°C)
Relative Humidity
Operating:
Non-condensing: <50°F (<10°C)
≤90% RH: 50 to 86°F (10 to 30°C)
≤75% RH: 86 to 104°F (30 to 40°C)
≤45% RH: 104 to 122°F (40 to 50°C)
Altitude: 6562' (2000 m)
Storage: 39,370' (12,000 m)
Maximum Voltage Between any Terminal and Earth Ground
300 V
Maximum Differential Voltage between V/Ω and COM Terminals
600 V
Display (LCD)
6000 counts, updates 3 times per second
Auto Power Off Time
20 minutes
Jaw Opening
1.34" (34 mm)
Clamp Arm Size
0.39 x 0.39" (10 x 10 mm)
Ingress Protection Rating
IP30
Safety
IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution degree 2
Electromagnetic Environment
IEC 61326--1: Portable
Battery
Type: 2 AAA, IEC LR03
Life: 500 hours minimum
Dimensions
7.48 x 2.05 x 0.63" (190 x 52 x 16 mm)
Weight
0.34 lbs (154 g)
