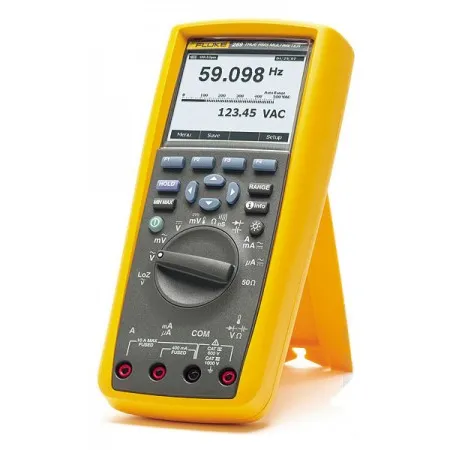

Fluke 289 True RMS Industrial Data Logging Multimeter with TrendCapture

Part Number : 289

Brand :
Fluke

Ideal for solving problems in electronics, plant automation, power distribution, and electro-mechanical equipment, this multimeter is also compatible with the Fluke Connect app. Additionally, this tool features TrendCapture, which lets users log data and graphically review up to 10,000 recorded events and logged readings.

View all

KWD 225.990

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 289 OffersThis True RMS Logging Multimeter helps you find little problems before they become big ones For use for solving complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment, this multimeter also features TrendCapture. This gives the user the ability to log data and graphically review up 10,000 recorded events and logged readings. Additionally, zoom on trend provides a 14 times zoom to view and analyze data without needing a PC. Since this instrument is Fluke Connect-compatible, users can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Additionally, users can share readings with their team in an instant anytime, from anywhere with ShareLive™ video call. It can help you solve problems faster and minimize downtime. Features Share results with your team using ShareLive™ video call (requires ir3000 FC wireless connector [sold separately] and Fluke Connect mobile app) TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy Low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment LoZ volts, low impedance voltage function for eliminating ghost voltages Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event Large 50,000 count, ¼ VGA dot matrix display with white backlight Logging function with expanded memory for unattended monitoring of signals over time Using on-board TrendCapture users can graphically review logged readings without needing a PC Store up to 15,000 recorded events Save multiple logging sessions before PC download is necessary Two terminal 50 ? range with 1 M? resolution, 10 mA source current On board help screens for measurement functions Real time clock for automatic time stamping of saved readings Relative mode to remove test lead resistance from low ohms or capacitance measurements True RMS AC voltage and current for accurate measurements on non-linear signals Measure up to 10 A (20 A for 30 seconds) 100 mF capacitance range Peak capture to record transients as fast as 250 µs Works with optional FlukeView forms to enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents Applications Electronics Plant automation Power distribution Electro-mechanical equipment

Downloads

Fluke_Multimeter_Datasheet_18.pdf

pdf
Download

Specifications

Range/Resolution
  • 50.000 to 500.00 mV 5.0000 to 50.000 V 500.00 to 1000.0 V
  • 500.00 to 5000.0 µA 50.000 to 400.00 mA 5.0000 to 10.000 A
  • 328 to 2462°F (-200 to 1350°C)
  • 50.000 to 500.00 Ω 5.0000 to 50.000 kΩ 500.00 kΩ to 5.0000 MΩ 50.00 to 500.0 MΩ
  • 1.000 to 10.00 nF 100.0 nF to 1.000 µF 10.00 to 100.0 µF 1000 µF to 100 mF
  • 99.999 to 999.99 Hz 9.9999 to 999.99 kHz
Basic Accuracy
  • 0.025%
  • 0.4% (True RMS)
  • 0.05%
  • 0.6% (True RMS)
  • 1.0%
  • 0.005%
Maximum Voltage Between any Terminal and Earth Ground
1000 V
Battery Type
6 x AA Alkaline batteries, NEDA 15A IECLR6
Battery Life
100 hours minimum, 200 hours in logging mode
Operating Temperature
-4 to 131°F (-20 to 55°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Relative Humidity
0 to 90% (32 to 98.6°F [0 to 37°C]) 0 to 65% (98.6 to 113°F [37 to 45°C]) 0 to 45% (113 to 131°F [45 to 55°C])
Electromagnetic compatibility
EMC EN61326–1
Vibration
Random vibration per MIL-PRF-28800F Class 2
Shock
3.3 (1 m) drop per IEC/EN 61010–1 3rd Edition
Dimensions
8.75 x 4.03 x 2.38" (222 x 102 x 60 mm)
Weight
1.92 lbs (870.9 g)
