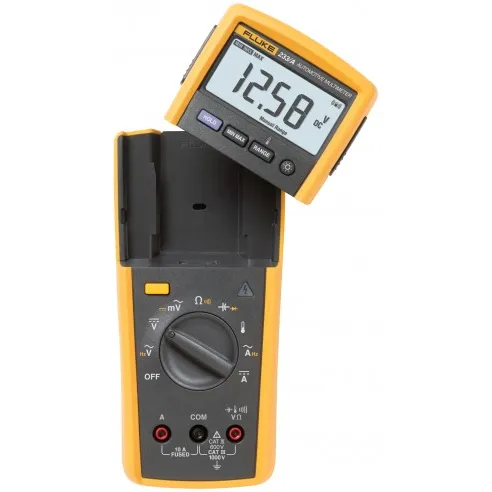

Fluke 233 Remote Display Multimeter with detachable display

Part Number : 233

Brand :
Fluke

Comes with a removable display which allows users to be two places at once and reduce the risk of arc flash by separating yourself from hazardous measurement situations. Also, this remote display multimeter is ideal for taking measurements in hard-to-reach areas, moving machinery, or in cleanrooms and features True RMS.

View all

KWD 131.820

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 233 OffersTrue RMS remote display digital multimeter gives you ultimate flexibility in tough measurement situations The removable display gives users the ability to take measurements in hard to reach or restricted access areas. It also allows users to be in two places at once and decreases the risk of arc flash by separating users from hazardous measurement situations. Simply connect the multimeter to the test point and then place the display in a location up to 33' (10 m) away from where you can see it. This remote display multimeter is ideal for applications where the measurement point is disconnected from controls or where users can't stay near the meter during measurements due to hazards, moving machinery, or in clean rooms. Additionally, it features True RMS AC voltage and current for accurate measurements on non-linear signals. Features True-rms AC voltage and current for accurate measurements on non-linear signals Measure up to 1000 V AC and DC Measure up to 10 A (20 A for 30 seconds) 10,000 µF capacitance range Frequency to 50 kHz Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument Resistance, continuity and diode test Low power wireless technology allows the display to be carried up to 33' (10 m) away from the point of measurement for added flexibility No interference with measurements The removable magnetic display can be conveniently mounted where it is easily seen Make measurements without holding the meter to improve visual focus on probes and augment safe electrical measurements Use as a conventional multimeter when the display is connected Radio transmitter automatically turns off when the display is connected to the meter Auto power off maximizes battery life Min/max and average recording to capture variations automatically Easy to read display with large digits and bright backlight Battery life approximately 400 hours

Downloads

Fluke_Multimeter_Datasheet_17.pdf

pdf
Download

Specifications

DC Voltage
Range: 0.1 mV to 1000 V Accuracy: 0.25% + 2
AC Voltage
Range: 0.1 mV to 1000 V Accuracy: 1.0% + 3
DC Current
Range: 0.1 mA to 10 A Accuracy: 1.0% + 3
AC Current
Range: 0.1 mA to 10 A Accuracy: 1.5% + 3
Resistance
Range: 0.1 Ω to 40 MΩ
Counts
6000
Capacitance
1000 nF to 9999 µF
Frequency
0.1 Hz to 50.00 kHz
Temperature
-40 to 752°F (-40 to 400°C)
AC True RMS
Yes
Ranging
Auto/Manual
Backlight
Yes
Min/Max/Avg
Yes
Removable Display
Yes
External Protection
Rubber overmold
Power
3 x AA alkaline batteries for main body 2 x AA alkaline batteries for display
Battery Life
400 hours
Wireless Frequency
2.4 GHz ISM Band 32.8' (10 m) range
Safety Rating
CAT IV 600 V , CAT III 1000 V
Dimensions
2.08 x 2.08 x 7.6" (5.3 x 5.3 x 19.3 cm)
Weight
1.3 lb (604 g)
