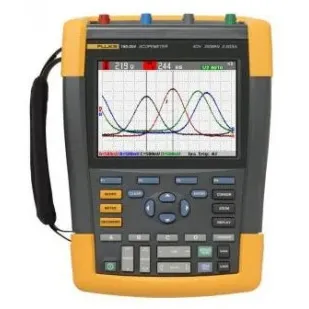

Fluke 190-504/FPC Color ScopeMeter with one-year Premium Care, 500 MHz, 4-channel

Part Number : 190-504/FPC

Brand :
Fluke

Effortlessly diagnose, view, and capture complex waveforms, induced noise, intermittent events, signal fluctuations, or drift with this high-performance portable oscilloscope. Rugged and easy to use, this oscilloscope features a bright color display, four channels, a bandwidth of 500 MHz, and a one-year Premium Care plan.

View all

KWD 2,427.610

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 190-504/FPC Offers Accurate and versatile, this portable oscilloscope provides a fast sampling rate of up to 5 GS/s, a 200 ps resolution, and deep memory of 10,000 samples per channel. Perform timing or amplitude-related measurements on three phases or three-axis control systems, or compare and contrast multiple test points in a circuit under test. Features Up to four independent floating isolated inputs, up to 1000 V Up to 5 GS/s real time sampling (channels used) Deep memory: 10,000 points per trace waveform capture (scope mode) CAT III 1000 V/CAT IV 600 V safety rated instrument for industrial environments Up to seven hours of battery operation Large, bright color display is easy to view in nearly any environment Easy to store and view historical data and transfer to a PC via USB or Wifi Convenient battery access door for quick battery swaps in the field IP51 rating, dust and drip-proof Connect-and-View triggering for intelligent, automatic triggering on fast, slow and even complex signals Frequency spectrum using FFT-analysis Automatic capture and REPLAY of 100 screens ScopeRecord mode gives 30,000 points per input channel for low frequency signal analysis TrendPlot Paperless Recorder mode with deep memory for longterm automatic measurements Measure from mV to kV safely Independently isolated inputs allow you to make measurements in mixed circuits having different ground references reducing the risk of accidental short circuits. Conventional bench oscilloscopes without special differential probes and isolation transformers can only reference measurements to line power earth ground. This test tool is engineered to cover a wide application range from mV to kV, so you're ready for anything from microelectronics to heavy duty higher voltage electrical applications. IP-51 rated for harsh environments Rugged and shock-proof, ScopeMeter Test Tools are built for dirty, hazardous environments. With its sealed case, it can endure dust, drips, humidity and airborne pollutants. Every time you reach for this test tool, you can be confident it will work reliably wherever your work takes you. USB and Wi-Fi connectivity It offers two USB ports, electrically isolated from measurement input circuits allowing you to quickly and easily transfer data to a PC, archive and share waveforms with OEMs, colleagues and support staff, or store waveforms, screen captures and instrument setups onto USB memory devices for later use. Easily transfer saved files via USB stick, direct connection via the USB interface or optional Wi-Fi connectivity. These files can be used for further data handling or in FlukeView-2 Software to study waveforms in greater detail. Connect-and-View triggering Connect-and-View triggering provides an instant, stable display without the need for adjusting settings. If you've used other scopes, you know how tricky triggering can be. If settings are incorrect, results can be unstable or incorrect. Connect-and-View automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable and repeatable display of virtually any signal including motor drive and control signals. It's especially fast and convenient when you're measuring a number of test points in rapid succession. TrendPlot paperless recorder - records up to 11 days to help you find intermittent faults The toughest faults to find are those that happen only once in a while. These intermittent events can be caused by bad connections, dust, dirt, corrosion, or simply broken wiring or connectors. Line outages, dips, swells and interruptions, or the starting and stopping of a motor can also cause a machine to stop. You may not be around when it happens, but this test tool will be. Plot minimum and maximum peak values and average over time Plot any combination of up to four readings including voltages, amps, temperature, frequency and phase for all inputs, all with time and date stamp to pinpoint faults ScopeRecord™ mode for high resolution waveform recording ScopeRecord memory stores up to 30,000 or more data points per channel, capturing fast intermittent events and glitches as short as 8 ns (two sets of multiple channel recordings can be stored to internal memory for later analysis). Records events like UPS, power supply or motor start-up cycles With the Stop on Trigger mode, it automatically recognizes a power failure and stores the waveform data preceding it Applications Microelectronics Troubleshooting h4.premium-care-1-yr-header{color:#bf000b;margin-top:30px;margin-bottom:2px}.row-fluid.space-between-sections.premium-care-1-yr{background-color:#eaeaea;padding:8px;box-sizing:border-box}.premium-care-1-yr strong{color:#000;font-size:19px}.fluke-premium-care-ser-image{width:30%;margin-top:0;float:right;margin-left:2%}@media (max-width:1199px){.fluke-premium-care-ser-image{margin-bottom:3px}}@media (max-width:767px){.fluke-premium-care-ser-image{width:100%;max-width:400px;float:none;padding-bottom:10px;margin-left:0}.fluke-prem-care-text-wrap{margin-bottom:-2px}} Includes Fluke Premium Care Support - One-Year Plan Reduce unplanned expenses and get the most out of your tools When you invest in quality equipment to get your jobs done, you want your money to go as far as possible. Fluke Premium Care provides coverage above and beyond your tool's original product warranty, so you don't need to worry about unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair. It's easy too! You'll receive your product with the information and register. That's it, you're covered!

Downloads

Fluke_Scope_Meters_Datasheet_4.pdf

pdf
Download

Specifications

Number of Channels
2
Bandwidth
500 MHz
Rise Time
0.7 ns
Channel Architecture
All inputs fully insulated from each other and from ground Inputs may be activated in any combination
Input Coupling
AC or DC, with ground level indicator
Input Sensitivity
With 10:1 probe, 20 mV to 1000 V/div With 100:1 probe, 200 mV to 10 kV/div Direct (1:1), 2 mV to 100 V/div
Bandwidth Limiter
20 MHz and 10 kHz
Polarity
Normal, inverted, variable
Vertical Resolution
8 bit
Accuracy at 4 s to 10 μs/div
5 mV/div to 100 V/div, ±(1.5% + 6 counts) 2 mV/div, ±(1.5 % + 10 counts)
Input Impedance
1 MΩ (±1 %)/15 pF (±2.25 pF)
Rated Maximum Floating Voltage
CAT III 1000 V/CAT IV 600 V (maximum voltage between any contact and earth-ground voltage level)
Probe Input Voltage
VPS410-II: CAT III 1000 V/CAT IV 600 V (maximum voltage between standard 10:1 probe tip and reference lead) VPS421: CAT III 1000 V/CAT IV 600 V (maximum voltage between probe tip or reference lead to GND, 2000V max between probe tip and reference lead)
Maximum BNC Input Voltage
CAT IV 300 V (maximum voltage on BNC input directly)
Memory Locations (Internal)
30 waveform memories plus 10 recording memories plus 9 screen copy memories
30 Waveform Memories
Each memory can contain up to 2 or 4 waveforms plus corresponding setups
10 Recording Memories
Each may contain: a 100 Screen Replay sequence, or a ScopeRecord Roll-mode recording (2 or 4 traces), or a TrendPlot recording of up to 4 measurements
External Data Storage
On PC, using FlukeView™-2 Software, or direct storage on external flash memory drive (maximum 32 GB) through USB host port
Screencopies
On PC, using FlukeView™-2 Software, or internally (in instrument) which can be copied on to external flash memory drive as .BMP-file, through USB host port
Volatility
Saving is done in non-volatile Flash-ROM and all data is secured, independent of battery or power status
Real-Time Clock
Provides date and time stamp information for ScopeRecord, for 100 Screen Replay sequences and for TrendPlot recordings
Design
Rugged, shock-proof with integrated protective holster Handstrap and hangstrap included as standard Kensington lock supported to lock down instrument when left unattended
Drip and Dust Proof
IP 51 according to IEC60529
Shock and Vibration
Shock 30 g, vibration (sinusoidal) 3 g/0.03 g2/Hz (Random), according to MIL-PRF-28800F Class 2
Display Size
5.3 x 3.5" (133 x 90 mm) LCD
Resolution
1120 x 765 pixels
Brightness
User-adjustable, up to 300 cd/m2
Temperature
Operating: Battery discharging: 32 to 104°F (0 to 40°C); battery charging: 0 to 40°C (32 to 104°F) Storage: -4 to 140°F (-20 to 60°C)
Humidity
32 to 50°F (0 to 10°C): non-condensing 50 to 86°F (10 to 30°C): 95% (±5%) 86 to 104°F (30 to 40°C): 75% (±5%) 104 to 122°F (40 to 50°C): 45% (±5%)
Maximum Altitude
Operating: CAT IV 600 V, CAT III 1000 V: up to 6600' (2000 m) CAT IV 300 V, CAT III 600 V, CAT II 1000 V: up to 13000' (4000 m) Storage: 40,000' (12 km)
Interfaces
Two USB-ports provided Ports are fully insulated from instrument's floating measurement circuitry USB-host port directly connects to external flash memory drive (up to 32 GB) for storage of waveform data, measurement results, instrument settings and screen copies Alternatively, this USB-A port may be used to connect a WiFi Adapter for wireless PC connectivity A mini-USB-B is provided which allows for interconnection to PC for remote control and data transfer under PC-control using FlukeView-2
Probe Calibration Output
Dedicated probe-cal output with reference contact provided, fully insulated from any measurement input channel Generator output: 1.225 Vpp/500 Hz square wave
Line Power
Universal mains adapter/battery charger BC190/830 included, with detachable 2-wire power cords 100 VAC to 240 VAC, ±10%, 50 to 60 Hz
Battery
Power: re-chargeable Li-Ion battery; battery swappable through easily accessible battery door at the rear of the instrument Type: BP291: 10.8 V, 5000 mAh Charge indicator: Battery has built-in status indicator for use with external charger, next to battery status indicator on instrument screen Operating time (with backlight low): Up to 7 hours using BP291 (included) Charging time: Five hours for BP291 Power saving functions: Auto 'power down' with adjustable power down time; automatic 'display off' with adjustable power down time; on-screen battery power indicator
Dimensions
10.5 x 7.6 x 2.8" (265 x 192 x 70 mm)
Weight
4.8 lbs (2.2 kg)
