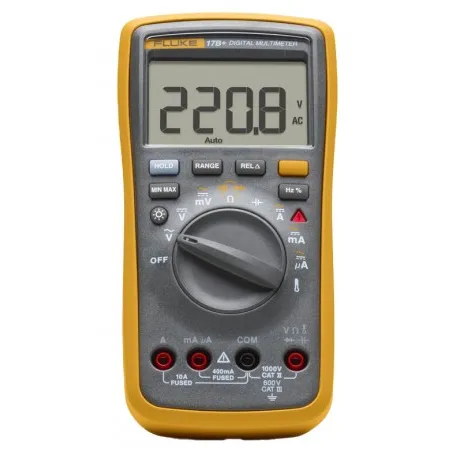

Fluke 17B+ ESP Digital Multimeter with temperature and frequency, 1000 V, 10 A

Part Number : 17B+ ESP

Brand :
Fluke

Compact and reliable, this digital multimeter is great for electricians and DIY enthusiasts diagnosing electrical issues across various systems. Prioritizing accuracy and safety, it features a CAT III 600 V safety rating and overload protection. Moreover, this meter measures up to 1000 V and 10 A and includes a thermocouple.

View all

KWD 51.460

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 17B+ ESP OffersExperience the precision, durability, and safety of a professional-grade test tool with the Fluke 17B+ digital multimeter. With this multimeter, you'll have a rugged, portable tool that's designed to be used with one hand, even while wearing gloves. It provides all the essential features you need in a digital multimeter, from AC/DC voltage and current measurements up to 1000 V and 10 A, to comprehensive capabilities including resistance, capacitance, and frequency checks. It also comes standard with a type K thermocouple so you can measure the temperature of things like your refrigeration systems, heat exchangers, and line sets. This multimeter also supports relative measurements which allows you to zero out a source reading so you can easily measure changes in things like voltage drop or temperature making it ideal for identifying and diagnosing issues.The CAT III 600 V safety rating provides peace of mind for everything from routine checks on electrical equipment and appliances, to checking voltage levels at power outlets or switches, to diagnosing issues with circuits. If you’re looking to build out your toolkit as a DIY enthusiast or early career electrician, look no further than this digital multimeter, a reliable and versatile tool that provides the essential features you need.FeaturesStable measurement accuracy over timeAdvanced measurement functions that is common on more expensive metersAdvanced features such as relative mode to capture deviations in circuits and electronicsRelative mode, minimum and maximum and HzTemperature (comes with K-type thermocouple)CAT III 600 V safety rating: Ensuring your safety when working on electrical systems in common residential, commercial, and industrial settingsOver-voltage indicatorFrequency and temperature measurementTroubleshoot electrical issues in a wide range of systems with voltage, resistance, continuity, capacitance, frequency and temperature functionsResistance, continuity, capacitance: Essential measurement functions for troubleshooting electrical issues in a wide range of systems, allowing you to quickly diagnose and repair problemsDiode test: Allows you to quickly and accurately identify faulty diodes, saving you time and money on repairsAC/DC voltage and current measurements up to 1000 V and 10 A: Allowing you to get accurate readings for a variety of electrical applicationsDiagnose electrical problems such as overloading, short circuits, and faulty wiringInput terminal for AC and DC current measurements to 10 A currentEssential measurement functionsData holdDurable plastics and robust rotary dialLarge easy-to-read display with bright white backlight: Making it easy to read measurements in any lighting condition, even in dimly lit areasApplicationsEntry level frontline techniciansEntry level electriciansEntry level contractors

Downloads

Fluke_Multimeter_Datasheet_16.pdf

pdf
Download

Specifications

Volts
AC: Range: 4 V, resolution: 0.001 V, accuracy: ±(1% + 3) Range: 40 V, resolution: 0.01 V, accuracy: ±(1% + 3) Range: 400 V, resolution: 0.1 V, accuracy: ±(1% + 3) Range: 1000 V, resolution: 1 V, accuracy: ±(1% + 3) Overload protection: 1000 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >60 dB at DC, 50 or 60 Hz DC: Range: 4 V, resolution: 0.001 V, accuracy: ±(0.5% + 3) Range: 40 V, resolution: 0.01 V, accuracy: ±(0.5% + 3) Range: 400 V, resolution: 0.1 V, accuracy: ±(0.5% + 3) Range: 1000 V, resolution: 1 V, accuracy: ±(0.5% + 3) Overload protection: 1000 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >100 dB at dc, 50 or 60 Hz Normal mode rejection ratio: >60 dB at 50 or 60 Hz
Millivolts
AC: Range: 400 mV Resolution: 0.1 mV Accuracy: ±(3% + 3) Overload protection: 400 mV Input impedance (nominal): >1 MΩ, <100 pF Common mode rejection ratio: >80 dB at 50 or 60 Hz DC: Range: 400 mV Resolution: 0.1 mV Accuracy: ±(1% + 10) Overload protection: 400 mV Input impedance (nominal): >1 MΩ, <100 pF Common mode rejection ratio: >80 dB at 50 or 60 Hz
Diode Test*
Range: 2 V Resolution: 0.001 V Accuracy: ±10%*Typically, open circuit test voltage is 2 V and short circuit current is <0.6 mA
Resistance (Ohms)
Range: 400 Ω, resolution: 0.1 Ω, accuracy: ±(0.5% + 3) Range: 4 kΩ, resolution: 0.001 kΩ, accuracy: ±(0.5% + 2) Range: 40 kΩ, resolution: 0.01 kΩ, accuracy: ±(0.5% + 2) Range: 400 kΩ, resolution: 0.1 kΩ, accuracy: ±(0.5% + 2) Range: 4 MΩ, resolution: 0.001 MΩ, accuracy: ±(0.5% + 2) Range: 40 MΩ, resolution: 0.01 MΩ, accuracy: ±(1.5% + 3)
Capacitance*
Range: 40 nF, resolution: 0.01 nF, accuracy: ±(2% + 5) Range: 400 nF, resolution: 0.1 nF, accuracy: ±(2% + 5) Range: 4 µF, resolution: 0.001 µF, accuracy: ±(5% + 5) Range: 40 µF, resolution: 0.01 µF, accuracy: ±(5% + 5) Range: 400 µF, resolution: 0.1 µF, accuracy: ±(5% + 5) Range: 1000 µF, resolution: 0.01 µF, accuracy: ±(5% + 5) *Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range)
Current µA (40 to 400 Hz)
AC: Range: 400 μA, resolution: 0.1 μA, accuracy ±(1.5% + 3) Range: 4000 μA, resolution: 1 μA, accuracy: ±(1.5% + 3) DC: Range: 400 μA, resolution: 0.1 μA, accuracy ±(1.5% + 3) Range: 4000 μA, resolution: 1 μA, accuracy: ±(1.5% + 3)
AC Current (40 to 400 Hz)
mA: Range: 40 mA, resolution: 0.01 mA, accuracy: ±(1.5% + 3) Range: 400 mA, resolution: 0.1 mA, accuracy: ±(1.5% + 3) A: Range: 4 A, resolution: 0.001 A, accuracy: ±(1.5% + 3) Range: 10 A, resolution: 0.01 A, accuracy: ±(1.5% + 3)
Temperature
Range: 122 to 752°F (50 to 400°C) 32 to 122°F (0 to 50°C) -67 to 32°F (-55 to 0°C) Accuracy: 2% ±1°C ±2°C 9% ±2°C
Frequency Hz (10 to 100 kHz)*
Range: 50 Hz, resolution: 0.01 Hz, accuracy: ±(0.1% + 3) Range: 500 Hz, resolution: 0.1 Hz, accuracy: ±(0.1% + 3) Range: 5 kHz, resolution: 0.001 kHz, accuracy: ±(0.1% + 3) Range: 50 kHz, resolution: 0.01 kHz, accuracy: ±(0.1% + 3) Range: 100 kHz, resolution: 0.1 kHz, accuracy: ±(0.1% + 3) *All AC, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified
Duty Cycle*
Range: 1 to 99% Resolution: 0.1% Accuracy: ±(1% typical) *All AC, Hz, and duty cycle are specified from 1% to 100% of range. Inputs below 1% of range are not specified
Maximum Voltage Between any Terminal and Earth Ground
1000 V
Display
LCD 4000 counts, updates 3 seconds Backlight: Yes
Altitude
Operating: 6562' (2000 m) Storage: 39,370' (12,000 m)
Fuse Protection for Current Inputs
440 mA, 1000 V fast fuse, Fluke specified part only 11 A, 1000 V fast fuse, Fluke specified part only
Power
Battery type: 2 x AA, NEDA 15 A, IEC LR6 Battery life: 500 hours minimum
Environmental Conditions
Operating temperature: 32 to 104°F (0 to 40°C) Storage: -22 to 140°F (-30 to 60°C) Operating humidity: ≤90% RH at 50 to 86°F (10 to 30°C); ≤75% RH at 86 to 104°F (30 to 40°C), non-condensing <50°F (<10°C) Operating humidity 40 MΩ range: ≤80% RH at 50 to 86°F (10 to 30°C); ≤70% RH at 86 to 104°F (30 to 40 °C) Temperature coefficient: 0.1 x (specified accuracy) /°C at <64.4 or >82.4°F (<18 or >28°C)
Certifications
IP rating: IP40 Safety: IEC 61010-1, IEC 61010-2-030 CAT III 600 V, Pollution Degree 2 Electromagnetic compatibility: IEC 61326-1: Portable EMC Environment
Dimensions
7.2 x 3.6 x 1.95" (183 x 91 x 49.5 mm)
Weight
1 lbs (455 g)
