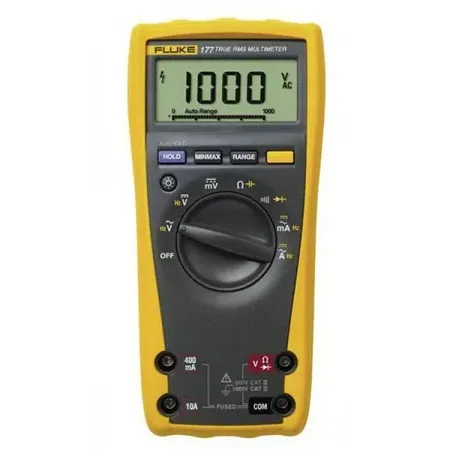

Fluke 177 True RMS Digital Multimeter with backlight

Part Number : 177

Brand :
Fluke

Troubleshoot and repair problems in electrical and electronic systems. Additionally, this meter is ideal for professional technicians due to its precision, reliability, and ease of use, along with a CAT IV 600 V/ CAT III 1000V rating.

View all

KWD 112.990

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 177 OffersFeatures True RMS digital multimeter with the features professional technicians prefer Increases productivity with manual and automatic ranging, display Hold, auto Hold, and Min/Max-average recording Measures AC and DC voltage to 1000 V Delivers accurate True RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements Safety rated CAT III 1000 V, CAT IV 600 V Features digital display with backlight for working in dim lighting Allows closed case calibration through front panel Delivers the right features for electrical maintenance experts With its precision, reliability, and ease of use, this digital multimeter is the preferred solution for professional technicians worldwide. Independently tested for safe use in CAT IV 600 V/CAT III 1000 V environments, this meter includes all the features you need to troubleshoot and repair many problems in electrical and electronic systems. With this instrument users get True RMS voltage and current measurements, 6000-count resolution, manual and automatic ranging, and frequency, capacitance, resistance, continuity, and diode measurements. In addition, it provides 0.09% basic accuracy, a digital display with analog bar graph and backlight. Applications Electrical Electronic systems

Downloads

Fluke_Multimeter_Datasheet_8.pdf

pdf
Download

Specifications

Accuracy
  • ±(0.09% + 2)
  • ±(1.0% + 3)
  • ±(1.5% + 3)
  • ±(0.9% + 1)
  • ±(1.2% + 2)
  • ±(0.1% + 1)
Maximum Resolution
  • 0.1 mV
  • 0.01 mA
  • 0.1 Ω
  • 1 nF
  • 0.01 Hz
Maximum
  • 1000 V
  • 10 A
  • 50 MΩ
  • 10,000 µF
  • 100 kHz
Operating Temperature
14 to 122°F (-10 to 50°C)
Storage Temperature
-22 to 140°F (-30 to 60°C)
Humidity (without condensation)
0 to 90% at 32 to 95°F (0 to 35°C) 0 to 70% at 95 to 122°F (35 to 50°C)
Overvoltage category
EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
Agency approvals
UL, CSA, TÜV listed and VDE Pending
Battery Life
Alkaline approximately 200 hours typical, without backlight
Dimensions
1.7 x 3.5 x 7.3" (43 x 90 x 185 mm)
Weight
14.8 oz (420 g)
