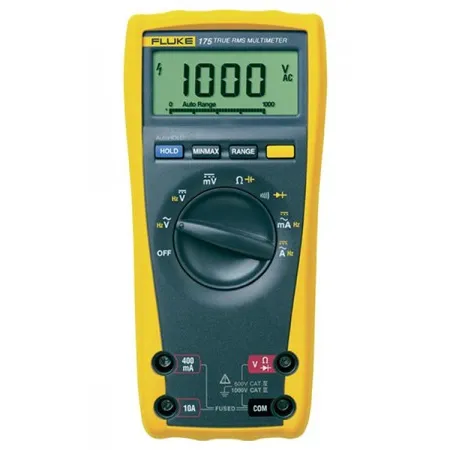

Fluke 175 True RMS Digital Multimeter

Part Number : 175

Brand :
Fluke

Provides all the general-purpose features needed by professional technicians, which makes this True RMS digital multimeter ideal for identifying basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. Additionally, it enables closed-case calibration through the front panel.

View all

KWD 104.200

Quantity
Description
Specifications
Downloads
Related products

Description

Fluke 175 OffersFeatures Provides the baseline multimeter features you need for troubleshooting and repairing electrical and electronic systems Delivers accurate True RMS AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements Increases productivity with manual and automatic ranging, Display Hold, Auto Hold, and Min/Max-average recording Safety rated CAT III 1000 V, CAT IV 600 V Allows closed-case calibration through front panel The baseline for industrial measurements Delivers the baseline general purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events. Safety rated for industrial use All inputs are protected to IEN61010-1 CAT IV 600 V/CAT III 1000 V. UL, CSA, TÜV listed and VDE Pending. Users can rely on this True RMS digital multimeter for accurate, True RMS readings through years of reliable service.

Downloads

Fluke_Multimeter_Datasheet_8.pdf

pdf
Download

Specifications

Accuracy
  • ±(0.15% + 2)
  • ±(1.0% + 3)
  • ±(1.5% + 3)
  • ±(0.9% + 1)
  • ±(1.2% + 2)
  • ±(0.1% + 1)
Maximum Resolution
  • 0.1 mV
  • 0.01 mA
  • 0.1 Ω
  • 1 nF
  • 0.01 Hz
Maximum
  • 1000 V
  • 10 A
  • 50 MΩ
  • 10,000 µF
  • 100 kHz
Operating Temperature
14 to 122°F (-10 to 50°C)
Storage Temperature
-22 to 140°F (-30 to 60°C)
Humidity (without condensation)
0 to 90% at 32 to 95°F (0 to 35°C) 0 to 70% at 95 to 122°F (35 to 50°C)
Overvoltage category
EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV
Agency approvals
UL, CSA, TÜV listed and VDE Pending
Battery Life
Alkaline approximately 200 hours typical, without backlight
Dimensions
1.7 x 3.5 x 7.3" (43 x 90 x 185 mm)
Weight
14.8 oz (420 g)
